5975-01-205-3535
Conduit Outlet
5975012053535 012053535 GUAW26 C11531-12W268 ST41D9-18
An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX. View more Conduit Outlet
May 2023
5
Marketplace 5975-01-205-3535
Request a Quotation from participating marketplace vendors
Related Documents 5975-01-205-3535 2+ Documents (More...)
/fsg-59/fsc-5975/us
GUAW26 CONDUIT 1 EA NS Request Quotation FedMall Updated Every 15 Minutes 5975-01-205-3535 BUY NE FedMall
Updated Every Day 5975-01-205-3535 RQST NE Updated Every Day 5975-01-205-3535 RQST Updated Every Day
Conduit Outlet 5975012053535 012053535 $1 a day Upgrade your Account Upgrade 5975-01-205-3535Conduit
Outlet5975012053535 012053535 GUAW26 C11531 Every Day 5975-01-205-3535 RQST Updated Every Day https/
Restrictions 5975-01-205-3535
5975-01-205-3535 is a Conduit Outlet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5975-01-205-3535
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5975-01-205-3535
- US Air Force (FUGG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- FUCX
Approved Sources 5975-01-205-3535
- Part Number
- Manufacturer
- Status
- GUAW26
- Manufacturer
- 15235 - Crouse-Hinds Co (Obsolete)
- Primary Buy
- Primary Buy
- ST41D9-18
- 04236 - Lockheed Martin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- C11531-12W268
- 81755 - Lockheed Martin Corporation (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5975-01-205-3535
- Characteristic
- Specifications
- FIIG
- Specifications
- A03500
- Conduit Entrance Type [AELR]
- Hub Drilled And Tapped All Entrance
- Conduit Trade Size Accommodated [ACUV]
- 0.750 Inches All Entrance
- Conduit Type Accommodated [AELS]
- Rigid Metallic Thickwall All Entrance
- Cover Opening Diameter [AELJ]
- 3.000 Inches Nominal
- Cover Mounting Method [AELV]
- External Threaded
- Cover Mounting Surface Type [AEMT]
- Flat
- Depth [AEJZ]
- 2.000 Inches Nominal
- Hazardous Locations/Environmental Protection [ABFE]
- Explosion Proof Nec Cl.I, Gp.Cd;Cl.Ii, Gp.Efg;Cl.Iii
- Material [MATT]
- Aluminum, Copper Free Cover
- Material [MATT]
- Iron Cast Body
- Overall Diameter [ADAV]
- 3.500 Inches Nominal

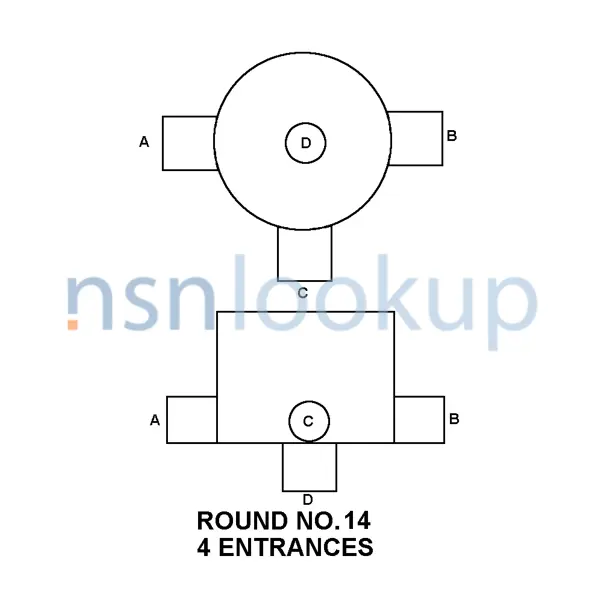

- Style Designator [STYL]
- Round No. 14 4 Entrances
Weapon Systems (WSDC) 5975-01-205-3535
DLA Procurement Analysis 5975-01-205-3535
Management Data 5975-01-205-3535
Similar Supply Items to 5975-01-205-3535
Freight Information 5975-01-205-3535
5975-01-205-3535 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063160. A Sub NMFC of Z. It has a NMFC Description of SWITCH BOXES/ELEC ENCLOSURES. 5975-01-205-3535 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35205 which rates the freight between FCL and LCL. 5975-01-205-3535 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5975-01-205-3535 is not classified as a special type of cargo when transported by water. 5975-01-205-3535 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5975-01-205-3535
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 5975-01-205-3535 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
