5975-01-138-4065
Conduit Outlet
5975011384065 011384065 GRJEA50
An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX. View more Conduit Outlet
May 2023
3
Marketplace 5975-01-138-4065
Request a Quotation from participating marketplace vendors
Related Documents 5975-01-138-4065 1+ Documents (More...)
/fsg-59/fsc-5975/us
BUY NE FedMall Updated Every Day 5975-01-138-4065 RQST NE Updated Every Day 5975-01-138-4065 RQST
Updated Every Day 5975-01-138-4065 RQST NE Related Documents 5975-01-138-4065 1+ Documents ( More...
Restrictions 5975-01-138-4065
5975-01-138-4065 is a Conduit Outlet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5975-01-138-4065
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5975-01-138-4065
- US Navy (N9BG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- KE
Approved Sources 5975-01-138-4065
- Part Number
- Manufacturer
- Status
- GRJEA50
- Manufacturer
- 03743 - Egs Electrical Group (Active)
- Primary Buy
- Primary Buy
Datasheet 5975-01-138-4065
- Characteristic
- Specifications
- FIIG
- Specifications
- A03500

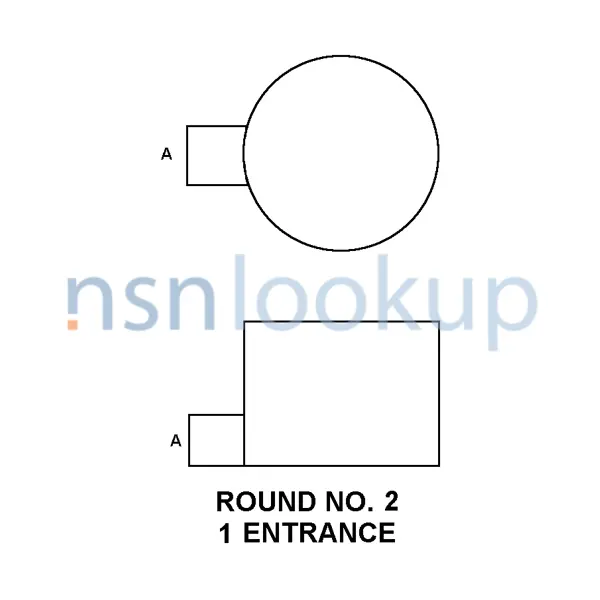

- Style Designator [STYL]
- Round No. 2 1 Entrance
- Overall Diameter [ADAV]
- 2.875 Inches Nominal
- Depth [AEJZ]
- 2.516 Inches Nominal
- Cover Opening Diameter [AELJ]
- 2.250 Inches Nominal
- Conduit Entrance Type [AELR]
- Hub Drilled And Tapped Single Entrance
- Conduit Type Accommodated [AELS]
- Rigid Metallic Thickwall Single Entrance
- Conduit Trade Size Accommodated [ACUV]
- 0.500 Inches Single Entrance
- Cover Mounting Method [AELV]
- External Threaded
- Cover Mounting Surface Type [AEMT]
- Flat
- Cover Quantity [AEMW]
- 1
- Functional Cover Style [AEMX]
- Flush, External Thread Mounted
- Hazardous Locations/Environmental Protection [ABFE]
- Explosion Proof Nec Cl.Ii, Gp.Efg;Cl.Iii
Weapon Systems (WSDC) 5975-01-138-4065
DLA Procurement Analysis 5975-01-138-4065
Management Data 5975-01-138-4065
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5975-01-138-4065
Freight Information 5975-01-138-4065
5975-01-138-4065 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063160. A Sub NMFC of Z. It has a NMFC Description of SWITCH BOXES/ELEC ENCLOSURES. 5975-01-138-4065 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35205 which rates the freight between FCL and LCL. 5975-01-138-4065 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5975-01-138-4065 is not classified as a special type of cargo when transported by water. 5975-01-138-4065 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5975-01-138-4065
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- MIL-DTL-117, Type III, Class B, Style 2, Heavy Duty, Waterproof, Transparent Bag
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5975-01-138-4065 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
