5975-01-089-9802
Conduit Outlet
5975010899802 010899802 X200-M X67 70-207 X200-G
An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX. View more Conduit Outlet
May 2023
6
Marketplace 5975-01-089-9802
Request a Quotation from participating marketplace vendors
Related Documents 5975-01-089-9802 5+ Documents (More...)
X67 CONDUIT OUTLET 9 EA NS Request Quotation FedMall Updated Every 15 Minutes 5975-01-089-9802 BUY NE
/fsg-59/fsc-5975/us 5975-01-089-9802 Conduit Outlet 5975010899802010899802,X200-M X200-MX6770-207X200
/fsg-51/fsc-5133/ca
Conduit Outlet 5975010899802 010899802,X200-M -M X67 70-207 X200-G An item designed to be used
/fsg-51/fsc-5133/ca
Conduit Outlet 5975010899802 010899802,X200-M -M X67 70-207 X200-G An item designed to be used
www.nsnlookup.com /fsg-59/fsc-5950/de 5950-12-180-6743 Audio Frequency Transformer 5950121806743 V80-X67
https//www.nsnlookup.com /fsg-19/fsc-1940/uk 1940-99-744-4726 Pan Head Screw 1940997444726 997444726,X67
X67 A nut, flat on top and bottom having 6 flat sides.
Account Upgrade 5310-01-399-7335Hexagon Plain Nut5310013997335 013997335 17089 17089-1 SKB-429 ITEM X67
Restrictions 5975-01-089-9802
5975-01-089-9802 is a Conduit Outlet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5975-01-089-9802
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5975-01-089-9802
- National Security Agency (DGX1)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- DCX1
- Supplementary Receivers:
- CX
Approved Sources 5975-01-089-9802
- Part Number
- Manufacturer
- Status
- X200-M
- Manufacturer
- 03743 - Egs Electrical Group (Active)
- Primary Buy
- Primary Buy
- X67
- 15235 - Crouse-Hinds Co (Obsolete)
- Secondary Buy
- Secondary Buy
- 70-207
- 72971 - Efcor Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- X67
- 77774 - Crouse-Hinds Lighting (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- X200-G
- 83879 - Egs Electric Co Llc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5975-01-089-9802
- Characteristic
- Specifications
- FIIG
- Specifications
- A03500
- Conduit Entrance Type [AELR]
- Hub Drilled And Tapped All Entrance
- Conduit Trade Size Accommodated [ACUV]
- 2.000 Inches All Entrance
- Conduit Type Accommodated [AELS]
- Rigid Metallic Thickwall All Entrance
- Cover Mounting Hole Quantity [AELW]
- 2
- Cover Mounting Hole Arrangement Style [AELY]
- Line
- Cover Mounting Method [AELV]
- Threaded Fastener
- Cover Mounting Surface Type [AEMT]
- Flat
- Cover Opening Length [AELG]
- 8.812 Inches Nominal
- Cover Opening Width [AELH]
- 3.125 Inches Nominal
- Hazardous Locations/Environmental Protection [ABFE]
- Not Rated
- Material [MATT]
- Iron Malleable Overall
- Overall Depth [ABFY]
- 3.375 Inches Nominal
- Overall Length [ABHP]
- 11.750 Inches Nominal
- Overall Width [ABMK]
- 5.375 Inches Nominal
- Trade Designation [AELU]
- X Series,Form 35
- Wiring Device Gang Quantity [AEMR]
- 1

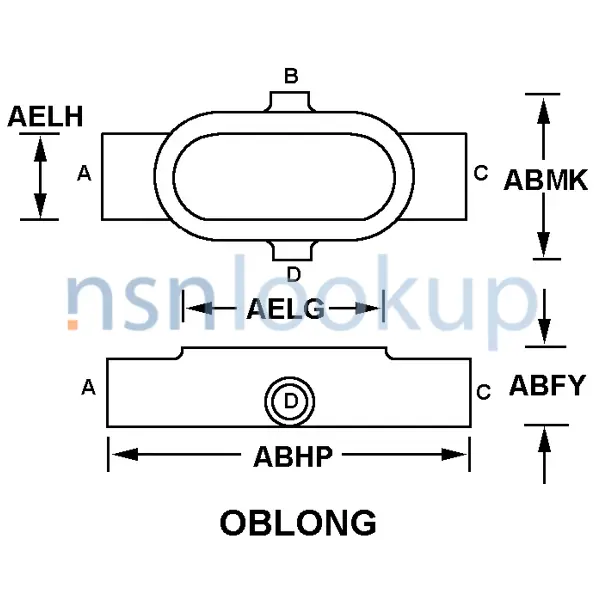

- Style Designator [STYL]
- Oblong
DLA Procurement Analysis 5975-01-089-9802
Management Data 5975-01-089-9802
Similar Supply Items to 5975-01-089-9802
Freight Information 5975-01-089-9802
5975-01-089-9802 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063160. A Sub NMFC of Z. It has a NMFC Description of SWITCH BOXES/ELEC ENCLOSURES. 5975-01-089-9802 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35205 which rates the freight between FCL and LCL. 5975-01-089-9802 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5975-01-089-9802 is not classified as a special type of cargo when transported by water. 5975-01-089-9802 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5975-01-089-9802 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
