5975-00-913-3718
Electrical Entrance Elbow
5975009133718 009133718 Y2
An item of metallic composition cast in the form of an elbow, which is primarily intended to provide for the angular entrance of wires into a building, structure, or enclosure. This item, specifically designed for installation in exposed locations, has two hubs of a specified size to fit the service entrance conduit and may have a third hub for a driven ground connection. It has a cover which makes it tamper-proof and weather-resistant. It may include facilities for pulling electrical conductors but does not have facilities for mounting wiring devices. View more Electrical Entrance Elbow
May 2023
3
Marketplace 5975-00-913-3718
Request a Quotation from participating marketplace vendors
Related Documents 5975-00-913-3718 5+ Documents (More...)
Entrance Elbow 5975009133718 RQST NE Updated Every Day 5977 5977151903205151903205,Y2 Day ,Y2 PENTAX
-6X7 Elbow 5975009133718,Y2 Elbow https//www.nsnlookup.com /fsg-58/fsc-5895/it 5895-15-000-5774 Y2 Axis
5774 https//www.nsnlookup.com /fsg-89/fsc-8920/tr 8920-27-006-5331 Macaroni 8920270065331 270065331,Y2
-27-006-5331 https//www.nsnlookup.com https//www.nsnlookup.com /fsg-58/fsc-5895/it 5895-15-000-5774 Y2
/us 5975-00-913-3718 Electrical Entrance Elbow 5975009133718,Y2 Enamel 8010332034106332034106,F-510-Y2
/20LT /20LT 8010332034106332034106,F-510-Y2/20LT ,F-510- Y2/20LT ,F- 510-Y2/20LT /20LT F-510-Y2/20LT
-510 -Y2 /20LT 510-Y2/20LT /20LT F-510-Y2/20LT ,F-510 ,F- https//www.nsnlookup.com /fsg-80/fsc-8010/es
https//www.nsnlookup.com /fsg-59/fsc-5975/us 5975-00-913-3718 Electrical Entrance Elbow 5975009133718
5977151903205151903205 ,Y2 RQST NE Updated Every Day 5977 5977151903205151903205,Y2 Day ,Y2 PENTAX-6X7
Electrical Entrance Elbow 5975009133718,Y2 PMIC : | EDC: | ADPEC : 5895-15-000-5774 is a Y2 https
Restrictions 5975-00-913-3718
5975-00-913-3718 is a Electrical Entrance Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5975-00-913-3718
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5975-00-913-3718
- National Security Agency (DGX1)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- DCX1
- Supplementary Receivers:
- CX
- Poland (WP01)
- Effective Date:
- 1 Nov 2006
Approved Sources 5975-00-913-3718
- Part Number
- Manufacturer
- Status
- Y2
- Manufacturer
- 75282 - Killark Electric Mfg Co (Active)
- Primary Buy
- Primary Buy
Datasheet 5975-00-913-3718
- Characteristic
- Specifications
- FIIG
- Specifications
- A01800
- Conduit Type Accommodated [AELS]
- Rigid Metallic Thinwall First End
- Conduit Type Accommodated [AELS]
- Rigid Metallic Thinwall Second End
- Deflection Angle [ABEX]
- 90.0 Degrees
- Hazardous Locations/Environmental Protection [ABFE]
- Explosion Proof And Weatherproof-Nema Type 3
- Material [MATT]
- Aluminum

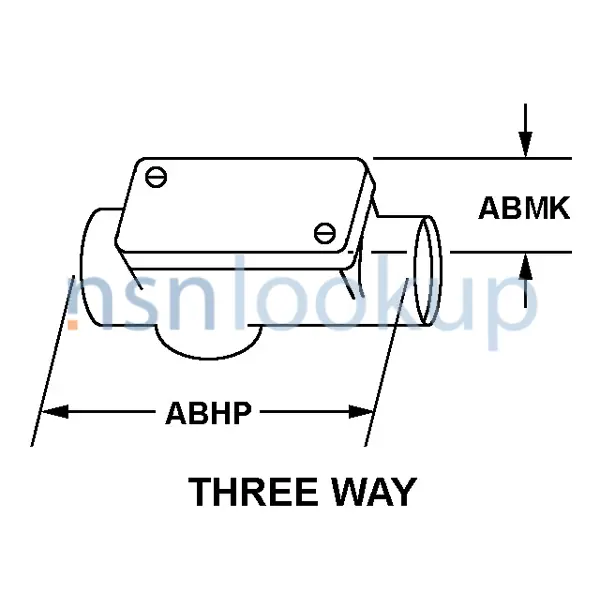

- Style Designator [STYL]
- Three Way
- Item Accommodated Trade Size [CQYR]
- 0.750 Inches Second End
- Item Accommodated Trade Size [CQYR]
- 0.750 Inches First End
DLA Procurement Analysis 5975-00-913-3718
Management Data 5975-00-913-3718
Similar Supply Items to 5975-00-913-3718
Freight Information 5975-00-913-3718
5975-00-913-3718 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156643. A Sub NMFC of X. It has a NMFC Description of PLASTIC/RUBR BENDS ELBOWS/SWEEPS. 5975-00-913-3718 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 5975-00-913-3718 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5975-00-913-3718 is not classified as a special type of cargo when transported by water. 5975-00-913-3718 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5975-00-913-3718
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5975-00-913-3718 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
