5975-00-580-0249
Electrical Entrance Cap
5975005800249 005800249 F966 WC586
An item primarily designed to provide for the entrance of electrical wires into a building, structure, or inclosure and to facilitate their connection to feeders or service conductors. It consists of an insulating block and a metallic housing designed to hold the insulating block and to fit an electrical conduit, conduit fitting, or cable of a specified size. This item is primarily intended for use in exposed, wet, or damp locations and is installed so as to preclude the entrance of rain or debris into the conduit. See also CAP, ELECTRICAL. View more Electrical Entrance Cap
May 2023
5
Marketplace 5975-00-580-0249
Request a Quotation from participating marketplace vendors
Related Documents 5975-00-580-0249 5+ Documents (More...)
Entrance Cap 5975005800249,F966 F966WC586 An item primarily designed to provide for the entrance of
electrical wires into a building Entrance Cap 5975005800249,F966 F966WC586 An item primarily designed
Electrical Entrance Cap 5975005800249,F966 a day Upgrade your Account Upgrade 5975-00-580-0249Electrical
Entrance Cap5975005800249 005800249 F966 SV678GAET-8984-PAF966 Electrical Entrance Cap 5975005800249
F966 STRAINER ELEMENT,SEDIMENT 41 EA NS Request Quotation Updated Every Day 4730-00-434-1771 RQST NE
Electrical Entrance Cap 5975005800249,F966 a day Upgrade your Account Upgrade 5975-00-580-0249Electrical
Electrical Entrance Cap 5975005800249,F966 4730004341771 your Account Upgrade 4730-00-434-1771Sediment
8140-99-966-9019Munitions Shipping And Storage Container8140999669019 999669019 SV678GA ET-8984-PA F966
SV678GAET-8984-PAF966 Electrical Entrance Cap 5975005800249,F966 a day Upgrade your Account Upgrade
Restrictions 5975-00-580-0249
5975-00-580-0249 is a Electrical Entrance Cap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5975-00-580-0249
- US Navy (N9BG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- JN
Approved Sources 5975-00-580-0249
- Part Number
- Manufacturer
- Status
- F966
- Manufacturer
- 15235 - Crouse-Hinds Co (Obsolete)
- Incomplete Reference
- Incomplete Reference
- WC586
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5975-00-580-0249
- Characteristic
- Specifications
- FIIG
- Specifications
- A02000
- Accommodation Hole Inside Diameter [CSPC]
- 3.500 Inches Nominal
- Base Thread Location [CSFT]
- Internal
- Cable/Conduit Type Accommodated [ACUX]
- Standard Thickwall Conduit
- Conduit Trade Size Accommodated [CQTS]
- 3.500
- Conductor Accommodation Quantity [CRLX]
- 5
- Hazardous Locations/Environmental Protection [ABFE]
- Raintight-Nema Type 3R
- Material [MATT]
- Aluminum Body
- Material [MATT]
- Plastic Phenolic Insulator
- Mounting Method [AXGY]
- Thread
- Nominal Thread Size [CQJX]
- 3.500 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 27 Design And 2 Form And Vi Type

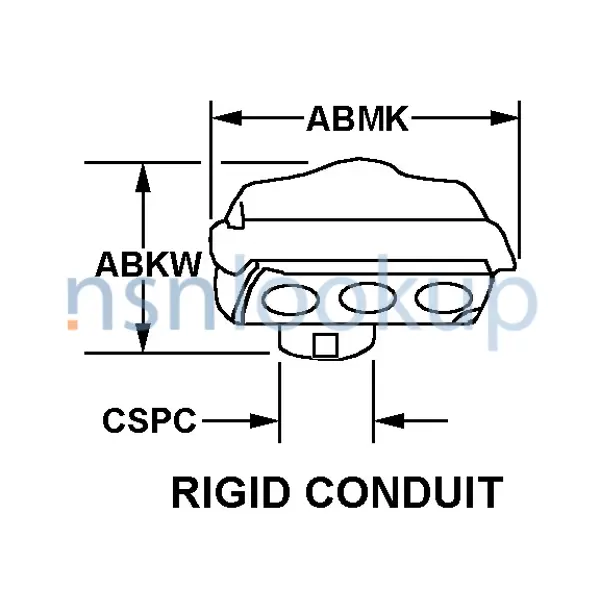

- Style Designator [STYL]
- Rigid Conduit
- Thread Series [BZRR]
- Npt
DLA Procurement Analysis 5975-00-580-0249
Management Data 5975-00-580-0249
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5975-00-580-0249
Freight Information 5975-00-580-0249
5975-00-580-0249 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062010. A Sub NMFC of Z. It has a NMFC Description of FITTINGS CONDUIT NOI. 5975-00-580-0249 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34496 which rates the freight between FCL and LCL. 5975-00-580-0249 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5975-00-580-0249 is not classified as a special type of cargo when transported by water. 5975-00-580-0249 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5975-00-580-0249
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 2lb to 5lb, all dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5975-00-580-0249 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
