5975-00-285-0302
Electrical Cable Protector
5975002850302 002850302 50540-2
An item designed to be interposed between a cable and its support or housing to prevent chafing caused by contraction and expansion due to changes in the ambient temperature or damage or injury from outside sources. Excludes such items as loom, cotton sleeving, rubber blankets, grade clamps and all types of conduit and INSULATION SLEEVING, ELECTRICAL. View more Electrical Cable Protector
May 2023
6
Marketplace 5975-00-285-0302
Request a Quotation from participating marketplace vendors
Related Documents 5975-00-285-0302 1+ Documents (More...)
5975-00-285-0302 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5975/us 5975-00-285-0302
Electrical Cable Protector 5975002850302 RQST NE Updated Every Day 5975-00-285-0302 RQST Updated Every
Restrictions 5975-00-285-0302
5975-00-285-0302 is a Electrical Cable Protector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5975-00-285-0302
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5975-00-285-0302
- US Navy (N9BG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- NIGD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5975-00-285-0302
- Part Number
- Manufacturer
- Status
- 50540-2
- Manufacturer
- 03848 - Arma Div (Obsolete)
- Original Design
- Original Design
Datasheet 5975-00-285-0302
- Characteristic
- Specifications
- FIIG
- Specifications
- A02000
- Accommodation Hole Inside Diameter [CSPC]
- 0.750 Inches Nominal
- Base Outside Diameter [AGQD]
- 1.375 Inches Nominal
- Flexibility [FLEX]
- Flexible
- Material Thickness [ABPX]
- 0.016 Inches Nominal
- Material [MATT]
- Steel Body
- Overall Length [ABHP]
- 4.500 Inches Nominal

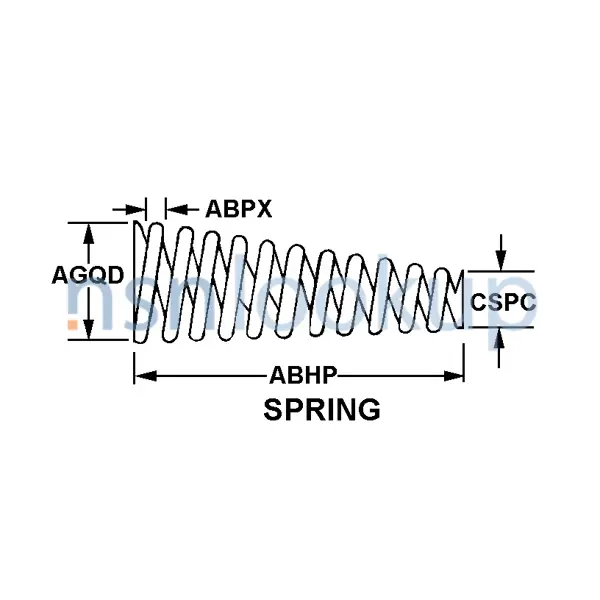

- Style Designator [STYL]
- Spring
- Surface Treatment [SFTT]
- Zinc Body And Chromate Body
DLA Procurement Analysis 5975-00-285-0302
Management Data 5975-00-285-0302
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5975-00-285-0302
Freight Information 5975-00-285-0302
5975-00-285-0302 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 160310. A Sub NMFC of Z. It has a NMFC Description of PROTECTORS CABLE GROUND/GUY WIRE. 5975-00-285-0302 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 79080 which rates the freight between FCL and LCL. 5975-00-285-0302 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5975-00-285-0302 is not classified as a special type of cargo when transported by water. 5975-00-285-0302 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5975-00-285-0302 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Y
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
