5975-00-265-7491
Conduit Outlet
5975002657491 002657491 A-A-50563 GUAC26 AA50563-520ACCCB TYPE V DESIGN 23 STYLE C GUFC26 TYPE V DESIGN 20 STYLE C WC586
An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX. View more Conduit Outlet
August 2023
10
Marketplace 5975-00-265-7491
Request a Quotation from participating marketplace vendors
Related Documents 5975-00-265-7491 5+ Documents (More...)
/fsg-59/fsc-5975/us
WC586 CONDUIT OUTLET 2 EA NS Request Quotation Updated Every 15 Minutes 5975-00-265-7491 BUY NE FedMall
Updated Every 15 Minutes 5975-00-265-7491 BUY NE FedMall Updated Every Day 5975-00-265-7491 RQST NE
/fsg-59/fsc-5975/us
WC586 CONDUIT OUTLET 2 EA NS Request Quotation Updated Every Day 5975-00-265-7495 RQST Updated Every
Conduit Outlet 5975002657491 002657491 FedMall Updated Every Day 5975-00-265-7491 RQST NE https
/fsg-59/fsc-5975/us
LL107 A-A-50563-101ALLLK WC586 LL-400G 70-404 An item designed to be used in a conduit system for the
WC586 CONDUIT OUTLET 2 EA NS Request Quotation Updated Every 15 Minutes 5975-00-816-1984 BUY NE FedMall
/fsg-59/fsc-5975/us
LL37WITH370F AA50563-101ALLLC LL397 WC586 A-A-50563-101XLLC An item designed to be used in a conduit
WC586 CONDUIT OUTLET 2 EA NS Request Quotation Updated Every 15 Minutes 5975-00-655-2775 BUY NE Updated
/fsg-59/fsc-5975/us
5975002960806 002960806 for the purpose of providing LL107 A-A-50563-101ALLLK WC586 LL-400G 70-404 An
LL107 A-A-50563-101ALLLK WC586 LL-400G 70-404 An item designed to be used in a conduit system for the
Restrictions 5975-00-265-7491
5975-00-265-7491 is a Conduit Outlet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5975-00-265-7491
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5975-00-265-7491
- US Army (A918)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A178
- US Air Force (FXGG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- FXCX
- NASA (G100)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Supplementary Collaborators:
- GT
Approved Sources 5975-00-265-7491
- Part Number
- Manufacturer
- Status
- AA50563-520ACCCB
- Manufacturer
- 58536 - Federal Commercial Item Description (Active)
- Definitive Standard
- Definitive Standard
- A-A-50563
- 58536 - Federal Commercial Item Description (Active)
- Incomplete Standard
- Incomplete Standard
- GUAC26
- 15235 - Crouse-Hinds Co (Obsolete)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- TYPE V DESIGN 20 STYLE C
- 58536 - Federal Commercial Item Description (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- WC586
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- TYPE V DESIGN 23 STYLE C
- 58536 - Federal Commercial Item Description (Active)
- Transferred
- Transferred
- GUFC26
- 15235 - Crouse-Hinds Co (Obsolete)
- Transferred
- Transferred
Datasheet 5975-00-265-7491
- Characteristic
- Specifications
- FIIG
- Specifications
- A03500
- Conduit Entrance Type [AELR]
- Hub Drilled And Tapped All Entrance
- Conduit Trade Size Accommodated [ACUV]
- 0.750 Inches All Entrance
- Conduit Type Accommodated [AELS]
- Rigid Metallic Thickwall All Entrance
- Cover Mounting Method [AELV]
- External Threaded
- Cover Opening Diameter [AELJ]
- 3.000 Inches Nominal
- Cover Mounting Surface Type [AEMT]
- Flat
- Cover Quantity [AEMW]
- 1
- Depth [AEJZ]
- 2.000 Inches Nominal
- Functional Cover Style [AEMX]
- Surface External Thread Mounted
- Hazardous Locations/Environmental Protection [ABFE]
- Dust-Ignition Proof And Explosion Proof And Weatherproof
- Nondefinitive Spec/Std Data [ZZZT]
- 20 Design Or V Type
- Overall Diameter [ADAV]
- 3.500 Inches Nominal

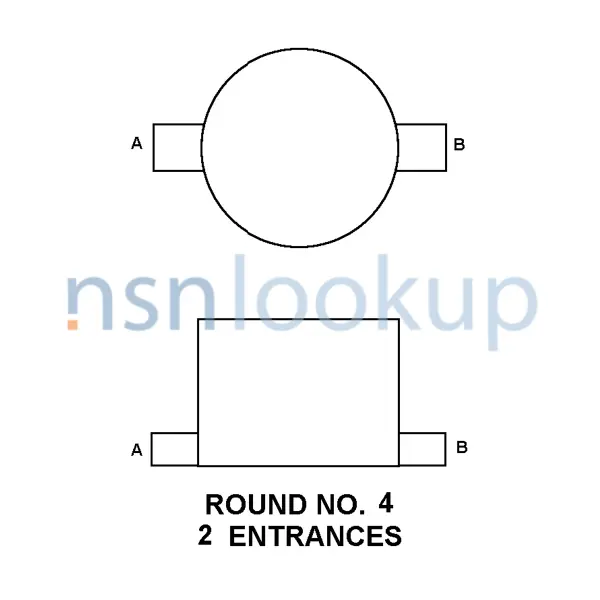

- Style Designator [STYL]
- Round No. 4 2 Entrances
- Trade Designation [AELU]
- Guac Series
Weapon Systems (WSDC) 5975-00-265-7491
DLA Procurement Analysis 5975-00-265-7491
Management Data 5975-00-265-7491
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5975-00-265-7491
Freight Information 5975-00-265-7491
5975-00-265-7491 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063160. A Sub NMFC of Z. It has a NMFC Description of SWITCH BOXES/ELEC ENCLOSURES. 5975-00-265-7491 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35205 which rates the freight between FCL and LCL. 5975-00-265-7491 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5975-00-265-7491 is not classified as a special type of cargo when transported by water. 5975-00-265-7491 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5975-00-265-7491
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 2lb or less, one dimension over 2", but less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 5975-00-265-7491 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- R
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
