5975-00-265-0248
Conduit Outlet
5975002650248 002650248 122-1047-01
An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX. View more Conduit Outlet
January 2023
16
Marketplace 5975-00-265-0248
Request a Quotation from participating marketplace vendors
Related Documents 5975-00-265-0248 1+ Documents (More...)
/fsg-59/fsc-5975/us
(Identification) 1/3 NSN 5975-00-265-0248 (Identification) 2/3 NSN 5975-00-265-0248 (Identification
CONDUIT OUTLET RQST NS Request Quotation Updated Every Day 5975-00-265-0248 RQST NE Updated Every
Restrictions 5975-00-265-0248
5975-00-265-0248 is a Conduit Outlet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5975-00-265-0248
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5975-00-265-0248
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 May 2015
Approved Sources 5975-00-265-0248
- Part Number
- Manufacturer
- Status
- 122-1047-01
- Manufacturer
- 99167 - Hamilton Sundstrand Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5975-00-265-0248
- Characteristic
- Specifications
- FIIG
- Specifications
- A03500
- Conduit Entrance Type [AELR]
- Box Body Drilled A Entrance
- Conduit Entrance Type [AELR]
- Box Body Drilled C Entrance
- Conduit Entrance Type [AELR]
- Hub Drilled B Entrance
- Conduit Trade Size Accommodated [ACUV]
- 0.750 Inches All Entrance
- Conduit Type Accommodated [AELS]
- Rigid Metallic Thinwall All Entrance
- Cover Mounting Hole Arrangement Style [AELY]
- Rectangular
- Cover Mounting Hole Quantity [AELW]
- 4
- Cover Mounting Method [AELV]
- Threaded Fastener
- Cover Mounting Surface Type [AEMT]
- Flat
- Cover Quantity [AEMW]
- 1
- Depth [AEJZ]
- 1.875 Inches Nominal
- Furnished Items [ABFF]
- Cover Mounting Screw
- Functional Cover Style [AEMX]
- Blank
- Hazardous Locations/Environmental Protection [ABFE]
- Explosion Proof
- Material [MATT]
- Aluminum Overall
- Length [ABRY]
- 3.660 Inches Nominal
- Width [ABGL]
- 1.630 Inches Nominal

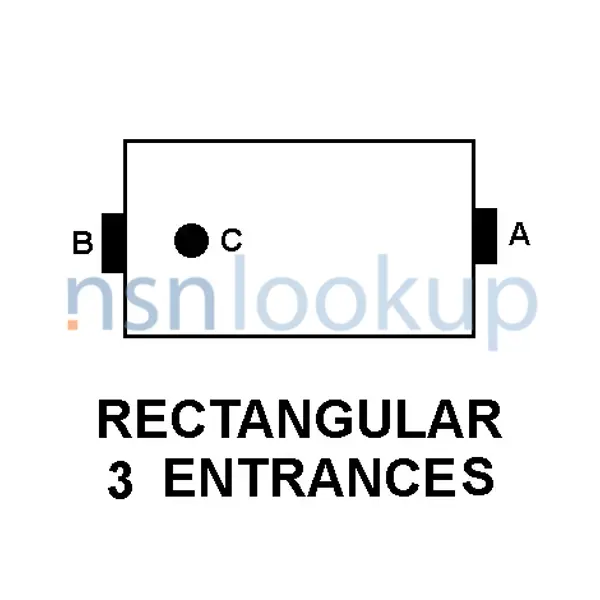

- Style Designator [STYL]
- Rectangular 3 Entrances
Similar Supply Items to 5975-00-265-0248
Freight Information 5975-00-265-0248
5975-00-265-0248 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062010. A Sub NMFC of Z. It has a NMFC Description of FITTINGS CONDUIT NOI. 5975-00-265-0248 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34496 which rates the freight between FCL and LCL. 5975-00-265-0248 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5975-00-265-0248 is not classified as a special type of cargo when transported by water. 5975-00-265-0248 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
