5975-00-245-1675
Conduit Outlet
5975002451675 002451675 FS-2-75 F202FS WC586 FD22 FS22 FS-72 A4701134
An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX. View more Conduit Outlet
November 2023
9
Marketplace 5975-00-245-1675
Request a Quotation from participating marketplace vendors
Related Documents 5975-00-245-1675 5+ Documents (More...)
/fsg-59/fsc-5975/us
FS-2-75 CONDUIT OUTLET 60 EA NS Request Quotation Updated Every Day 5975-00-245-1675 RQST NE Updated
Every Day 5975-00-245-1675 RQST Updated Every Day 5975-00-245-1675 RQST NE Related Documents 5975-00-
enable JavaScript in your web browser . 5930-99-548- 1800Pressure Switch5930995481800 995481800 FD22
https//www.nsnlookup.com /fsg-59/fsc-5975/us 5975-00-245-1675 Conduit Outlet 5975002451675 002451675
to enable JavaScript in your web browser . 5930-99-548- 1800Pressure Switch5930995481800 995481800 FD22
Conduit Outlet 5975002451675 002451675 -00-245-1675 RQST NE Related Documents 5975-00- https//www.nsnlookup.com
-24/K1175 FD22-24 A switch which is actuated by changes in pressure of any gas or liquid or by changes
https//www.nsnlookup.com /fsg-59/fsc-5930/fr 5930-14-391-3599 Pressure Switch 5930143913599143913599 FD22
www.nsnlookup.com /fsg-62/fsc-6240/fr 6240-14-499-4952 Incandescent Lamp 6240144994952144994952 22W-FS22
enable JavaScript in your web browser . 6240-14-499-4952Incandescent Lamp6240144994952 144994952 22W-FS22
Restrictions 5975-00-245-1675
5975-00-245-1675 is a Conduit Outlet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5975-00-245-1675
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5975-00-245-1675
- US Army (A918)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A178
- Supplementary Receivers:
- AJCL
- MOE Rule:
- BGX1
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- BCX1
- US Air Force (FXGG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- FXCX
- NASA (G150)
- Effective Date:
- 1 Apr 1991
- NASA (G760)
- Effective Date:
- 1 Apr 1991
- NASA (G900)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC41)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- NIGD
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5975-00-245-1675
- Part Number
- Manufacturer
- Status
- FS-2-75
- Manufacturer
- 03743 - Egs Electrical Group (Active)
- Primary Buy
- Primary Buy
- FS22
- 15235 - Crouse-Hinds Co (Obsolete)
- Primary Buy
- Primary Buy
- F202FS
- 49367 - Amphenol Corporation (Active)
- Secondary Buy
- Secondary Buy
- FS-2-75
- 83879 - Egs Electric Co Llc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- FS22
- 77774 - Crouse-Hinds Lighting (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- FS-72
- 83879 - Egs Electric Co Llc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- A4701134
- 088A2 - C Systems Llc Dba Craig Systems Dba (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- WC586
- 81348 - Federal Specifications Promulgated (Active)
- Transferred
- Transferred
- FD22
- 15235 - Crouse-Hinds Co (Obsolete)
- Transferred
- Transferred
Datasheet 5975-00-245-1675
- Characteristic
- Specifications
- FIIG
- Specifications
- A03500

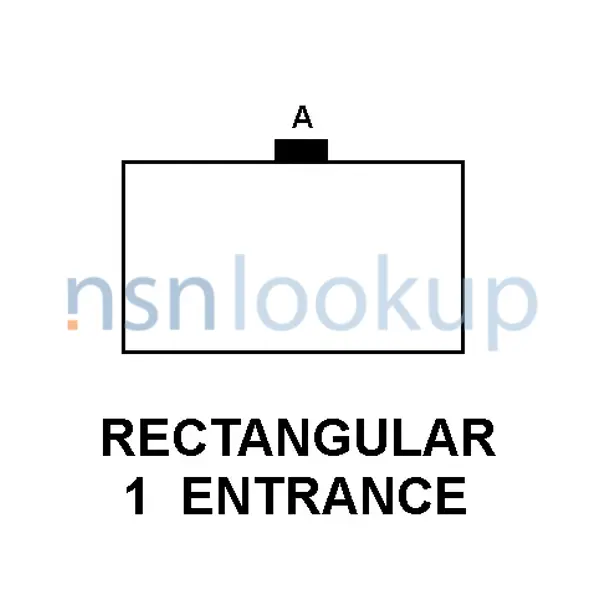

- Conduit Entrance Type [AELR]
- Hub Drilled And Tapped Single Entrance
- Conduit Trade Size Accommodated [ACUV]
- 0.750 Inches Single Entrance
- Conduit Type Accommodated [AELS]
- Rigid Metallic Thickwall Single Entrance
- Cover Mounting Hole Arrangement Style [AELY]
- Rectangular
- Cover Mounting Hole Quantity [AELW]
- 8
- Cover Mounting Method [AELV]
- Threaded Fastener
- Cover Mounting Surface Type [AEMT]
- Ridged
- Depth [AEJZ]
- 1.875 Inches Nominal
- Hazardous Locations/Environmental Protection [ABFE]
- Not Rated
- Multigang Outlet Partitioning Method [AEMS]
- Parallel
- Length [ABRY]
- 4.625 Inches Nominal
- Width [ABGL]
- 4.312 Inches Nominal
- Wiring Device Gang Quantity [AEMR]
- 2
- Trade Designation [AELU]
- Fs Series
Weapon Systems (WSDC) 5975-00-245-1675
DLA Procurement Analysis 5975-00-245-1675
- Last Stock Position:
- 12 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5975-00-245-1675
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5975-00-245-1675
Freight Information 5975-00-245-1675
5975-00-245-1675 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063160. A Sub NMFC of Z. It has a NMFC Description of SWITCH BOXES/ELEC ENCLOSURES. 5975-00-245-1675 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35205 which rates the freight between FCL and LCL. 5975-00-245-1675 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5975-00-245-1675 is not classified as a special type of cargo when transported by water. 5975-00-245-1675 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5975-00-245-1675
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 5
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5975-00-245-1675 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
