5970-01-609-8789

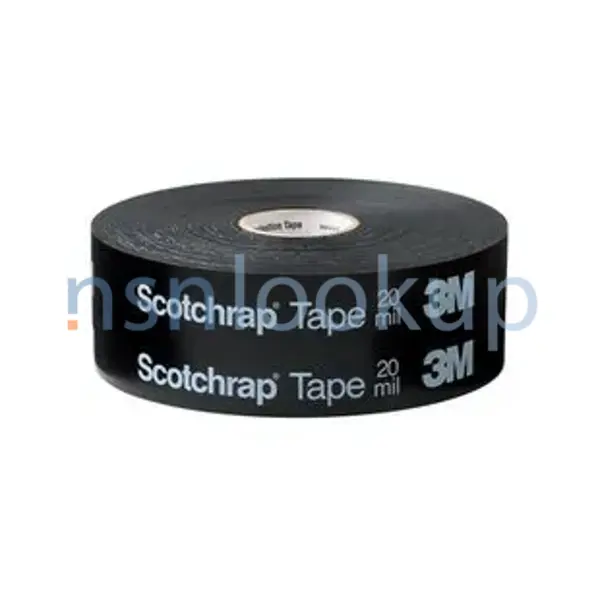

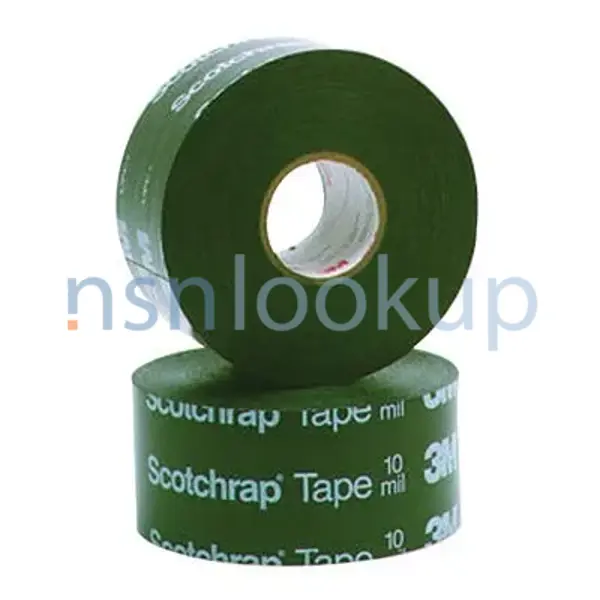

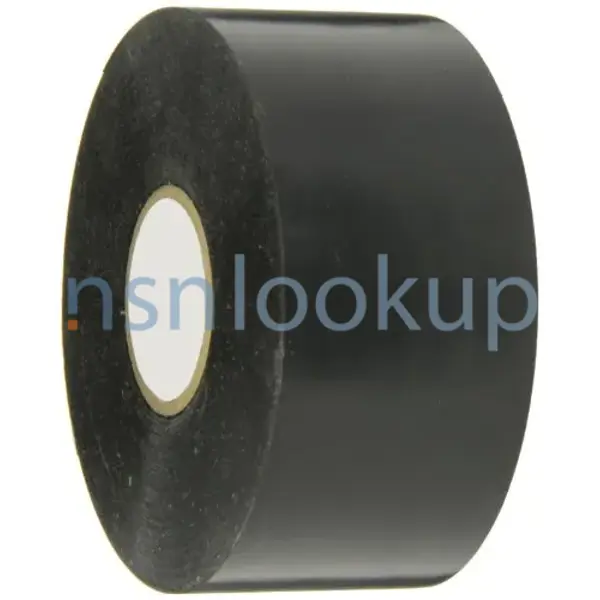

Electrical Insulation Tape
5970016098789 016098789 10638
A narrow strip of woven or processed material less than twelve inches (304.8 mm) in width. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. The item tends to resist any physical change, in contrast to an insulating compound in tape form which will fuse under a specified heat or pressure. It may or may not have adhesive backing. Excludes items not having definite rated electrical characteristics, such as TAPE, ADHESIVE, RUBBER; TAPE, PRESSURE SENSITIVE ADHESIVE; TAPE, SEMI-CONDUCTING, ELECTRICAL; and TAPE, SHIELDING, ELECTRICAL. See also INSULATION CLOTH, ELECTRICAL and INSULATING COMPOUND, ELECTRICAL. View more Electrical Insulation Tape
November 2023
4
Marketplace 5970-01-609-8789
Request a Quotation from participating marketplace vendors
Related Documents 5970-01-609-8789 5+ Documents (More...)
Insulation Tape 5970016098789 fsc-5970/us 5970-01-609-8789 Electrical 3 5970-01-609-8789 Photo 2/3 5970
. 10638 EA NS Request Quotation 10638 GEAR ASSEMBLY 10638 CABLE GEAR ASSEMBLY . 10638 Request Quotation
Restrictions 5970-01-609-8789
5970-01-609-8789 is a Electrical Insulation Tape that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5970-01-609-8789
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-01-609-8789
- US Navy (N9BG)
- Effective Date:
- 1 Aug 2012
- Supplementary Collaborators:
- HD
Approved Sources 5970-01-609-8789
- Part Number
- Manufacturer
- Status
- 10638
- Manufacturer
- 76381 - 3M Company (Active)
- Primary Buy
- Primary Buy
- 10638
- 53387 - 3M Company (Replaced)
- Original Design
- Original Design
Datasheet 5970-01-609-8789
- Characteristic
- Specifications
- FIIG
- Specifications
- A14300
- Adhesive Type [ALGP]
- Pressure Sensitive
- Color [HUES]
- Black Overall
- Dielectric Withstanding Voltage In Volts [AAPB]
- 12000.0
- Environmental Protection [ADZC]
- Corrosion Resistant
- Material Transparency [AJQE]
- Opaque
- Material [MATT]
- Plastic Polyvinyl Chloride Basic
- Material [MATT]
- Plastic Polyvinyl Chloride Background
- Nominal Length [AKGG]
- 100.0 Feet
- Nominal Overall Thickness [CRZG]
- 10.00 Millimeters
- Nominal Width [AKGF]
- 2.00 Inches
- Part Name Assigned By Controlling Agency [CXCY]
- All-Weather Corrosion Protection Tape
- Special Test Features [SPCL]
- Adhesive Material = Pressure Sensitive Rubber, Backing Material = Polyvinyl Chloride
- Supplementary Features [SUPP]
- Tape Grade = Premium
- Temp Rating [AZKQ]
- 80.0 Deg Celsius Maximum
Weapon Systems (WSDC) 5970-01-609-8789
DLA Procurement Analysis 5970-01-609-8789
- Last Stock Position:
- 144 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5970-01-609-8789
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- BX
- Subscribe
- 1
- BX
- Oct 2021
- Department of the Navy (DN)
- BX
- Subscribe
- 1
- BX
- Oct 2020
- Defense Logistics Agency (DS)
- BX
- Subscribe
- 1
- BX
- Oct 2019
- Department of the Navy (DN)
- BX
- Subscribe
- 1
- BX
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- K
- U/I Contains 24 Ea
- 00000000024EA
- K
- Defense Logistics Agency (DS)
- I
- K
- U/I Contains 24 Ea
- 00000000024EA
- K
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5970-01-609-8789
Freight Information 5970-01-609-8789
5970-01-609-8789 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 049680. A Sub NMFC of X. It has a NMFC Description of CLOTH R TAPE INSULATING. 5970-01-609-8789 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 28405 which rates the freight between FCL and LCL. 5970-01-609-8789 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 663 for ocean manifesting and military sealift. 5970-01-609-8789 is not classified as a special type of cargo when transported by water. 5970-01-609-8789 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
