5970-01-532-6157

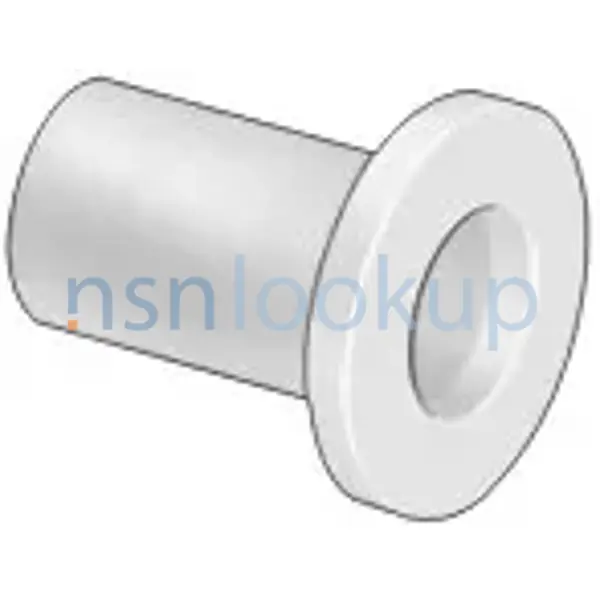

Bushing Insulator
5970015326157 015326157 91145A141
An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL. View more Bushing Insulator
November 2023
1
Marketplace 5970-01-532-6157
Request a Quotation from participating marketplace vendors
Related Documents 5970-01-532-6157 2+ Documents (More...)
BUY NE FedMall Updated Every Day 91145A141 RQST NE Updated Every Day 5970-01-532-6157 RQST NE Updated
Every Day 5970-01-532-6157 RQST Updated Every Day 5970-01-532-6157 RQST NE Related Documents 5970-01
Restrictions 5970-01-532-6157
5970-01-532-6157 is a Bushing Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5970-01-532-6157
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-01-532-6157
- US Navy (N9BG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
Approved Sources 5970-01-532-6157
- Part Number
- Manufacturer
- Status
- 91145A141
- Manufacturer
- 39428 - Mcmaster-Carr Supply Co (Active)
- Primary Buy
- Primary Buy
Datasheet 5970-01-532-6157
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0
- Style Designator [STYL]
- Shoulder
- Inside Diameter [AARX]
- 0.140 Inches Nominal
- Outside Diameter [ABKV]
- 0.290 Inches Nominal
- Overall Height [ABKW]
- 0.272 Inches Nominal
- Shank Outside Diameter [AGGZ]
- 0.170 Inches Nominal
- Shank Height [AQZQ]
- 0.125 Inches Nominal
- Material And Location [MTLC]
- Overall Plastic, Nylon
- Identification Code Color [AAPC]
- Natural
- Special Features [FEAT]
- For Size 6 Screw
- End Item Identification [AGAV]
- Recording Subsystem, Sdv Mk8 Mod1 (New Build); Forklift
- Part Name Assigned By Controlling Agency [CXCY]
- Shoulder Insulator Washer
Weapon Systems (WSDC) 5970-01-532-6157
DLA Procurement Analysis 5970-01-532-6157
- Last Stock Position:
- 300 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5970-01-532-6157
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- PG
- Subscribe
- 1
- PG
- Oct 2021
- Department of the Navy (DN)
- PG
- Subscribe
- 1
- PG
- Oct 2020
- Defense Logistics Agency (DS)
- PG
- Subscribe
- 1
- PG
- Apr 2020
- Department of the Navy (DN)
- PG
- Subscribe
- 1
- PG
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- K
- U/I Contains 100 Ea
- 00000000100EA
- K
- Defense Logistics Agency (DS)
- I
- K
- U/I Contains 100 Ea
- 00000000100EA
- K
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5970-01-532-6157
Freight Information 5970-01-532-6157
5970-01-532-6157 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 103300. A Sub NMFC of Z. It has a NMFC Description of INSULATING MATERIAL NOI. 5970-01-532-6157 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53360 which rates the freight between FCL and LCL. 5970-01-532-6157 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5970-01-532-6157 is not classified as a special type of cargo when transported by water. 5970-01-532-6157 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5970-01-532-6157
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5970-01-532-6157 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
