5970-01-511-8760

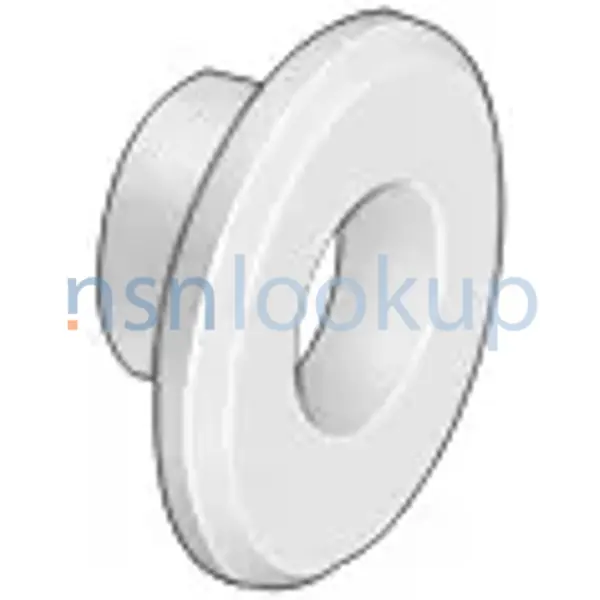

Bushing Insulator
5970015118760 015118760 93920A150
An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL. View more Bushing Insulator
May 2023
1
Marketplace 5970-01-511-8760
Request a Quotation from participating marketplace vendors
Related Documents 5970-01-511-8760 2+ Documents (More...)
/fsg-59/fsc-5970/us 5970-01-511-8760 Bushing Insulator 5970015118760015118760 Updated Every Day 5970
-01-511-8760 RQST NE Updated Every Day 5970-01-511-8760 RQST Updated Every Day /fsg-59/fsc-5970/us 5970
Restrictions 5970-01-511-8760
5970-01-511-8760 is a Bushing Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5970-01-511-8760
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-01-511-8760
- US Air Force (FBB5)
- Effective Date:
- 1 Aug 2003
Approved Sources 5970-01-511-8760
- Part Number
- Manufacturer
- Status
- 93920A150
- Manufacturer
- 3A054 - Mcmaster-Carr Supply Co (Active)
- Primary Buy
- Primary Buy
Datasheet 5970-01-511-8760
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0
- Style Designator [STYL]
- Shoulder
- Inside Diameter [AARX]
- 0.194 Inches Nominal
- Outside Diameter [ABKV]
- 0.375 Inches Nominal
- Overall Height [ABKW]
- 0.405 Inches Nominal
- Shank Outside Diameter [AGGZ]
- 0.312 Inches Nominal
- Shank Height [AQZQ]
- 0.030 Inches Nominal
- End Configuration [BSPB]
- One End Squared, One End Rounded
- Material And Location [MTLC]
- Overall Fiber, Vulcanized
- Identification Code Color [AAPC]
- Black
- Dielectric Material Voltage Rating Per Unit Thickness [UKBG]
- 175.0 Volts Per Mil /0.001 Inch/
- Special Features [FEAT]
- Maximum Temperature 230 Fahrenheit; Manufacture States This Item Is A Fair Electrical Insulator With Good Mechanical Properties;Manufacture Packagequantity Is 100 Per. Package
- End Item Identification [AGAV]
- Use On 4920-01-486-1575
- Part Name Assigned By Controlling Agency [CXCY]
- Insulating Washer, Shoulder
Management Data 5970-01-511-8760
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Aug 2005
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
Air Force
- Budget:
- S
- 57X3010 - Aircraft Replenishment Spares
- Aggregation Code:
- BA
- C-17 PROGRAM
- Price Validation Code:
- E
- The current standard price is an estimated price.
Estimated Price challenges are allowed but follow procedures in para 60.b. (3) of section L of this manual.
This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 5970-01-511-8760
Freight Information 5970-01-511-8760
5970-01-511-8760 has freight characteristics.. 5970-01-511-8760 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
