5970-01-259-2648
Standoff Insulator
5970012592648 012592648 5204675
An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware. View more Standoff Insulator
November 2023
7
Marketplace 5970-01-259-2648
Request a Quotation from participating marketplace vendors
Related Documents 5970-01-259-2648 1+ Documents (More...)
5970-01-259-2648 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-01-259-2648
Day 5970-01-259-2648 RQST NE Related Documents 5970-01-259-2648 1+ Documents ( More... ) https//www.nsnlookup.com
Restrictions 5970-01-259-2648
5970-01-259-2648 is a Standoff Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5970-01-259-2648
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-01-259-2648
- US Navy (N9BG)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Oct 2003
- Australia (ZA01)
- Effective Date:
- 1 Jul 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Nov 2009
Approved Sources 5970-01-259-2648
- Part Number
- Manufacturer
- Status
- 5204675
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy

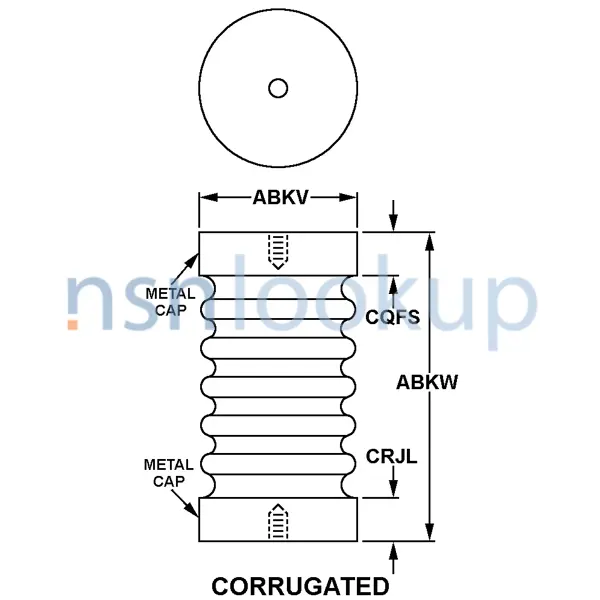

Datasheet 5970-01-259-2648
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0
- First Cap Height [CQFS]
- 0.280 Inches Nominal
- Mounting Facility Type And Quantity [AXHR]
- 2 Threaded Hole
- Outside Diameter [ABKV]
- 1.250 Inches Nominal
- Material And Location [MTLC]
- Overall Plastic, Acetal, L-P-392, Type 1, Class 1
- Second Cap Height [CRJL]
- 0.280 Inches Nominal
- Overall Height [ABKW]
- 1.500 Inches Nominal
- Style Designator [STYL]
- Corrugated
Weapon Systems (WSDC) 5970-01-259-2648
DLA Procurement Analysis 5970-01-259-2648
- Last Stock Position:
- 17 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5970-01-259-2648
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5970-01-259-2648
Freight Information 5970-01-259-2648
5970-01-259-2648 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 103300. A Sub NMFC of Z. It has a NMFC Description of INSULATING MATERIAL NOI. 5970-01-259-2648 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53360 which rates the freight between FCL and LCL. 5970-01-259-2648 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5970-01-259-2648 is not classified as a special type of cargo when transported by water. 5970-01-259-2648 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5970-01-259-2648
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Waterproof Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 5970-01-259-2648 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
