5970-01-227-4013
Plate Insulator
5970012274013 012274013 3642564-1 3642564
An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD. View more Plate Insulator
November 2023
10
Marketplace 5970-01-227-4013
Request a Quotation from participating marketplace vendors
Related Documents 5970-01-227-4013 2+ Documents (More...)
RQST NE Updated Every Day 5970-01-227-4013 RQST Updated Every Day 5970-01-227-4013 RQST NE Related Documents
5970-01-227-4013 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-01-227-4013
https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-01-163-8767 Plate Insulator 5970011638767011638767 3642564
Day 5970-01-163-8767 RQST NE Related Documents https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-01-227-4013
Restrictions 5970-01-227-4013
5970-01-227-4013 is a Plate Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5970-01-227-4013
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-01-227-4013
- US Navy (N9BG)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTKE
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5970-01-227-4013
- Part Number
- Manufacturer
- Status
- 3642564-1
- Manufacturer
- 82577 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- 3642564-1
- 56132 - Center For Acquisition Management (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 3642564
- 82577 - Raytheon Company (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5970-01-227-4013
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0

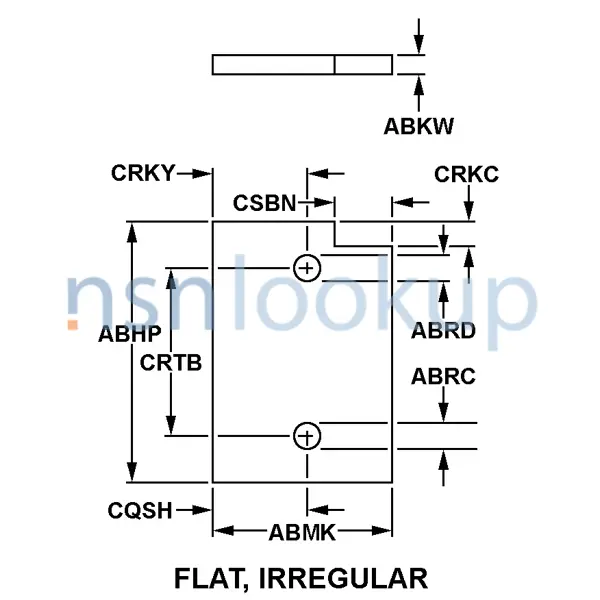

- Style Designator [STYL]
- Flat, Irregular
- Overall Length [ABHP]
- 2.345 Inches Nominal
- Overall Height [ABKW]
- 0.010 Inches Nominal
- Overall Width [ABMK]
- 2.270 Inches Nominal
- First Hole Diameter [ABRC]
- 0.270 Inches Nominal
- Second Hole Diameter [ABRD]
- 0.270 Inches Nominal
- First Hole Spacing [CQSH]
- 0.190 Inches Nominal
- Corner Cut Length [CRKC]
- 2.010 Inches Nominal
- Second Hole Spacing [CRKY]
- 0.370 Inches Nominal
- Third Hole Spacing [CRTB]
- 1.685 Inches Nominal
- Corner Cut Width [CSBN]
- 0.270 Inches Nominal
- Material And Location [MTLC]
- Overall Plastic,Laminate,Metal-Clad,Mil-P-55617,Type Tl-Gi-0100-C-0/0,B1-Canceled
- Special Features [FEAT]
- Angle On Cut Out Rounded 0.030 In.
