5970-01-158-0905
Bushing Insulator
5970011580905 011580905 C-113788-3 113788-3
An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL. View more Bushing Insulator
November 2023
4
Marketplace 5970-01-158-0905
Request a Quotation from participating marketplace vendors
Related Documents 5970-01-158-0905 2+ Documents (More...)
NE FedMall Updated Every Day 5970-01-158-0905 RQST NE Updated Every Day 5970-01-158-0905 RQST Updated
Every Day 5970-01-158-0905 RQST NE Related Documents 5970-01-158-0905 2+ Documents ( More... ) https
An insulator designed to fit into and https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-01-158-0905
Bushing Insulator 5970011580905 011580905 $1 a day Upgrade your Account Upgrade 5970-01-158-0905Bushing
Restrictions 5970-01-158-0905
5970-01-158-0905 is a Bushing Insulator that is specifically designed to be or selected as being nuclear hard. In addition it has other critical features such as tolerance, fit restrictions or application.Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5970-01-158-0905
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-01-158-0905
- US Navy (N9BG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTHX
Approved Sources 5970-01-158-0905
- Part Number
- Manufacturer
- Status
- C-113788-3
- Manufacturer
- 94271 - Lockheed Martin Corp (Active)
- Incomplete Reference
- Incomplete Reference
- 113788-3
- 94271 - Lockheed Martin Corp (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5970-01-158-0905
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0
- First Counterbore Depth [CFNT]
- 0.171 Inches Minimum And 0.186 Inches Maximum
- First Counterbore Diameter [BXCZ]
- 1.625 Inches Nominal
- First Slot Width [CQDN]
- 0.750 Inches Nominal
- Identification Code Color [AAPC]
- Natural
- Outside Diameter [ABKV]
- 1.750 Inches Nominal
- Material And Location [MTLC]
- Overall Nylon,Glass Fibre,L-P-395,Type 1,Grade A,Class 1
- Reference Number Differentiating Characteristics [ZZZY]
- As Differentiated By Special Features
- Special Features [FEAT]
- 125 Microinch Surfaces; Special Requirements For Nuclear Propulsion Plant Equipment Contained In Individual Repair Parts Ordering Data Instrumentation Control No. C22uddb03a,Line No. 2561
- Overall Height [ABKW]
- 0.312 Inches Minimum And 0.327 Inches Maximum
- Top Hole Diameter [BQCT]
- 1.031 Inches Minimum And 1.041 Inches Maximum

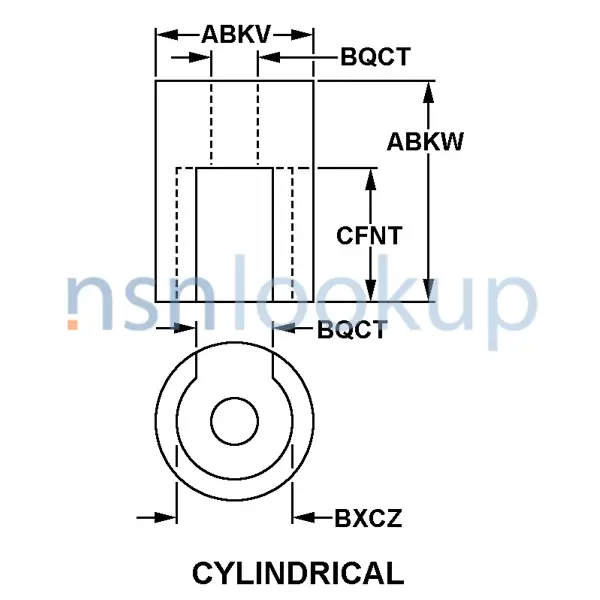

- Style Designator [STYL]
- Cylindrical
Weapon Systems (WSDC) 5970-01-158-0905
DLA Procurement Analysis 5970-01-158-0905
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5970-01-158-0905
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5970-01-158-0905
Freight Information 5970-01-158-0905
5970-01-158-0905 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 103300. A Sub NMFC of Z. It has a NMFC Description of INSULATING MATERIAL NOI. 5970-01-158-0905 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53360 which rates the freight between FCL and LCL. 5970-01-158-0905 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5970-01-158-0905 is not classified as a special type of cargo when transported by water. 5970-01-158-0905 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5970-01-158-0905 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
