5970-01-072-0645
Plate Insulator
5970010720645 010720645 008-011972
An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD. View more Plate Insulator
May 2023
3
Marketplace 5970-01-072-0645
Request a Quotation from participating marketplace vendors
Related Documents 5970-01-072-0645 2+ Documents (More...)
Updated Every Day 5970-01-072-0645 RQST NE Related Documents 5970-01-072-0645 2+ Documents ( More...
BUY NE FedMall Updated Every Day 5970-01-072-0645 RQST NE Updated Every Day 5970-01-072-0645 RQST Updated
Plate Insulator 5970010720645 010720645 $1 a day Upgrade your Account Upgrade 5970-01-072-0645Plate
Insulator5970010720645 010720645 008-011972 www.nsnlookup.com /fsg-59/fsc-5970/us 5970-01-072-0645 Plate
Restrictions 5970-01-072-0645
5970-01-072-0645 is a Plate Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5970-01-072-0645
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-01-072-0645
- US Air Force (FGGG)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- FGCX
Approved Sources 5970-01-072-0645
- Part Number
- Manufacturer
- Status
- 008-011972
- Manufacturer
- 26916 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5970-01-072-0645
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0
- First Slot Depth [CRYZ]
- 0.380 Inches Nominal
- First Slot Width [CQDN]
- 0.380 Inches Nominal
- Material And Location [MTLC]
- Overall Plastic, L-P-509, Type 4, Grade G-11
- Overall Height [ABKW]
- 0.008 Inches Nominal
- Overall Length [ABHP]
- 8.500 Inches Nominal
- Overall Width [ABMK]
- 5.880 Inches Nominal
- Special Features [FEAT]
- All Corners Are Cut On Angles

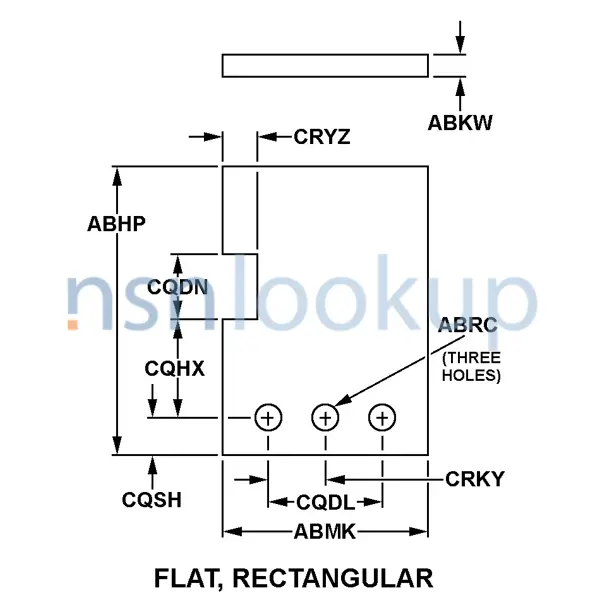

- Style Designator [STYL]
- Flat, Rectangular
DLA Procurement Analysis 5970-01-072-0645
Management Data 5970-01-072-0645
Similar Supply Items to 5970-01-072-0645
Freight Information 5970-01-072-0645
5970-01-072-0645 has freight characteristics managed by the General Services Administration (GSA).It has a National Motor Freight Classification (NMFC) of 103300. A Sub NMFC of Z. It has a NMFC Description of INSULATING MATERIAL NOI. 5970-01-072-0645 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53360 which rates the freight between FCL and LCL. 5970-01-072-0645 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5970-01-072-0645 is not classified as a special type of cargo when transported by water. 5970-01-072-0645 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5970-01-072-0645 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
