5970-01-020-3415
Special Purpose Electrical Insulation Sleeving
5970010203415 010203415 T14-23FR 603017 54203-2
A rigid or flexible tubing having other than uniform fabricated shapes or forms. It is specifically designed to prevent any undesirable flow of current between conductors or between conductors and other objects. Includes shrinkable type items. Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; and INSULATION SLEEVING, ELECTRICAL. View more Special Purpose Electrical Insulation Sleeving
November 2023
9
Marketplace 5970-01-020-3415
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5970-01-020-3415 5+ Documents (More...)
Day 5970-01-020-3415 RQST Updated Every Day 5970-01-020-3415 RQST NE Related Documents 5970-01-020-3415
5970- 5970010203415010203415,T14-23FR,603017 .. ) https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-
a day Upgrade your Account Upgrade 2520-00-499-8836Vehicular Shifter Fork2520004998836 004998836 603017
5970010203415 010203415,T14-23FR,603017 .. ) https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-
5970010203415 010203415,T14-23FR,603017 Upgrade 5970-01-020-3415Special Purpose Electrical Insulation
Sleeving5970010203415 010203415 T14-23FR 603017 .. ) https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970
IL ITEM 042 SC/A1/54203/2 IL/042419/IL/91153/002 ITEM 042419/IL/91153/002/042998/4/82834/009BS4109
5970010203415 010203415,T14-23FR,603017 https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970 https
IL ITEM 019 SC/A1/54203/2 IL/019 419/IL/91153/002 ITEM 019 3017850 28701-0110-0092 CECC 00200 CECC90109
IL ITEM 019SC/A1/54203/2 IL/019 https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-01-020-3415 5970010203415
Restrictions 5970-01-020-3415
5970-01-020-3415 is a Special Purpose Electrical Insulation Sleeving that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5970-01-020-3415
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-01-020-3415
- US Coast Guard (C911)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- C006
- US Air Force (FXGG)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- FXCX
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2004
- Supplementary Collaborators:
- GT
Approved Sources 5970-01-020-3415
- Part Number
- Manufacturer
- Status
- T14-23FR
- Manufacturer
- 06090 - Te Connectivity Corporation (Active)
- Primary Buy
- Primary Buy
- 603017
- 00779 - Te Connectivity Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 54203-2
- 00779 - Te Connectivity Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- T14-23FR
- 50015 - Sigmaform Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5970-01-020-3415
- Characteristic
- Specifications
- FIIG
- Specifications
- A22500
- Color [HUES]
- Black
- Dielectric Material Voltage Rating Per Unit Thickness [UKBG]
- 275.0 Volts Per Mil /0.001 Inch/
- Environmental Protection [ADZC]
- Corrosion Resistant And Oil Resistant And Ozone Resistant And Solvent Resistant And Water Resistant
- First Branch Inside Diameter [AFZV]
- 0.180 Inches Maximum After Unrestricted Recovery
- First Branch Inside Diameter [AFZV]
- 0.500 Inches Minimum As Supplied
- First Branch Wall Thickness [AGAC]
- 0.090 Inches Nominal After Unrestricted Recovery
- Flexibility [FLEX]
- Flexible
- Material [MATT]
- Plastic Polyolefin
- Minimum Tensile Strength [CQBC]
- 1000 Pounds Per Square Inch
- Main Body Inside Diameter [AFZU]
- 1.200 Inches Minimum As Supplied
- Main Body Overall Length [AGAH]
- 3.470 Inches Nominal As Supplied
- Main Body Inside Diameter [AFZU]
- 0.690 Inches Maximum After Unrestricted Recovery
- Main Body Wall Thickness [AGAB]
- 0.090 Inches Nominal After Unrestricted Recovery
- Second Branch Wall Thickness [AGAD]
- 0.090 Inches Nominal After Unrestricted Recovery
- Second Branch Inside Diameter [AFZW]
- 0.180 Inches Maximum After Unrestricted Recovery
- Second Branch Inside Diameter [AFZW]
- 0.500 Inches Minimum As Supplied
- Special Features [FEAT]
- Supplied With Sealant

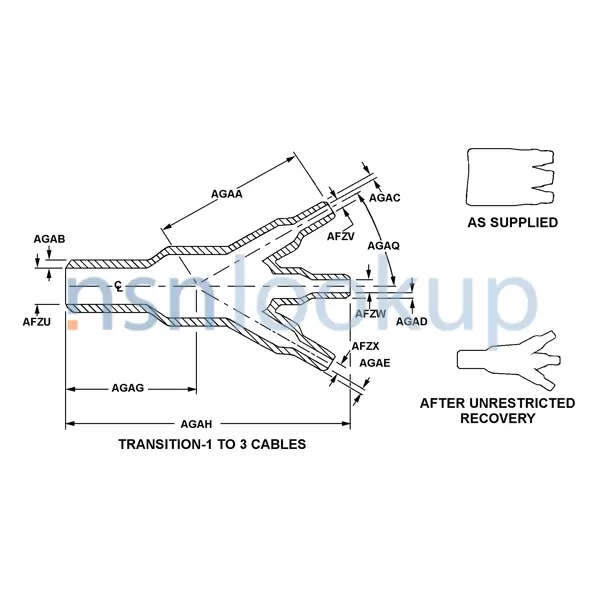

- Style Designator [STYL]
- Transition-1 To 3 Cables
- Temp Rating [ABJH]
- -65.0 Deg Celsius And 136.0 Deg Celsius
- Third Branch Inside Diameter [AFZX]
- 0.180 Inches Maximum After Unrestricted Recovery
- Third Branch Inside Diameter [AFZX]
- 0.500 Inches Minimum As Supplied
- Third Branch Wall Thickness [AGAE]
- 0.090 Inches Nominal After Unrestricted Recovery
