5970-00-913-0724
Plate Insulator
5970009130724 009130724 260707
An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD. View more Plate Insulator
January 2023
12
Marketplace 5970-00-913-0724
Request a Quotation from participating marketplace vendors
Related Documents 5970-00-913-0724 4+ Documents (More...)
5970-00-913-0724 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-00-913-0724
Day 5970-00-913-0724 RQST NE Related Documents 5970-00-913-0724 4+ Documents ( More... ) https//www.nsnlookup.com
Plate Insulator 5970009130724 009130724 for $1 a day Upgrade your Account Upgrade 5970-00-913-0724Plate
Insulator5970009130724 009130724 260707 day Upgrade your Account Upgrade 3960-01-413-9233Guide Shoe3960014139233
Plate Insulator 5970009130724 009130724 for $1 a day Upgrade your Account Upgrade 5970-00-913-0724Plate
Insulator5970009130724 009130724 260707 Guide Shoe 3960014139233014139233 day Upgrade your Account Upgrade
014139233 Upgrade your Account Upgrade 3960-01-413-9233Guide Shoe3960014139233 014139233 CB053-40010-1 260707
CB053-40001 RNCC 3 RNVC 2 DAC 5 260707 29056 - Woodard https//www.nsnlookup.com /fsg-59/fsc-5998/us
Restrictions 5970-00-913-0724
5970-00-913-0724 is a Plate Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5970-00-913-0724
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-00-913-0724
- Israel (YD01)
- Effective Date:
- 1 Sep 2016
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5970-00-913-0724
- Part Number
- Manufacturer
- Status
- 260707
- Manufacturer
- 3B150 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- 260707
- 49956 - Raytheon Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5970-00-913-0724
- Characteristic
- Specifications
- FIIG
- Specifications

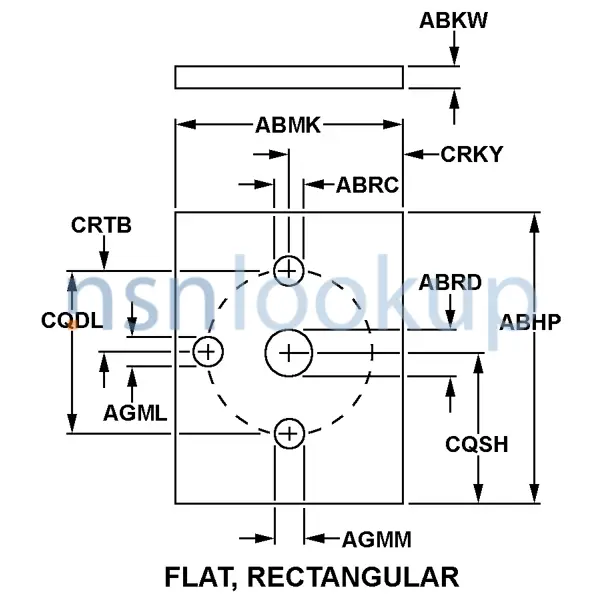

- A007A0
- Style Designator [STYL]
- Flat, Rectangular
- Overall Length [ABHP]
- 1.250 Inches Nominal
- Overall Height [ABKW]
- 0.002 Inches Nominal
- Overall Width [ABMK]
- 1.250 Inches Nominal
- First Hole Diameter [ABRC]
- 0.156 Inches Nominal
- Second Hole Diameter [ABRD]
- 0.200 Inches Nominal
- Third Hole Diameter [AGML]
- 0.136 Inches Nominal
- Fourth Hole Diameter [AGMM]
- 0.156 Inches Nominal
- Fourth Hole Spacing [CQDL]
- 0.690 Inches Nominal
- First Hole Spacing [CQSH]
- 0.625 Inches Nominal
- Second Hole Spacing [CRKY]
- 0.625 Inches Nominal
- Third Hole Spacing [CRTB]
- 0.345 Inches Nominal
- Material And Location [MTLC]
- Overall Mica, Hh-I-536, Type Nmsa, Grade 4
Similar Supply Items to 5970-00-913-0724
Freight Information 5970-00-913-0724
5970-00-913-0724 has freight characteristics.. 5970-00-913-0724 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
