5970-00-850-6319
Feedthru Insulator
5970008506319 008506319 14828 GF804A1 MS25056
An insulator which is specifically designed to provide for the passage of electrical conductors through such items as panels, bulkheads, walls, and the like. It consists of two or more insulators, including one or more studs fed through the items in such a way as to be used as conductors. The studs may be used for mounting. See also INSULATOR, BOWL; and TERMINAL, FEEDTHRU, INSULATED. View more Feedthru Insulator
November 2023
8
Marketplace 5970-00-850-6319
Request a Quotation from participating marketplace vendors
Related Documents 5970-00-850-6319 5+ Documents (More...)
12 EA NS Request Quotation Updated Every Day 5970-00-850-6319 RQST NE Updated Every Day 5970-00-850-
6319 RQST Updated Every Day 5970-00-850-6319 RQST NE Related Documents 5970-00-850-6319 5+ Documents
MS25056-1B SLEEVE,ANTENNA SUPPORT 6 EA NS Request Quotation Subscribe to View Vendor Details...
MS25056-1B SLEEVE,ANTENNA SUPPORT 1 EA NS Request Quotation Subscribe to View Vendor Details...
MS25056-1B SLEEVE,ANTENNA SUPPORT 6 EA NS Request Quotation Subscribe to View Vendor Details...
MS25056-1B SLEEVE,ANTENNA SUPPORT 1 EA NS Request Quotation Subscribe to View Vendor Details...
MS25056-1B SLEEVE,ANTENNA SUPPORT 6 EA NS Request Quotation Subscribe to View Vendor Details...
MS25056-1B SLEEVE,ANTENNA SUPPORT 1 EA NS Request Quotation Subscribe to View Vendor Details...
MS25056-1B SLEEVE,ANTENNA SUPPORT 1 EA NS Request Quotation Subscribe to View Vendor Details... 14371
MS25056-1B SLEEVE,ANTENNA SUPPORT 6 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5970-00-850-6319
5970-00-850-6319 is a Feedthru Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5970-00-850-6319
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-00-850-6319
- US Air Force (FXGG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- FXCX
- US Navy (N9BG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTKE
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 2000
Approved Sources 5970-00-850-6319
- Part Number
- Manufacturer
- Status
- 14828
- Manufacturer
- 55635 - Dayton-Granger, Inc. (Active)
- Primary Buy
- Primary Buy
- GF804A1
- 26512 - Northrop Grumman Systems Corporation (Active)
- Vendor Drawing
- Vendor Drawing
- MS25056
- 55635 - Dayton-Granger, Inc. (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5970-00-850-6319
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0

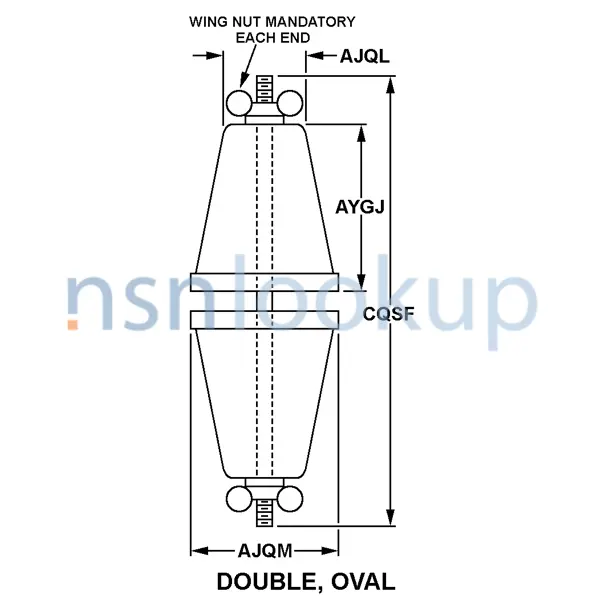

- Style Designator [STYL]
- Double, Oval
- Top Diameter [AJQL]
- 0.600 Inches Nominal
- Bowl Diameter [AJQM]
- 1.040 Inches Nominal
- Height Above Mounting Surface [AYGJ]
- 2.770 Inches Nominal
- Center Stud Length [CQSF]
- 11.140 Inches Nominal
- Material And Location [MTLC]
- Overall Plastic, Polyethylene
Weapon Systems (WSDC) 5970-00-850-6319
DLA Procurement Analysis 5970-00-850-6319
- Last Stock Position:
- 37 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5970-00-850-6319
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5970-00-850-6319
Freight Information 5970-00-850-6319
5970-00-850-6319 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 103300. A Sub NMFC of Z. It has a NMFC Description of INSULATING MATERIAL NOI. 5970-00-850-6319 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53360 which rates the freight between FCL and LCL. 5970-00-850-6319 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5970-00-850-6319 is not classified as a special type of cargo when transported by water. 5970-00-850-6319 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
