5970-00-811-6048
Disk Insulator
5970008116048 008116048 1537525
An insulator that is essentially thin, flat, and round in shape, with or without holes. The general shape may vary by the addition of such features as beveled edges, indented surfaces, through-hole key and/or peripheral flats. It may have one or more holes off center; if there are two or more holes, one may be centrally located. Excludes MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT. View more Disk Insulator
May 2023
5
Marketplace 5970-00-811-6048
Request a Quotation from participating marketplace vendors
Related Documents 5970-00-811-6048 1+ Documents (More...)
/fsg-59/fsc-5970/us
United States (US) 4. 5970-00-811-6048 Marketplace Restrictions Approved Sources Datasheet Management
INSULATOR,DISK 2100 EA NS Request Quotation Updated Every Day 5970-00-811-6048 RQST NE Updated Every
Restrictions 5970-00-811-6048
5970-00-811-6048 is a Disk Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5970-00-811-6048
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-00-811-6048
- US Navy (N9BG)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HDKE
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Sep 2016
Approved Sources 5970-00-811-6048
- Part Number
- Manufacturer
- Status
- 1537525
- Manufacturer
- 10001 - Navair And Navsea Managed Original (Active)
- Primary Buy
- Primary Buy
Datasheet 5970-00-811-6048
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0
- First Hole Spacing [CQSH]
- 0.235 Nominal Inches
- First Hole Diameter [ABRC]
- 0.026 Inches Nominal
- Outside Diameter [ABKV]
- 0.312 Inches Nominal
- Material And Location [MTLC]
- Overall Plastic, Polytetrafluoroethylene, Mil-I-22241, Type 2, Grade B
- Second Hole Spacing [CRKY]
- 0.235 Inches Nominal
- Overall Height [ABKW]
- 0.063 Inches Nominal

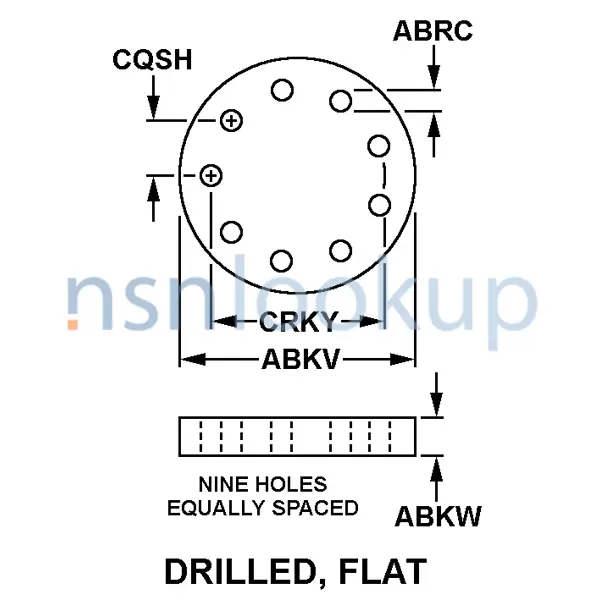

- Style Designator [STYL]
- Drilled, Flat
Weapon Systems (WSDC) 5970-00-811-6048
DLA Procurement Analysis 5970-00-811-6048
Management Data 5970-00-811-6048
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5970-00-811-6048
Freight Information 5970-00-811-6048
5970-00-811-6048 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 103300. A Sub NMFC of Z. It has a NMFC Description of INSULATING MATERIAL NOI. 5970-00-811-6048 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53360 which rates the freight between FCL and LCL. 5970-00-811-6048 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5970-00-811-6048 is not classified as a special type of cargo when transported by water. 5970-00-811-6048 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5970-00-811-6048 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- R
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
