5970-00-738-6409
Bushing Insulator
5970007386409 007386409 1843681 YD3086-1029A
An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL. View more Bushing Insulator
January 2023
10
Marketplace 5970-00-738-6409
Request a Quotation from participating marketplace vendors
Related Documents 5970-00-738-6409 5+ Documents (More...)
United States (US) 4. 5970-00-738-6409 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5970-00-738-6409 RQST Updated Every Day 5970-00-738-6409 RQST NE Related Documents
Bushing Insulator 5970007386409 007386409 Upgrade your Account Upgrade 5970-00-738-6409Bushing
Insulator5970007386409 007386409 1843681 YD3086-1029A Gallery Seal Washer 4520991382019991382019 vendors
/fsg-80/fsc-8040/us
Bushing Insulator 5970007386409 007386409 Upgrade your Account Upgrade 5970-00-738-6409Bushing
Insulator5970007386409 007386409 1843681 YD3086-1029A Upgrade your Account Upgrade 5970-00-738-6409Bushing
fr 5975-14-476-2218 Electrical Equipment Cabinet https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-00-738-6409
Bushing Insulator 5970007386409 007386409 Upgrade your Account Upgrade 5970-00-738-6409Bushing
Bushing Insulator 5970007386409 007386409 Gallery Seal Washer 4520991382019991382019 DAC https/
6625014999717014999717,R1094A /fsc-4520/uk 4520-99-138-2019 Gallery Seal Washer 4520991382019 Insulator5970007386409 007386409
Restrictions 5970-00-738-6409
5970-00-738-6409 is a Bushing Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5970-00-738-6409
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-00-738-6409
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5970-00-738-6409
- Part Number
- Manufacturer
- Status
- 1843681
- Manufacturer
- 10001 - Navair And Navsea Managed Original (Active)
- Primary Buy
- Primary Buy
- YD3086-1029A
- 3B150 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- YD3086-1029A
- 49956 - Raytheon Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5970-00-738-6409
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0
- First Hole Diameter [ABRC]
- 0.070 Inches Nominal
- First Hole Spacing [CQSH]
- 0.093 Inches Nominal
- Outside Diameter [ABKV]
- 0.744 Inches Nominal
- Material And Location [MTLC]
- Overall Polyamide Nylon
- Second Hole Spacing [CRKY]
- 0.187 Inches Nominal
- Second Hole Diameter [ABRD]
- 0.070 Inches Nominal
- Shank Height [AQZQ]
- 0.512 Inches Nominal
- Shank Outside Diameter [AGGZ]
- 0.500 Inches Nominal
- Overall Height [ABKW]
- 0.632 Inches Nominal
- Special Features [FEAT]
- Holes Counterbored 0.149 In. Dia To 0.512 In. Depth

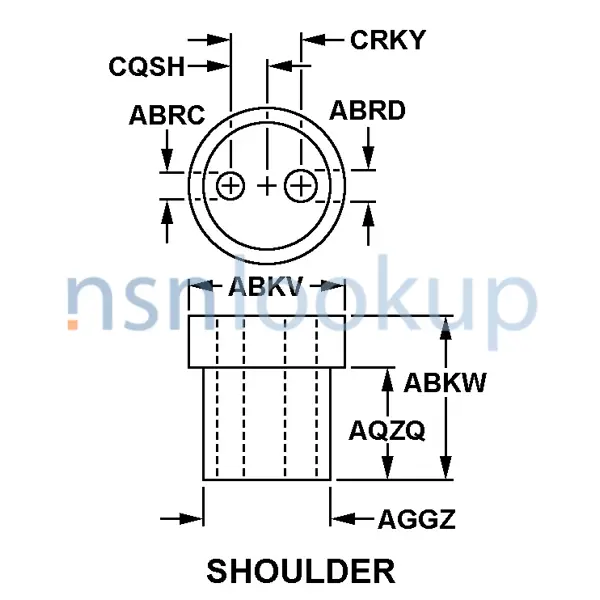

- Style Designator [STYL]
- Shoulder
Similar Supply Items to 5970-00-738-6409
Freight Information 5970-00-738-6409
5970-00-738-6409 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 103660. A Sub NMFC of Z. It has a NMFC Description of ELECTRIC WIRE OR WIRING. 5970-00-738-6409 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53520 which rates the freight between FCL and LCL. 5970-00-738-6409 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5970-00-738-6409 is not classified as a special type of cargo when transported by water. 5970-00-738-6409 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
