5970-00-722-9556
Disk Insulator
5970007229556 007229556 2229960PC1 YB3916-1012A 2229960
An insulator that is essentially thin, flat, and round in shape, with or without holes. The general shape may vary by the addition of such features as beveled edges, indented surfaces, through-hole key and/or peripheral flats. It may have one or more holes off center; if there are two or more holes, one may be centrally located. Excludes MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT. View more Disk Insulator
January 2023
17
Marketplace 5970-00-722-9556
Request a Quotation from participating marketplace vendors
Related Documents 5970-00-722-9556 2+ Documents (More...)
/fsg-59/fsc-5970/us
United States (US) 4. 5970-00-722-9556 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5970-00-722-9556 RQST Updated Every Day 5970-00-722-9556 RQST NE Related Documents
Disk Insulator 5970007229556 007229556 Every Day 5970-00-722-9556 RQST NE Restrictions https//www.nsnlookup.com
enable JavaScript in your web browser . 2510-99-192-2035Modification Kit2510991922035 991922035FV 2229960
Restrictions 5970-00-722-9556
5970-00-722-9556 is a Disk Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5970-00-722-9556
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-00-722-9556
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5970-00-722-9556
- Part Number
- Manufacturer
- Status
- 2229960PC1
- Manufacturer
- 10001 - Navair And Navsea Managed Original (Active)
- Primary Buy
- Primary Buy
- YB3916-1012A
- 3B150 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- 2229960
- 10001 - Navair And Navsea Managed Original (Active)
- Secondary Buy
- Secondary Buy
- YB3916-1012A
- 49956 - Raytheon Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5970-00-722-9556
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0
- Mounting Bolt Circle Diameter [AFFL]
- 0.374 Inches Nominal
- Mounting Hole Diameter [ABTB]
- 0.053 Nominal Inches
- Outside Diameter [ABKV]
- 0.625 Inches Nominal
- Material And Location [MTLC]
- Overall Plastic, Polytetrafluoroethylene
- Shoulder Depth [CRTT]
- 0.073 Nominal Inches
- Shoulder Outside Diameter [AGPX]
- 0.592 Inches Nominal
- Overall Height [ABKW]
- 0.199 Inches Nominal
- Special Features [FEAT]
- Holes Irregularly Spaced

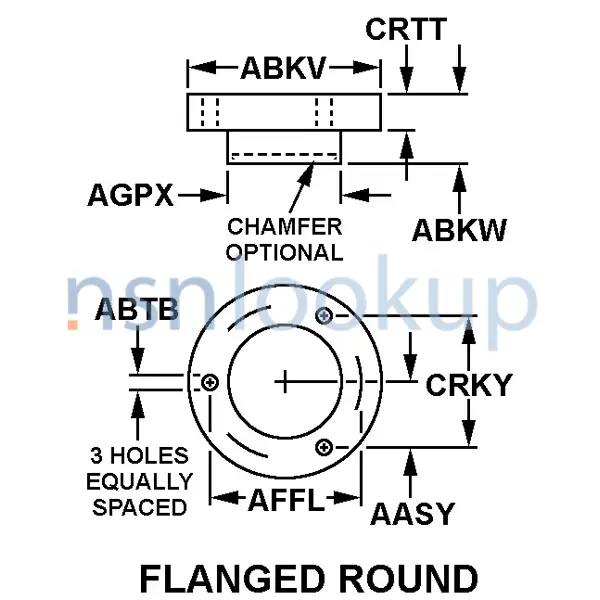

- Style Designator [STYL]
- Flanged Round
Similar Supply Items to 5970-00-722-9556
Freight Information 5970-00-722-9556
5970-00-722-9556 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 103660. A Sub NMFC of Z. It has a NMFC Description of ELECTRIC WIRE OR WIRING. 5970-00-722-9556 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5970-00-722-9556 is rated as class 55 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 53520 which rates the freight between FCL and LCL. 5970-00-722-9556 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5970-00-722-9556 is not classified as a special type of cargo when transported by water. 5970-00-722-9556 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
