5970-00-665-0490
Bowl Insulator
5970006650490 006650490 61019C RE61A203WTYPE61019C
An insulator used for wire entering or feedthru purposes. May include mounting and/or conducting hardware. Includes replacement bowls for feedthru insulators. Characterized by one or more bowl or bell shaped insulator surfaces. View more Bowl Insulator
May 2023
8
Marketplace 5970-00-665-0490
Request a Quotation from participating marketplace vendors
Related Documents 5970-00-665-0490 1+ Documents (More...)
United States (US) 4. 5970-00-665-0490 Marketplace Restrictions Approved Sources Datasheet Management
5970-00-665-0490 RQST Updated Every Day 5970-00-665-0490 RQST NE Related Documents 5970-00-665-0490
Restrictions 5970-00-665-0490
5970-00-665-0490 is a Bowl Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5970-00-665-0490
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-00-665-0490
- National Security Agency (DGX1)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- DCX1
- Supplementary Receivers:
- CX
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5970-00-665-0490
- Part Number
- Manufacturer
- Status
- 61019C
- Manufacturer
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- RE61A203WTYPE61019C
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5970-00-665-0490
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0

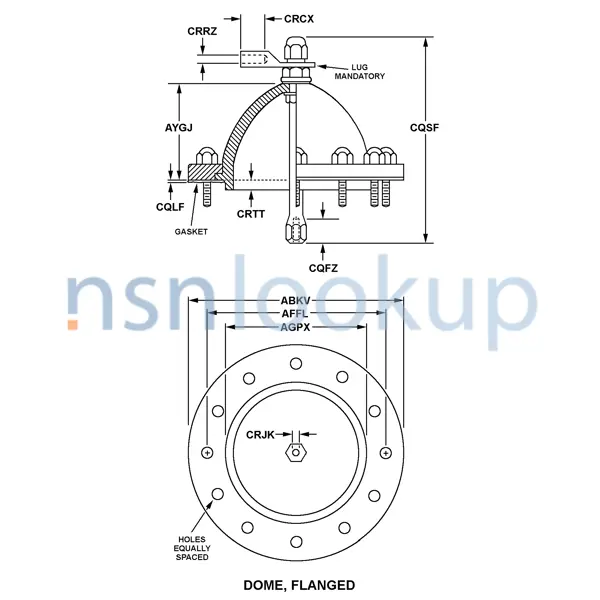

- Style Designator [STYL]
- Dome, Flanged
- Outside Diameter [ABKV]
- 7.750 Inches Nominal
- Height Above Mounting Surface [AYGJ]
- 2.938 Inches Nominal
- Center Stud Length [CQSF]
- 5.250 Inches Nominal
- Surface Treatment And Location [STLC]
- Overall Glazed
- Screw Thread Series Designator And Location [CQBP]
- Center Stud Unc
- Screw Thread Diameter And Location [CRFL]
- 0.500 Center Stud Inches Nominal
- Screw Thread Quantity Per Inch And Location [CQTP]
- 13 Center Stud
- Thread Class And Location [CRPG]
- 2A Center Stud
- Electrical Termination Quantity [ACHF]
- 7
- Special Features [FEAT]
- Style B18 Except W/O Lug W/6 Ea Mtg Studs
DLA Procurement Analysis 5970-00-665-0490
Management Data 5970-00-665-0490
Similar Supply Items to 5970-00-665-0490
Freight Information 5970-00-665-0490
5970-00-665-0490 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 103300. A Sub NMFC of Z. It has a NMFC Description of INSULATING MATERIAL NOI. 5970-00-665-0490 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53360 which rates the freight between FCL and LCL. 5970-00-665-0490 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5970-00-665-0490 is not classified as a special type of cargo when transported by water. 5970-00-665-0490 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5970-00-665-0490 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
