5970-00-501-1703
Bushing Insulator
5970005011703 005011703 10-94105
An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL. View more Bushing Insulator
November 2023
12
Marketplace 5970-00-501-1703
Request a Quotation from participating marketplace vendors
Related Documents 5970-00-501-1703 5+ Documents (More...)
Day 5970-00-501-1703 RQST Updated Every Day 5970-00-501-1703 RQST NE Related Documents 5970-00-501-1703
Day 5970-00-501-1703 RQST Updated Every Day 5970-00-501-1703 RQST NE Related Documents 5970-00-501-1703
Bushing Insulator 5970005011703 005011703 1703 RQST NE Related Documents 5970-00-501-1703 https
Bushing Insulator 5970005011703 005011703 $1 a day Upgrade your Account Upgrade 5970-00-501-1703Bushing
Insulator5970005011703 005011703 10-94105 a Quotation from participating marketplace vendors Request
-501-1703 4+ Documents ( More... ) https Sleeve https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-00-501-1703
Bushing Insulator 5970005011703 005011703 Day 5970-00-501-1703 RQST Updated Every Day 5970-00-501
1730-14-264-6270 France (ZF) Approved Sources 1730-14-264-6270 Part NumberManufacturerStatus262-10-94105
Restrictions 5970-00-501-1703
5970-00-501-1703 is a Bushing Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5970-00-501-1703
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-00-501-1703
- US Air Force (FXGG)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- FXCX
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5970-00-501-1703
- Part Number
- Manufacturer
- Status
- 10-94105
- Manufacturer
- 59501 - Unison Industries Llc (Active)
- Primary Buy
- Primary Buy
- 10-94105
- 77820 - Amphenol Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5970-00-501-1703
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0

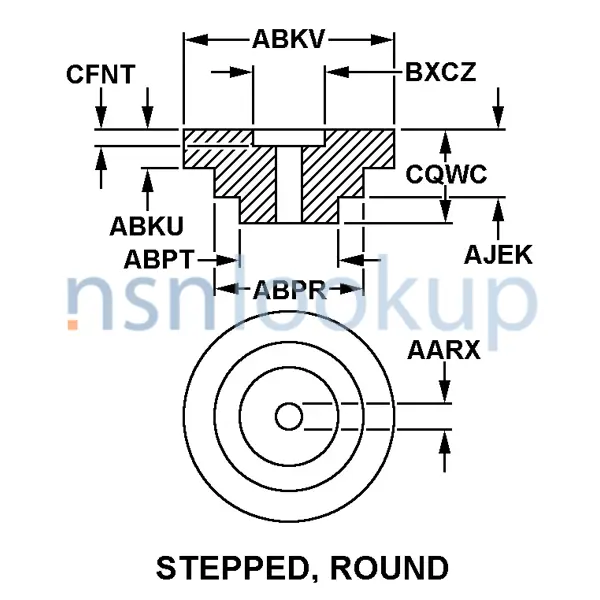

- First Counterbore Depth [CFNT]
- 0.188 Inches Nominal
- First Counterbore Diameter [BXCZ]
- 0.174 Inches Nominal
- First Step Diameter [ABPR]
- 0.740 Inches Nominal
- First Step Height [AJEK]
- 0.829 Inches Nominal
- Flange Thickness [ABKU]
- 0.125 Inches Nominal
- Outside Diameter [ABKV]
- 1.000 Inches Nominal
- Inside Diameter [AARX]
- 0.174 Inches Nominal
- Material And Location [MTLC]
- Overall Ceramic
- Second Step Diameter [ABPT]
- 0.531 Inches Nominal
- Second Step Height [CQWC]
- 1.406 Inches Nominal
- Special Features [FEAT]
- As Per Style Ac73 Except Item Has 0.750-20 Thd And No. 8-32 Thd Centrally Located In 1.000 Dia Flange
- Style Designator [STYL]
- Stepped, Round
- Surface Treatment And Location [STLC]
- Overall Glazed
