5970-00-296-6998
Suspension Insulator
5970002966998 002966998 HHI435 52-2 32435
An insulator having an integral provision for the nonrigid assembling of one upon the other for the purpose of extending its insulating range. It is specifically designed to suspend a conductor from a tower or other support. View more Suspension Insulator
May 2023
6
Marketplace 5970-00-296-6998
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5970-00-296-6998 5+ Documents (More...)
NE FedMall Updated Every Day 5970-00-296-6998 RQST NE Updated Every Day 5970-00-296-6998 RQST Updated
Every Day 5970-00-296-6998 RQST NE Related Documents 5970-00-296-6998 5+ Documents ( More... ) https
5970-01-594-2093 https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-00-296-6998 Suspension Insulator
5970002966998 002966998 5970-00-681-0039 5970-01-606-9370 5970-00-296-6998 https//www.nsnlookup.com
Suspension Insulator 5970002966998 002966998 5970-00-296-6998 5+ Documents ( More... ) https https
248-5336 5970-00-728-1727 5970-00-852-7488 5970-21-842-0237 5970-00-681-0039 5970-01-606-9370 5970-00-296-6998
for $1 a day Upgrade your Account Upgrade 5970-00-050-9719Strain Insulator5970000509719 000509719 HHI435
for $1 a day Upgrade your Account Upgrade 5970-00-050-9719Strain Insulator5970000509719 000509719 HHI435
Documents ( More... ) https/ https 852-7488 5970-21-842-0237 5970-00-681-0039 5970-01-606-9370 5970-00-296-6998
5970270597916270597916 59/fsc-5970/it 5970-15-179- 852-7488 5970-21-842-0237 5970-00-681-0039 5970-01-606-9370 5970-00-296-6998
Restrictions 5970-00-296-6998
5970-00-296-6998 is a Suspension Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5970-00-296-6998
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-00-296-6998
- US Air Force (FXGG)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- FXCX
Approved Sources 5970-00-296-6998
- Part Number
- Manufacturer
- Status
- 52-2
- Manufacturer
- 80204 - American National Standards (Active)
- Primary Buy
- Primary Buy
- HHI435
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- 32435
- 79911 - Ohio Brass Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5970-00-296-6998
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0
- Distance From Inside Of Mounting Hole To Outside Surface [CRTW]
- 0.531 Inches Nominal
- Distance Between Legs [AHHG]
- 0.688 Inches Nominal
- First Mounting Hole Spacing [CQKY]
- 5.750 Inches Nominal
- Identification Code Color [AAPC]
- Brown
- Mounting Hole Diameter [ABTB]
- 0.688 Nominal Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Class And Iv Type
- Outside Diameter [ABKV]
- 9.000 Inches Nominal
- Leg Length [AHSJ]
- 0.688 Inches Nominal
- Material And Location [MTLC]
- Overall Porcelain
- Overall Height [ABKW]
- 7.250 Inches Nominal
- Pin Diameter [ABVV]
- 0.625 Nominal Inches

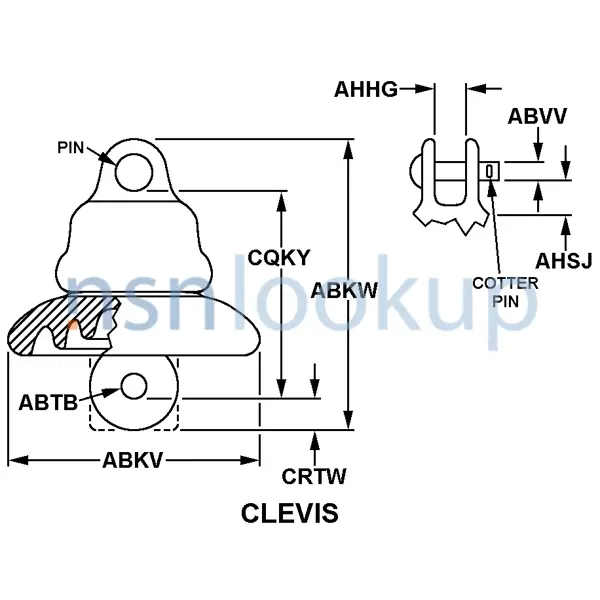

- Style Designator [STYL]
- Clevis
DLA Procurement Analysis 5970-00-296-6998
Management Data 5970-00-296-6998
Similar Supply Items to 5970-00-296-6998
Freight Information 5970-00-296-6998
5970-00-296-6998 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 103660. A Sub NMFC of Z. It has a NMFC Description of ELECTRIC WIRE OR WIRING. 5970-00-296-6998 has not been rated for freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53520 which rates the freight between FCL and LCL. 5970-00-296-6998 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5970-00-296-6998 is not classified as a special type of cargo when transported by water. 5970-00-296-6998 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
