5970-00-296-2948
Bushing Insulator
5970002962948 002962948 A2 Z12
An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL. View more Bushing Insulator
January 2023
8
Marketplace 5970-00-296-2948
Request a Quotation from participating marketplace vendors
Related Documents 5970-00-296-2948 5+ Documents (More...)
Bushing Insulator 5970002962948002962948,A2 KM24X1,5DIN89280-Z12-A5 An item specifically designed https
Bushing Insulator 5970002962948002962948,A2 KM24X1,5DIN89280-Z12-A5 An item specifically designed https
-A6-S2NIDIN89280-KM24X1,5-Z12-A6KVM24-Z12A-6KM24X1,5DIN89280-Z12-A6ASC1285555 An RQST NE Updated Every
-A6KVM24-Z12A-6KM24X1,5DIN89280 -Z12-A6 ASC1285555 An item specifically -A6-S2NIDIN89280-KM24X1,5-Z12
/fsg-59/fsc-5970/de
-A2 Consists of a box containing a group of items used to make an insulating bond around a cable after
Bushing Insulator 5970002962948 002962948,A2 item specifically -A6-S2NIDIN89280-KM24X1,5-Z12 https
KVMP 24/13,5-Z12-A6 An item specifically designed to pass an electrical cable or tube through a continuous
your web browser . 5975-12-358-1553Stuffing Tube5975123581553 123581553KVMP 24/13,5-Z12KVMP 24/13,5-Z12
-Z12-A5KM24X1,5DIN89280 Z12 -Z12-A5 An item specifically https//www.nsnlookup.com -Z12-A5KM24X1,5DIN89280
-Z12-A5KM24X1,5DIN89280 Z12 -Z12-A5 An item specifically https//www.nsnlookup.com -Z12-A5KM24X1,5DIN89280
Restrictions 5970-00-296-2948
5970-00-296-2948 is a Bushing Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5970-00-296-2948
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-00-296-2948
- NASA (G760)
- Effective Date:
- 1 Apr 1991
- NASA (G810)
- Effective Date:
- 1 Apr 1991
- NASA (G900)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5970-00-296-2948
- Part Number
- Manufacturer
- Status
- A2
- Manufacturer
- 21810 - Challenger Electrical Equipment Corp (Obsolete)
- Original Design
- Original Design
- Z12
- 43268 - Neumade Products Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5970-00-296-2948
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0

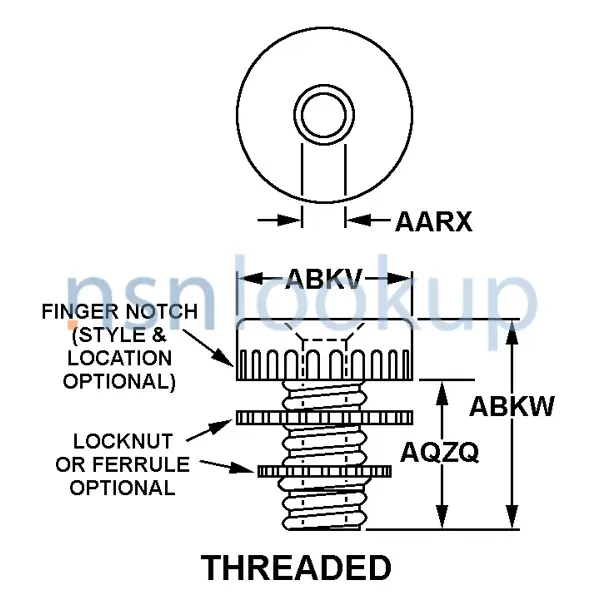

- Style Designator [STYL]
- Threaded
- Inside Diameter [AARX]
- 0.500 Inches Nominal
- Outside Diameter [ABKV]
- 1.125 Inches Nominal
- Overall Height [ABKW]
- 1.000 Inches Nominal
- Shank Height [AQZQ]
- 0.625 Inches Nominal
- Material And Location [MTLC]
- Overall Porcelain
- Identification Code Color [AAPC]
- White
- Screw Thread Diameter And Location [CRFL]
- 0.688 Shank Inches Nominal
- Special Features [FEAT]
- Glazed Finish
- Furnished Items And Quantity [TMQY]
- Sleeve Retainer
Similar Supply Items to 5970-00-296-2948
Freight Information 5970-00-296-2948
5970-00-296-2948 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 103660. A Sub NMFC of Z. It has a NMFC Description of ELECTRIC WIRE OR WIRING. 5970-00-296-2948 has not been rated for freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53520 which rates the freight between FCL and LCL. 5970-00-296-2948 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5970-00-296-2948 is not classified as a special type of cargo when transported by water. 5970-00-296-2948 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
