5970-00-295-8759
Plate Insulator
5970002958759 002958759 505-4880-002
An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD. View more Plate Insulator
January 2023
5
Marketplace 5970-00-295-8759
Request a Quotation from participating marketplace vendors
Related Documents 5970-00-295-8759 2+ Documents (More...)
5970-00-295-8759 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-00-295-8759
Day 5970-00-295-8759 RQST NE Related Documents 5970-00-295-8759 2+ Documents ( More... ) https//www.nsnlookup.com
Plate Insulator 5970002958759 002958759 5970-00-295-8759 2+ Documents ( More... ) https//www.nsnlookup.com
/fsg-59/fsc-5970/us 5970-00-295-8759 RQST Updated Every Day 5970-00-295-8759 RQST NE Related Documents
Restrictions 5970-00-295-8759
5970-00-295-8759 is a Plate Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5970-00-295-8759
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-00-295-8759
- Germany (ZG01)
- Effective Date:
- 1 Nov 2011
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5970-00-295-8759
- Part Number
- Manufacturer
- Status
- 505-4880-002
- Manufacturer
- 13499 - Rockwell Collins, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5970-00-295-8759
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0
- First Center Distance [CQHX]
- 0.331 Inches Nominal
- First Hole Spacing [CQSH]
- 0.686 Inches Nominal
- First Hole Diameter [ABRC]
- 0.140 Inches Nominal
- Material And Location [MTLC]
- Overall Ceramic
- Second Center Distance [CRPR]
- 0.382 Inches Nominal
- Overall Height [ABKW]
- 0.093 Inches Nominal
- Overall Length [ABHP]
- 0.662 Inches Nominal
- Overall Width [ABMK]
- 0.765 Inches Nominal

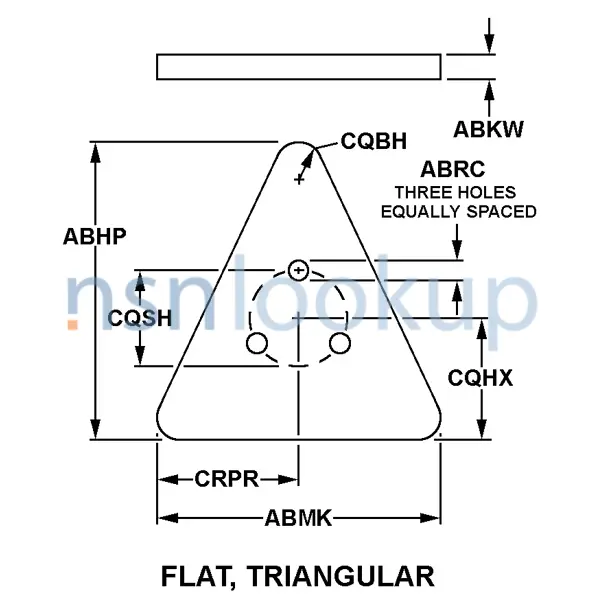

- Style Designator [STYL]
- Flat, Triangular
Similar Supply Items to 5970-00-295-8759
Freight Information 5970-00-295-8759
5970-00-295-8759 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 103660. A Sub NMFC of Z. It has a NMFC Description of ELECTRIC WIRE OR WIRING. 5970-00-295-8759 has not been rated for freight class when transported by Less-Than Truckload (LTL) freight. 5970-00-295-8759 is rated as class 55 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 53520 which rates the freight between FCL and LCL. 5970-00-295-8759 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5970-00-295-8759 is not classified as a special type of cargo when transported by water. 5970-00-295-8759 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
