5970-00-295-7789
Feedthru Insulator
5970002957789 002957789 1161 61016 213257-1 RE61A240TYPE61016
An insulator which is specifically designed to provide for the passage of electrical conductors through such items as panels, bulkheads, walls, and the like. It consists of two or more insulators, including one or more studs fed through the items in such a way as to be used as conductors. The studs may be used for mounting. See also INSULATOR, BOWL; and TERMINAL, FEEDTHRU, INSULATED. View more Feedthru Insulator
January 2023
16
Marketplace 5970-00-295-7789
Request a Quotation from participating marketplace vendors
Related Documents 5970-00-295-7789 5+ Documents (More...)
1 EA NS Request Quotation Updated Every Day 5970-00-295-7789 RQST NE Updated Every Day 5970-00-295-7789
RQST Updated Every Day 5970-00-295-7789 RQST NE Related Documents 5970-00-295-7789 5+ Documents ( More
fsg-66/fsc-6675/de 6675-12-131-7451 Auswerteausstattung 6675121317451121317451 6675-12-131-74516675-61016
your web browser . 6675-12-131-7451Auswerteausstattung6675121317451 1213174516675-12-131-74516675-61016
Gasket 5330013340381 013340381,61016 0850Uebungsgeraet6930121600850 121600850 6930-61019 6930-61016
https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-00-295-7789 Feedthru Insulator 5970002957789 002957789
in your web browser . 9520-33-001-1605Special Shaped Structural Section9520330011605 330011605 35-61016
in your web browser . 9520-33-001-1605Special Shaped Structural Section9520330011605 330011605 35-61016
-010000 253-61016-TAB A length of nonmetallic hose with fittings on one or both ends.
-010000253-61016-TAB A length of nonmetallic hose with fittings on one or both ends HOSE ASSY 1 EA NS
Restrictions 5970-00-295-7789
5970-00-295-7789 is a Feedthru Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5970-00-295-7789
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-00-295-7789
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5970-00-295-7789
- Part Number
- Manufacturer
- Status
- 1161
- Manufacturer
- 50840 - General Electric Ceramics Inc Sub Of (Active)
- Primary Buy
- Primary Buy
- 61016
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 213257-1
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Primary Buy
- Primary Buy
- RE61A240TYPE61016
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy

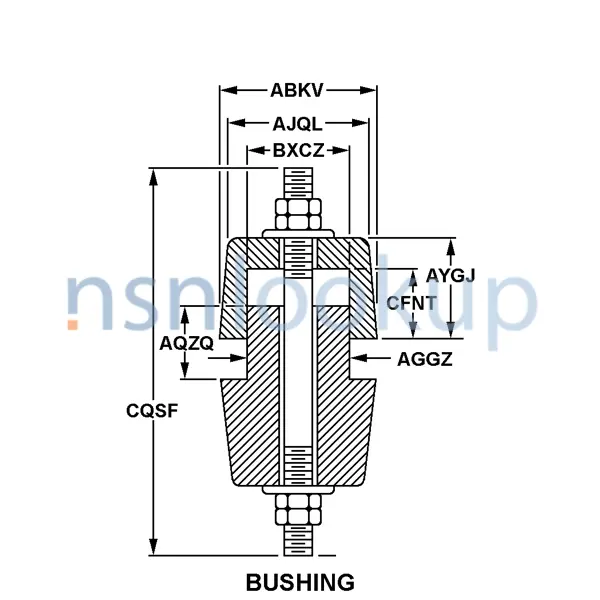

Datasheet 5970-00-295-7789
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0
- Electrical Termination Quantity [ACHF]
- 2
- Center Stud Length [CQSF]
- 3.625 Nominal Inches
- Height Above Mounting Surface [AYGJ]
- 1.125 Inches Nominal
- Outside Diameter [ABKV]
- 1.750 Inches Nominal
- Material And Location [MTLC]
- Overall Ceramic
- Screw Thread Diameter And Location [CRFL]
- 0.250 Center Stud Inches Nominal
- Screw Thread Quantity Per Inch And Location [CQTP]
- 20 Center Stud
- Screw Thread Series Designator And Location [CQBP]
- Center Stud Unc
- Special Features [FEAT]
- Style F11 Except W/O Shank
- Style Designator [STYL]
- Bushing
- Surface Treatment And Location [STLC]
- Overall Glazed
- Thread Class And Location [CRPG]
- 2A Center Stud
NATO Stock Numbers Related to 5970-00-295-7789
Freight Information 5970-00-295-7789
5970-00-295-7789 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 103745. A Sub NMFC of X. It has a NMFC Description of ELECTRIC WIRE OR WIRING. 5970-00-295-7789 is rated as class 55 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53510 which rates the freight between FCL and LCL. 5970-00-295-7789 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5970-00-295-7789 is not classified as a special type of cargo when transported by water. 5970-00-295-7789 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
