5970-00-284-8417
Strain Insulator
5970002848417 002848417 SC-A-286ETYPEC SC-A-286TYPEC A331TYPEC 01401 38387
An insulator specifically designed to transmit to the tower, or other support, the entire pull of a conductor or guy wire. View more Strain Insulator
May 2023
15
Marketplace 5970-00-284-8417
Request a Quotation from participating marketplace vendors
Related Documents 5970-00-284-8417 5+ Documents (More...)
United States (US) 4. 5970-00-284-8417 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5970-00-284-8417 RQST Updated Every Day 5970-00-284-8417 RQST NE Related
Documents ( More... ) https//www.nsnlookup.com https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-00-284-8417
Strain Insulator 5970002848417 002848417 https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970 https
Upgrade your Account Upgrade 2910-01-325-3349Fuel Injector Nozzle Spray Tip2910013253349 013253349 38387
Strain Insulator 5970002848417 002848417 5970-00-284-8417Strain Insulator5970002848417 002848417
Upgrade your Account Upgrade 2910-01-325-3349Fuel Injector Nozzle Spray Tip2910013253349 013253349 38387
Spur Gear 3020012951669 012951669,38387 144459990 R300500136 36452 38387 /fsg-29/fsc-2910/us 2910 Spur
30/fsc-3020/us 3020-01-295-1669 Spur Gear 3020012951669 012951669,38387 144459990 R300500136 36452 38387
https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-00-284-8417 Strain Insulator 5970002848417 002848417
Restrictions 5970-00-284-8417
5970-00-284-8417 is a Strain Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5970-00-284-8417
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-00-284-8417
- National Security Agency (DGX1)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- DCX1
- Supplementary Receivers:
- CX
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5970-00-284-8417
- Part Number
- Manufacturer
- Status
- SC-A-286ETYPEC
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- SC-A-286TYPEC
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- A331TYPEC
- 02230 - Electronics Of Clearfield Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 01401
- 78616 - Carborundum Co The Refractories And (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 38387
- 79911 - Ohio Brass Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5970-00-284-8417
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0

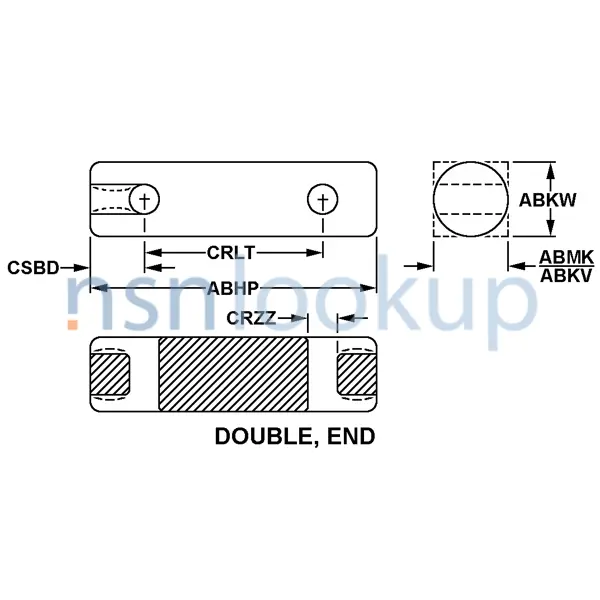

- Conductor Separation Distance [CRLT]
- 12.000 Nominal Inches
- First Distance From Conductor Hole To Insulator End [CSBD]
- 1.250 Inches Nominal
- Identification Code Color [AAPC]
- White And Brown
- Material And Location [MTLC]
- Overall Insulation, Electrical, Jan-I-10, Grade L-2A
- Overall Height [ABKW]
- 1.062 Inches Nominal
- Overall Length [ABHP]
- 14.500 Inches Nominal
- Overall Width [ABMK]
- 1.500 Inches Nominal
- Wire Hole Diameter [CRZZ]
- 0.500 Inches Nominal
- Style Designator [STYL]
- Double, End
DLA Procurement Analysis 5970-00-284-8417
Management Data 5970-00-284-8417
Similar Supply Items to 5970-00-284-8417
Freight Information 5970-00-284-8417
5970-00-284-8417 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 103780. A Sub NMFC of X. It has a NMFC Description of INSULATORS STRAIN NOI. 5970-00-284-8417 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53570 which rates the freight between FCL and LCL. 5970-00-284-8417 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5970-00-284-8417 is not classified as a special type of cargo when transported by water. 5970-00-284-8417 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
