5970-00-198-6390
Standoff Insulator
5970001986390 001986390 MIL-I-23264/25 35A2276 IN81 SCB369 IN00081 IN18 NL422W81-012
An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware. View more Standoff Insulator
May 2023
19
Marketplace 5970-00-198-6390
Request a Quotation from participating marketplace vendors
Related Documents 5970-00-198-6390 3+ Documents (More...)
Photo 1/2 NSN 5970-00-198-6390 (Identification) 2/2 - - 1.
Updated Every Day 5970-00-198-6390 RQST NE Updated Every Day 5970-00-198-6390 RQST Updated Every Day
www.nsnlookup.com /fsg-59/fsc-5995/us 5995-01-694-3921 Electrical Special Purpose Cable Assembly MTL270/IN18
Standoff Insulator 5970001986390 001986390 Documents ( More... ) https//www.nsnlookup.com https
Restrictions 5970-00-198-6390
5970-00-198-6390 is a Standoff Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5970-00-198-6390
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-00-198-6390
- US Air Force (FXGG)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- FXCX
- US Navy (N9BG)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- NIGD
- Supplementary Collaborators:
- GTKE
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5970-00-198-6390
- Part Number
- Manufacturer
- Status
- NL422W81-012
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-I-23264/25
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 35A2276
- 80049 - Department Of The Air Force (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- IN81
- 80063 - Us Army Communications & Electronics (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- SCB369
- 80063 - Us Army Communications & Electronics (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- IN00081
- 80063 - Us Army Communications & Electronics (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- IN18
- 80063 - Us Army Communications & Electronics (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5970-00-198-6390
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0
- Furnished Items And Quantity [TMQY]
- 1 Lock Washer And 1 Machine Screw 10-24-Unc-2B
- First End Radius [CQBH]
- 0.625 Nominal Inches
- First Slot Depth [CRYZ]
- 0.062 Inches Nominal
- First Slot Width [CQDN]
- 0.062 Inches Nominal
- Identification Code Color [AAPC]
- White
- Mounting Facility Type And Quantity [AXHR]
- 1 Threaded Hole
- Material And Location [MTLC]
- Overall Ceramic, Mil-I-10, Grade L422
- Screw Thread Diameter And Location [CRFL]
- 0.190 Mounting Facility Inches Nominal
- Screw Thread Quantity Per Inch And Location [CQTP]
- 24 Mounting Facility
- Screw Thread Series Designator And Location [CQBP]
- Mounting Facility Unc
- Second Corner Radius [AJHW]
- 0.062 Inches Nominal
- Overall Height [ABKW]
- 1.500 Inches Nominal
- Wire Hole Diameter [CRZZ]
- 0.375 Inches Nominal

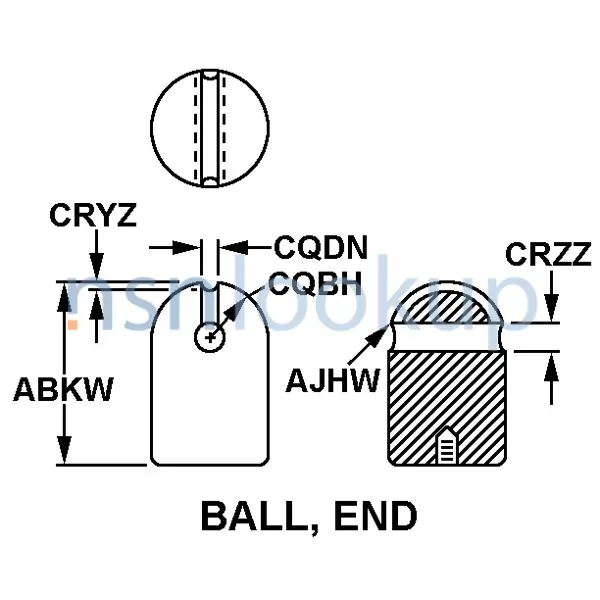

- Style Designator [STYL]
- Ball, End
- Surface Treatment And Location [STLC]
- Overall Glazed
- Thread Class And Location [CRPG]
- 2B Mounting Facility
- Thread Length And Location [CQJM]
- 0.500 Mounting Facility Inches Nominal
DLA Procurement Analysis 5970-00-198-6390
Management Data 5970-00-198-6390
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5970-00-198-6390
Freight Information 5970-00-198-6390
5970-00-198-6390 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 103300. A Sub NMFC of Z. It has a NMFC Description of INSULATING MATERIAL NOI. 5970-00-198-6390 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53360 which rates the freight between FCL and LCL. 5970-00-198-6390 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5970-00-198-6390 is not classified as a special type of cargo when transported by water. 5970-00-198-6390 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
