5970-00-178-1171
Standoff Insulator
5970001781171 001781171 MIL-I-23264/1 NL522W06-024
An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware. View more Standoff Insulator
May 2023
7
Marketplace 5970-00-178-1171
Request a Quotation from participating marketplace vendors
Related Documents 5970-00-178-1171 5+ Documents (More...)
MIL-I-23264/1 INSULATOR,STANDOFF 2 EA NS Request Quotation Updated Every Day 5970-00-178-1171 RQST NE
Updated Every Day 5970-00-178-1171 RQST Updated Every Day 5970-00-178-1171 RQST NE Related Documents
MIL-I-23264/1 INSULATOR,STANDOFF 2 EA NS Request Quotation Updated Every Day 5970-00-151-8034 RQST NE
Standoff Insulator 5970001781171 001781171 $1 a day Upgrade your Account Upgrade 5970-00-178-1171Standoff
Standoff Insulator 5970001781171 001781171 $1 a day Upgrade your Account Upgrade 5970-00-178-1171Standoff
Insulator5970001781171 001781171 MIL-I-23264/1 MIL-I-23264/1 INSULATOR,STANDOFF 2 EA NS Request Quotation
-602-6629 4+ Documents ( More... ) https States https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-00-178-1171
Standoff Insulator 5970001781171 001781171 Upgrade your Account Upgrade 5970-00-178-1171Standoff
Standoff Insulator 5970001781171 001781171 $1 a day Upgrade your Account Upgrade 5970-00-178-1171Standoff
Insulator5970001781171 001781171 MIL-I-23264/1 MIL-I-23264/1 INSULATOR,STANDOFF 2 EA NS Request Quotation
Restrictions 5970-00-178-1171
5970-00-178-1171 is a Standoff Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5970-00-178-1171
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-00-178-1171
- National Security Agency (DGX1)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- DCX1
- Supplementary Receivers:
- CX
Approved Sources 5970-00-178-1171
- Part Number
- Manufacturer
- Status
- NL522W06-024
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-I-23264/1
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5970-00-178-1171
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0
- Identification Code Color [AAPC]
- White

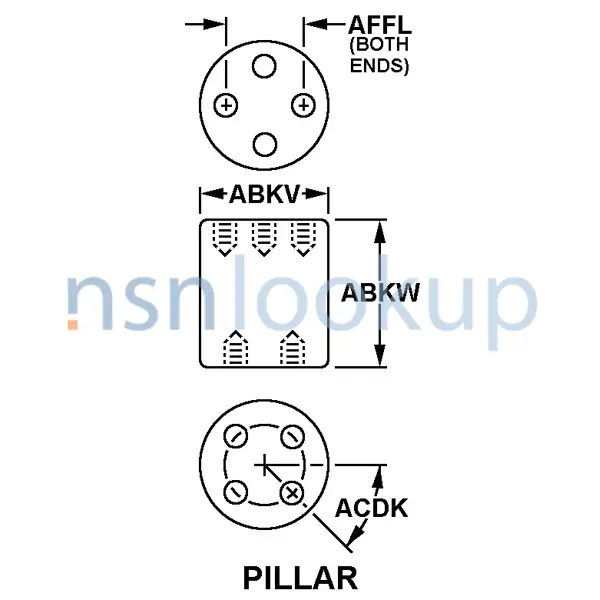

- Mounting Bolt Circle Diameter [AFFL]
- 1.250 Inches Nominal
- Mounting Facility Type And Quantity [AXHR]
- 4 Threaded Hole
- Outside Diameter [ABKV]
- 1.750 Inches Nominal
- Material And Location [MTLC]
- Overall Insulation, Electrical, Mil-I-10, Grade L522
- Screw Thread Diameter And Location [CRFL]
- 0.190 Electrical Termination Inches Nominal And 0.190 Mounting Facility Inches Nominal
- Screw Thread Quantity Per Inch And Location [CQTP]
- 32 Electrical Termination And 32 Mounting Facility
- Screw Thread Series Designator And Location [CQBP]
- Electrical Termination Unf And Mounting Facility Unf
- Overall Height [ABKW]
- 3.000 Inches Nominal
- Style Designator [STYL]
- Pillar
- Surface Treatment And Location [STLC]
- Overall Glazed
- Thread Class And Location [CRPG]
- 2B Electrical Termination And 2B Mounting Facility
- Thread Length And Location [CQJM]
- 0.375 Electrical Termination Inches Nominal And 0.375 Mounting Facility Inches Nominal
DLA Procurement Analysis 5970-00-178-1171
Management Data 5970-00-178-1171
Similar Supply Items to 5970-00-178-1171
Freight Information 5970-00-178-1171
5970-00-178-1171 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 103300. A Sub NMFC of Z. It has a NMFC Description of INSULATING MATERIAL NOI. 5970-00-178-1171 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53360 which rates the freight between FCL and LCL. 5970-00-178-1171 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5970-00-178-1171 is not classified as a special type of cargo when transported by water. 5970-00-178-1171 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
