5970-00-177-1611
Pin Insulator
5970001771611 001771611 L72R 38222-3010 C906-1302
An insulator which is grooved for guiding purposes and which is specifically designed to be mounted on a crossarm pin or bracket pin. View more Pin Insulator
August 2023
3
Marketplace 5970-00-177-1611
Request a Quotation from participating marketplace vendors
Related Documents 5970-00-177-1611 2+ Documents (More...)
BUY NE FedMall Updated Every Day 5970-00-177-1611 RQST NE Updated Every Day 5970-00-177-1611 RQST
Updated Every Day 5970-00-177-1611 RQST NE Related Documents 5970-00-177-1611 2+ Documents ( More...
Pin Insulator 5970001771611 001771611,L72R Documents 5970-00-177-1611 2+ Documents ( More... https
Restrictions 5970-00-177-1611
5970-00-177-1611 is a Pin Insulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5970-00-177-1611
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5970-00-177-1611
- US Army (A918)
- Effective Date:
- 1 Dec 2004
- Former MOE Rule:
- A917
- Supplementary Receivers:
- CL
- US Air Force (FXGG)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- FXCX
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2004
Approved Sources 5970-00-177-1611
- Part Number
- Manufacturer
- Status
- L72R
- Manufacturer
- 74999 - Joslyn Corp (Active)
- Incomplete Reference
- Incomplete Reference
- 38222-3010
- 79911 - Ohio Brass Co (Active)
- Incomplete Reference
- Incomplete Reference
- C906-1302
- 86559 - Chance A B C Sub Of Emerson Electric (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5970-00-177-1611
- Characteristic
- Specifications
- FIIG
- Specifications
- A007A0

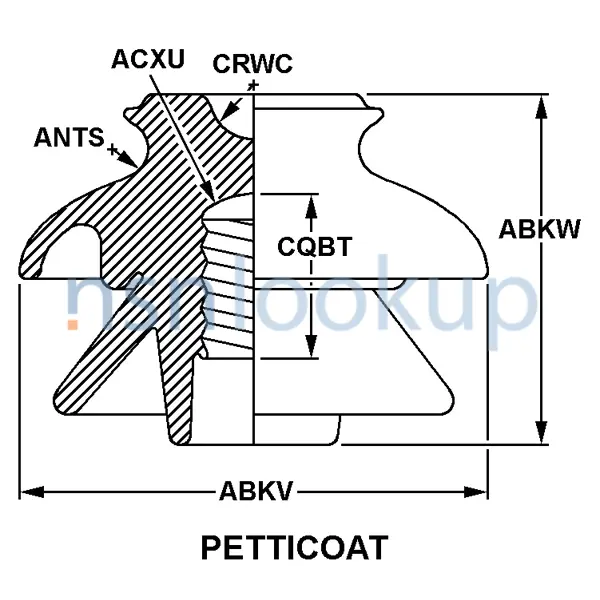

- Style Designator [STYL]
- Petticoat
- Outside Diameter [ABKV]
- 9.000 Inches Nominal
- Overall Height [ABKW]
- 6.500 Inches Nominal
- Pinhole Diameter [ACXU]
- 1.375 Inches Nominal
- Radial Groove Radius [ANTS]
- 0.562 Inches Nominal
- Pin Hole Depth [CQBT]
- 2.125 Inches Nominal
- Top Wire Groove Radius [CRWC]
- 0.750 Inches Nominal
- Material And Location [MTLC]
- Overall Porcelain
- Identification Code Color [AAPC]
- Brown
- Conductor Mechanical Accommodation Quantity [CRBM]
- 1
- Maximum Conductor Size Accommodated [AAKV]
- 400 Mcm
