5965-01-630-8449
Electromagnetic Loudspeaker
5965016308449 016308449 VML-15TF 10408769
A loudspeaker whose diaphragm movements are produced by a coil or iron armature moving in the field of an electromagnet or a fixed coil. View more Electromagnetic Loudspeaker
May 2023
4
Marketplace 5965-01-630-8449
Request a Quotation from participating marketplace vendors
Related Documents 5965-01-630-8449 1+ Documents (More...)
United States (US) 4. 5965-01-630-8449 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5965-01-630-8449 RQST Updated Every Day 5965-01-630-8449 RQST NE Related Documents
Restrictions 5965-01-630-8449
5965-01-630-8449 is a Electromagnetic Loudspeaker that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5965-01-630-8449
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5965-01-630-8449
- US Navy (N9BN)
- Effective Date:
- 1 Aug 2014
- Supplementary Collaborators:
- HD
Approved Sources 5965-01-630-8449
- Part Number
- Manufacturer
- Status
- VML-15TF
- Manufacturer
- 0FJP1 - Zenitel Usa, Inc. (Active)
- Primary Buy
- Primary Buy
- 10408769
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 5965-01-630-8449
- Characteristic
- Specifications
- FIIG
- Specifications
- A11600
- Center To Center Distance Between Mounting Facilities Parallel To Width [ABKR]
- 34.5 Millimeters Nominal
- Horn Mounting Facility Quantity [AKNY]
- 3
- Horn Mounting Facility [AKNX]
- Unthreaded Hole
- Power Rating [AJDB]
- 15.0 Watts Peak
- Installation Design [AMQY]
- Nonportable
- Overall Height [ABKW]
- 145.0 Millimeters Nominal
- Overall Length [ABHP]
- 298.0 Millimeters Nominal
- Overall Width [ABMK]
- 250.0 Millimeters Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Horn Loud Speaker
- Transducer Diameter [AKNQ]
- 122.0 Millimeters Nominal
- Transducer Type [AKVS]
- Cone
- Usage Design [ALBY]
- Indoor And Outdoor

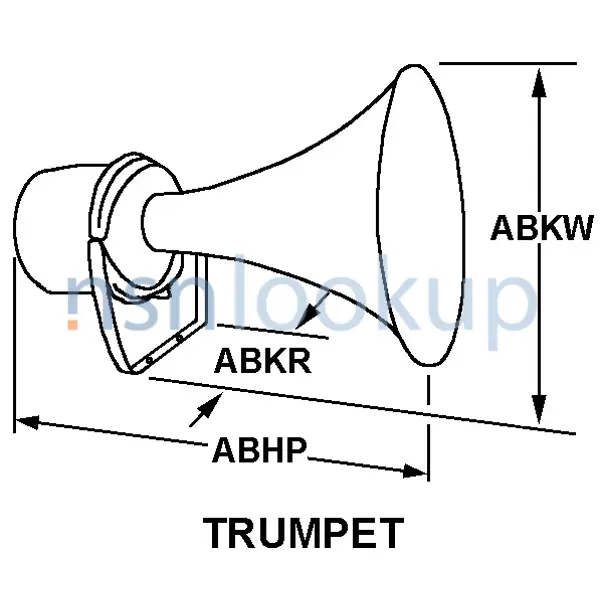

- Style Designator [STYL]
- Trumpet
- Terminal Type [AARB]
- Wire Lead
DLA Procurement Analysis 5965-01-630-8449
Management Data 5965-01-630-8449
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5965-01-630-8449
Freight Information 5965-01-630-8449
5965-01-630-8449 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062420. A Sub NMFC of Z. It has a NMFC Description of LOUDSPEAKER/SPEAKER W/HORN. 5965-01-630-8449 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34920 which rates the freight between FCL and LCL. 5965-01-630-8449 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5965-01-630-8449 is not classified as a special type of cargo when transported by water. 5965-01-630-8449 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5965-01-630-8449 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
