5965-01-248-6345
Electromagnetic Loudspeaker
5965012486345 012486345 EM-1A ACR/EM-1
A loudspeaker whose diaphragm movements are produced by a coil or iron armature moving in the field of an electromagnet or a fixed coil. View more Electromagnetic Loudspeaker
May 2023
12
Marketplace 5965-01-248-6345
Request a Quotation from participating marketplace vendors
Related Documents 5965-01-248-6345 5+ Documents (More...)
Updated Every Day 5965-01-248-6345 RQST NE ,EM-1A ,EM-1A ,EM-1A ,EM-1A ,EM-1A ,EM-1A ,EM-1A ,EM-1A ,
5820143709673143709673 enable JavaScript ,EM-1A ,EM-1A ,EM-1A ,EM-1A ,EM-1A ,EM-1A ,EM-1A ,EM-1A RQST
,EM-1A ,EM-1A ,EM-1A ,EM-1A ,EM-1A ,EM-1A ,EM-1A ,EM-1A RQST NE Updated Every Day 9999 ,EM-1A https
//www.nsnlookup.com /fsg-99/fsc-9999/be 9999-13-116-8200 9999131168200 131168200,EM-1A ,EM-1A ,EM-1A
,EM -1A ,EM -1A ,EM -1A ,EM -1A ,EM -1A ,EM -1A ,EM -1A ,EM -1A ,EM -1A ,EM -1A ,EM -1A ,EM -1A ,EM -
1A , EM -1A , EM -1A RQST ,EM- 1A ,EM -1A ,EM- 1A ,EM-1A , EM-1A ,EM -1A ,EM- 1A ,EM -1A , EM-1A 9999131168200131168200
Restrictions 5965-01-248-6345
5965-01-248-6345 is a Electromagnetic Loudspeaker that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5965-01-248-6345
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5965-01-248-6345
- Saudi Arabia (YS01)
- Effective Date:
- 1 Feb 2015
Approved Sources 5965-01-248-6345
- Part Number
- Manufacturer
- Status
- EM-1A
- Manufacturer
- 18560 - Acr Electronics, Inc. (Active)
- Primary Buy
- Primary Buy
- ACR/EM-1
- 18560 - Acr Electronics, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5965-01-248-6345
- Characteristic
- Specifications
- FIIG
- Specifications
- A11600
- Frequency Response Range In Hertz [AFYW]
- +300.0/+5000.0
- Horn Mounting Facility Quantity [AKNY]
- 3
- Horn Mounting Facility [AKNX]
- Unthreaded Hole
- Power Rating [AJDB]
- 5.00 Watts Peak

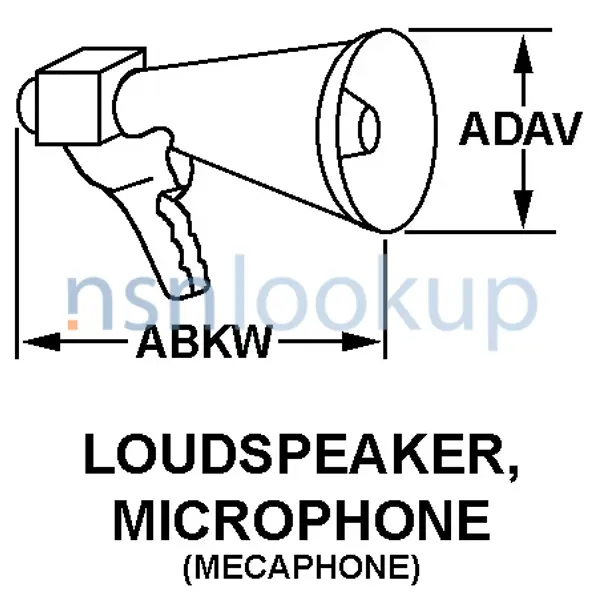

- Overall Diameter [ADAV]
- 5.125 Inches Nominal
- Overall Height [ABKW]
- 11.000 Inches Nominal
- Style Designator [STYL]
- Loudspeaker, Microphone
Weapon Systems (WSDC) 5965-01-248-6345
DLA Procurement Analysis 5965-01-248-6345
Management Data 5965-01-248-6345
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5965-01-248-6345
Freight Information 5965-01-248-6345
5965-01-248-6345 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063300. A Sub NMFC of H. It has a NMFC Description of TELEPHONE TELEPHONE PART VIZ: SUB 8. 5965-01-248-6345 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 5965-01-248-6345 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 35290 which rates the freight between FCL and LCL. 5965-01-248-6345 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5965-01-248-6345 is not classified as a special type of cargo when transported by water. 5965-01-248-6345 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5965-01-248-6345 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
