5965-00-669-8940
Earphone
5965006698940 006698940 SC-D-14632 MIL-H-12487 MX-240/U 133B1096A GA47
An item which converts electrical current variations into sound waves and which is designed to be placed against the ear or against the opening of the auditory canal. For one or two earphones mounted on a headband, see HEADSET, ELECTRICAL. View more Earphone
January 2023
17
Marketplace 5965-00-669-8940
Request a Quotation from participating marketplace vendors
Related Documents 5965-00-669-8940 2+ Documents (More...)
GA47 EARPHONE 1 EA NS Request Quotation Updated Every Day 5965-00-669-8940 RQST NE Updated Every Day
5965-00-669-8940 RQST Updated Every Day 5965-00-669-8940 RQST NE Related Documents 5965-00-669-8940 2
Restrictions Approved Sources Datasheet Management Every https//www.nsnlookup.com /fsg-59/fsc-5965/us 5965-00-669-8940
Earphone 5965006698940 006698940,SC-D-14632 8940 RQST NE Related Documents 5965-00-669-8940 2 https
Restrictions 5965-00-669-8940
5965-00-669-8940 is a Earphone that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5965-00-669-8940
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5965-00-669-8940
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 5965-00-669-8940
- Part Number
- Manufacturer
- Status
- SC-D-14632
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Incomplete Reference
- Incomplete Reference
- MIL-H-12487
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MX-240/U
- 80058 - Joint Electronics Type Designation (Active)
- Secondary Buy
- Secondary Buy
- 133B1096A
- 74110 - National Scientific Products Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- GA47
- 77196 - Permoflux Div Of Dx Radio And Tv (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5965-00-669-8940
- Characteristic
- Specifications
- FIIG
- Specifications
- A06800
- Earphone Cap Material [AHEU]
- Brass And Steel
- Earphone Element Type [AHEQ]
- Magnetic
- Earphone Mounting Method [AHEY]
- Diametrically Opposed Holes In Outside Periphery Of Case

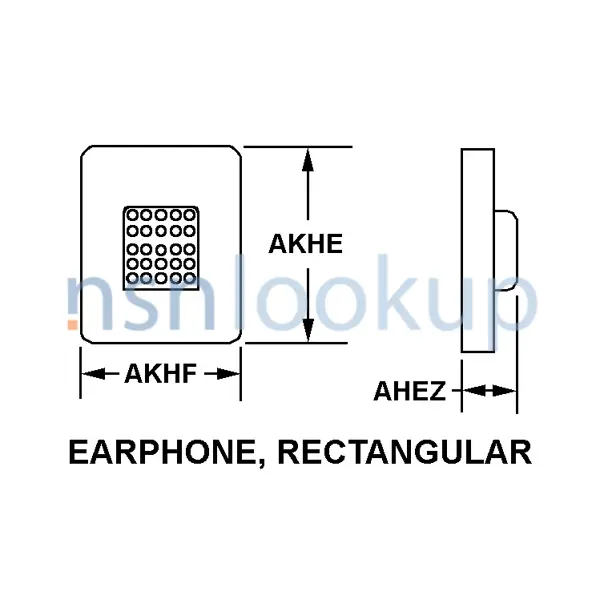

- Earphone Overall Height [AKHE]
- 2.875 Inches Nominal
- Earphone Overall Width [AKHF]
- 4.500 Inches Nominal
- Earphone Shell Material [AHEV]
- Brass And Steel
- Earphone Overall Depth [AHEZ]
- 1.875 Inches Nominal
- End Item Identification [AGAV]
- H-16/U
- Acoustic Sensitivity Reference Rating [AHFS]
- Not Rated
- Body Style [AAQL]
- Earphone, Rectangular
- Furnished Items [ABFF]
- Ear Cushion
- Impedance Matching Device Location [AHFQ]
- Earphone
- Impedance Matching Device Type [AHFP]
- Transformer
- Impedance Rating In Ohms [ACYW]
- 128.0 Minimum And 4000.0 Maximum
- Magnetic Shielding [AHFT]
- Not Included
- Signal Input Terminal Type [AHFZ]
- Screw
- Special Features [FEAT]
- Mounts On Left Side Of Headset H-16/U
- Terminal Location [AEEG]
- External
- Terminal Quantity [AARA]
- 2
- Terminal Type [AARB]
- Screw
Similar Supply Items to 5965-00-669-8940
Freight Information 5965-00-669-8940
5965-00-669-8940 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063300. A Sub NMFC of H. It has a NMFC Description of TELEPHONE TELEPHONE PART VIZ: SUB 8. 5965-00-669-8940 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 5965-00-669-8940 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 35290 which rates the freight between FCL and LCL. 5965-00-669-8940 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5965-00-669-8940 is not classified as a special type of cargo when transported by water. 5965-00-669-8940 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
