5965-00-296-3117
Dynamic Microphone
5965002963117 002963117 SM-C-283019 M-65/U TM226
A microphone which depends for its operation upon the generation of an electromotive force by the motion of a moving coil within a magnetic field. View more Dynamic Microphone
May 2023
9
Marketplace 5965-00-296-3117
Request a Quotation from participating marketplace vendors
Related Documents 5965-00-296-3117 5+ Documents (More...)
TM226 MICROPHONE,DYNAMIC 5 EA NS Request Quotation Updated Every Day 5965-00-296-3117 RQST NE Updated
Every Day 5965-00-296-3117 RQST Updated Every Day 5965-00-296-3117 RQST NE Related Documents 5965-00
enable JavaScript in your web browser . 7035-15-190-9870Posto Lavoro Portas7035151909870 151909870 TM226
https//www.nsnlookup.com /fsg-59/fsc-5965/us 5965-00-296-3117 Dynamic Microphone 5965002963117 002963117
TM226 MICROPHONE,DYNAMIC 5 EA NS Request Quotation Updated Every Day 5965-00-296-3117 RQST NE Updated
Dynamic Microphone 5965002963117 002963117 your Account Upgrade 5965-00-296-3117Dynamic Microphone5965002963117
enable JavaScript in your web browser . 7035-15-190 -9870Posto Lavoro Portas7035151909870 151909870 TM226
Portastampant 7045152132679152132679 Documents https//www.nsnlookup.com /fsg-59/fsc-5965/us 5965-00-296-3117
Restrictions 5965-00-296-3117
5965-00-296-3117 is a Dynamic Microphone that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5965-00-296-3117
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5965-00-296-3117
- National Security Agency (DGX1)
- Effective Date:
- 1 Feb 2013
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5965-00-296-3117
- Part Number
- Manufacturer
- Status
- SM-C-283019
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- M-65/U
- 80058 - Joint Electronics Type Designation (Active)
- Secondary Buy
- Secondary Buy
- M-65/U
- 80063 - Us Army Communications & Electronics (Active)
- Secondary Buy
- Secondary Buy
- TM226
- 33708 - Micacraft Products Co Inc (Active)
- Secondary Buy
- Secondary Buy
- TM226
- 0YMV8 - Hs Associates Corp (Active)
- Secondary Buy
- Secondary Buy
- TM226
- 30040 - Telectro Systems Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5965-00-296-3117
- Characteristic
- Specifications
- FIIG
- Specifications
- A06400
- Electrical Connection Type [AGBD]
- Integral Cable
- Accessory Components [AFHR]
- Connector

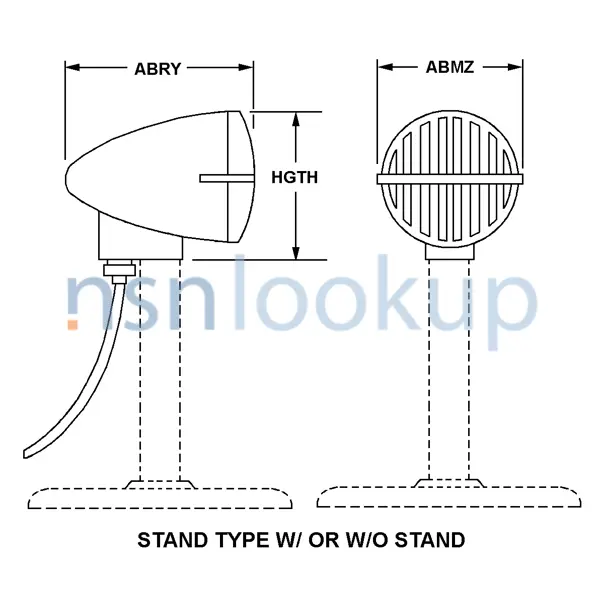

- Body Style [AAQL]
- Stand Type W/ Or W/O Stand
- Cable Conductor Quantity [AGBL]
- 2
- Cable Shielded Conductor Quantity [AGBM]
- 2
- Connector Identification [AGBG]
- Ml-3-11
- Connector Manufacturer Code [AEEE]
- 71468
- Extended Cable Length [AGBJ]
- 10.0 Feet Nominal
- Height [HGTH]
- 17.000 Inches Maximum
- Mounting Facility Thread Size [ABDT]
- 5/8-27 Uns
- Mounting Method [ADJH]
- Threaded Bushing
- Noise Canceling Feature [AGAZ]
- Not Included
- Output Sensitivity Rating In Decibels [AFZA]
- -50.0
- Output Sensitivity Rating Reference [AFZB]
- 0.1 Dynes Per Sq Centimeter
- Frequency Response Range In Hertz [AFYW]
- +100.0 To 10000.0
- Impedance Rating [AFYY]
- 150.0 Ohms Nominal
- Impedance Selection Method [AFYX]
- Solder Type Lead Positioning
- Length [ABRY]
- 17.000 Inches Nominal
- Polarity Connection [AGAX]
- Not Required
- Shock Mount [AGBC]
- Provided
- Sound Pickup Directional Type [AGAY]
- Omnidirectional
- Support Stand Height [AGBB]
- 13.0 Inches Maximum
- Support Stand [AGBA]
- Included
DLA Procurement Analysis 5965-00-296-3117
Management Data 5965-00-296-3117
Similar Supply Items to 5965-00-296-3117
Freight Information 5965-00-296-3117
5965-00-296-3117 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061700. A Sub NMFC of Z. It has a NMFC Description of ELEC APPLIANCES/INSTRUMENTS NOI. 5965-00-296-3117 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34580 which rates the freight between FCL and LCL. 5965-00-296-3117 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5965-00-296-3117 is not classified as a special type of cargo when transported by water. 5965-00-296-3117 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5965-00-296-3117
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- ASTM-D4727, Fiberboard used as Pads, Cells, Die-cuts or Sleeves
- --
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 5965-00-296-3117 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
