5961-00-865-0685

Diode Semiconductor Device

5961008650685 008650685 RELEASE5452 300-10359-12 755-817927 6L.5532.278-1N5060 755-877927 8437467 F00001-7 D58816-1-84 A14D ASC1276785 1945748 1N5060 1N5060A 78501331 9000-040-004

A two electrode semiconductor device having an asymmetrical voltage - current characteristic. May or may not include mounting hardware and/or heatsink. Excludes LIGHT EMITTING DIODE and SEMICONDUCTOR DEVICE,PHOTO. For items containing material such as selenium and copper oxide, see RECIFIER, METALLIC. View more Diode Semiconductor Device

Managed by United States

NSN Created on 13 Oct 1967

Data Last Changed
January 2024

NATO Update Count
57

NATO Data Quality

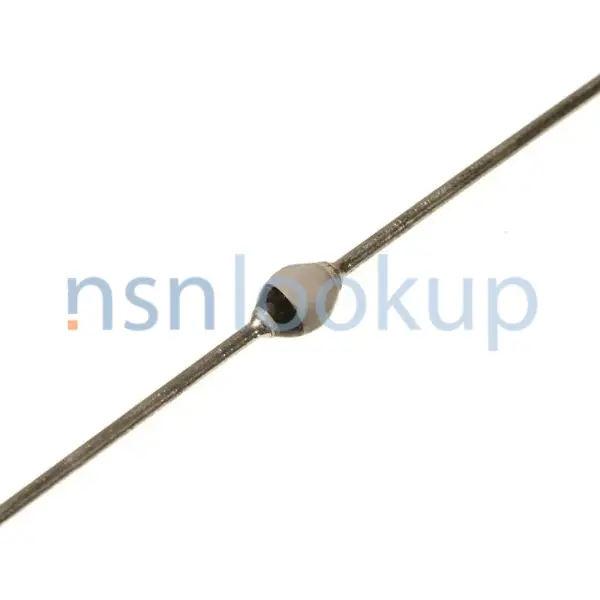

5961-00-865-0685 SEMICONDUCTOR DEVICE,DIODE 5961008650685 008650685 1/1 — NSN 5961-00-865-0685 (Generic Image) 1/1
