5961-00-439-3731

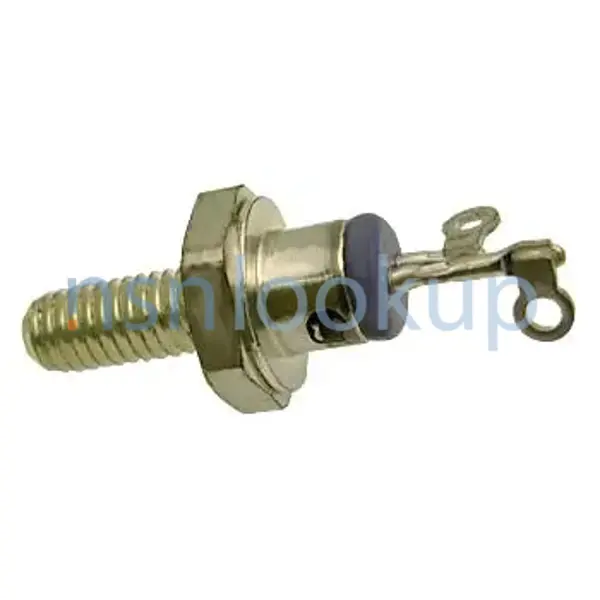

Thyristor Semiconductor Device
5961004393731 004393731 MIL-S-19500/372 2N4204 2995332 SCR1020 C-40N C139N10M 418996-6 533009-6 JAN2N4204 JAN2N4204A
A bistable semiconductor device comprising three or more junctions which is normally a nonconductor until the application of a signal to a gate terminal, at which time the device switches to the conductive state. Includes devices capable of being switched back to the nonconductive state upon application of a different signal to the same or another gate terminal. May or may not include mounting hardware and/or heatsink. For solid state devices which are responsive to visible or infrared radiant energy, see SEMICONDUCTOR DEVICE, PHOTO. View more Thyristor Semiconductor Device
November 2023
53
Marketplace 5961-00-439-3731
Request a Quotation from participating marketplace vendors
Related Documents 5961-00-439-3731 5+ Documents (More...)
NE Updated Every Day 5961-00-439-3731 RQST Updated Every Day 5961-00-439-3731 RQST NE Related Documents
5961-00-439-3731 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5961/us 5961-00-439-3731
Thyristor Semiconductor Device 5961004393731 Semiconductor Device5961004393731 004393731 MIL-S-
19500/372 2N4204 2995332 SCR1020 C-40N C139N10M 418996 Respirator Parts Kit 4240145484188145484188 enable
Documents ( More... ) https//www.nsnlookup.com https//www.nsnlookup.com /fsg-59/fsc-5961/us 5961-00-439-3731
Thyristor Semiconductor Device 5961004393731 5961004393731 Semiconductor Device5961004393731 https
Thyristor Semiconductor Device 5961004393731 Semiconductor Device5961004393731 004393731 MIL-S-
19500/372 2N4204 2995332 SCR1020 C-40N C139N10M 418996 548-4188 Respirator Parts Kit 4240145484188 145484188
3731 SEMICONDUCTOR DEVICE,THYRISTOR 4 EA NS Request Quotation Subscribe to View Vendor Details... 2N4204
SEMICONDUCTOR DEVICE,THYRISTOR 4 EA NS Request Quotation Subscribe to View Vendor Details... 2N4204
Restrictions 5961-00-439-3731
5961-00-439-3731 is a Thyristor Semiconductor Device that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5961-00-439-3731
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5961-00-439-3731
- MOE Rule:
- B481
- Effective Date:
- 20 Oct 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Jan 2004
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5961-00-439-3731
- Part Number
- Manufacturer
- Status
- JAN2N4204
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-S-19500/372
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- JAN2N4204
- C7191 - Adelco Elektronik Gmbh (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- JAN2N4204A
- C7191 - Adelco Elektronik Gmbh (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5961004393731
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5961004393731
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 2N4204
- 04713 - Freescale Semiconductor, Inc. (Active)
- Advisory Reference
- Advisory Reference
- 2995332
- 87557 - Lockheed Corp (Obsolete)
- Advisory Reference
- Advisory Reference
- SCR1020
- 04713 - Freescale Semiconductor, Inc. (Active)
- Advisory Reference
- Advisory Reference
- C-40N
- 83781 - National Electronics (Active)
- Advisory Reference
- Advisory Reference
- C139N10M
- 03508 - General Electric Co Semi-Conductor (Obsolete)
- Advisory Reference
- Advisory Reference
- 418996-6
- 96214 - Raytheon Company (Active)
- Advisory Reference
- Advisory Reference
- 533009-6
- 96214 - Raytheon Company (Active)
- Advisory Reference
- Advisory Reference
- JAN2N4204
- D6528 - Lacon Electronic Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 2995332
- 10001 - Navair And Navsea Managed Original (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5961-00-439-3731
- Characteristic
- Specifications
- FIIG
- Specifications
- A110A0
- Electrode Internally-Electrically Connected To Case [ALBA]
- Anode
- End Item Identification [AGAV]
- Kidd Class Ddg; Virginia Class Cgn (41); 2M/Ate Microminiauture Automatic Test Equipment; Aircraft, (Ac-130H, Mc-130H, Ec-130E, Hc-130); Ticonder
- Criticality Code Justification [CRTL]
- Feat
- Current Rating Per Characteristic [CTQX]
- 2.00 Amperes Source Cutoff Current Preset
- Maximum Operating Temp Per Measurement Point [CTSG]
- 100.0 Deg Celsius Junction
- Mounting Facility Quantity [AKPV]
- 1
- Mounting Method [AXGY]
- Threaded Stud
- Nominal Thread Size [CQJX]
- 0.190 Inches
- Semiconductor Material [CTMZ]
- Silicon
- Inclosure Material [ABBH]
- Metal
- Power Rating Per Characteristic [CTRD]
- 20.0 Watts Small-Signal Input Power, Common-Collector Blank
- Overall Length [ABHP]
- 1.308 Inches Maximum
- Overall Width Across Flats [CCDG]
- 0.424 Inches Minimum And 0.437 Inches Maximum
- Special Features [FEAT]
- Weapon System Essential
- Voltage Rating In Volts Per Characteristic [CTQN]
- 800.0 Nominal Breakover Voltage, Dc
- Specification/Standard Data [ZZZK]
- 81349-Mil-S-19500/372 Government Specification
- Terminal Type And Quantity [TTQY]
- 2 Tab, Solder Lug And 1 Threaded Stud
- Test Data Document [TEST]
- 81349-Mil-S-19500 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Series Designator [THSD]
- Unf
Similar Supply Items to 5961-00-439-3731
Freight Information 5961-00-439-3731
5961-00-439-3731 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063025. A Sub NMFC of Z. It has a NMFC Description of SEMICONDUCTORS/DEVICES NOI ETC. 5961-00-439-3731 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34525 which rates the freight between FCL and LCL. 5961-00-439-3731 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5961-00-439-3731 is not classified as a special type of cargo when transported by water. 5961-00-439-3731 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
