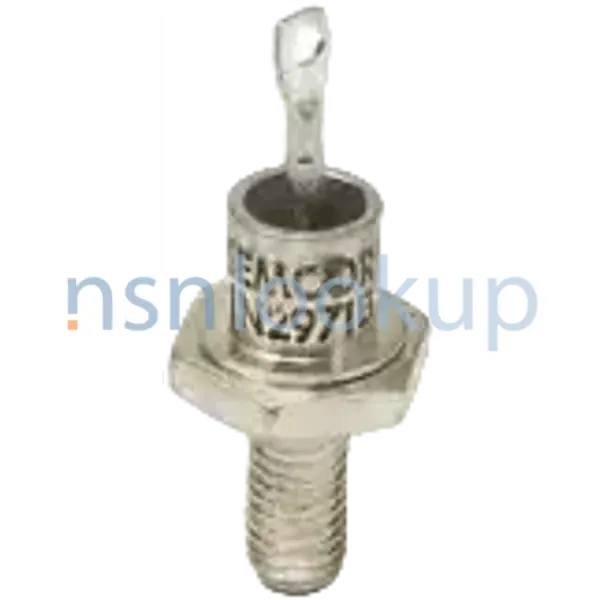

5961-00-069-6703
Diode Semiconductor Device
5961000696703 000696703 1N2971B 2470458
A two electrode semiconductor device having an asymmetrical voltage - current characteristic. May or may not include mounting hardware and/or heatsink. Excludes LIGHT EMITTING DIODE and SEMICONDUCTOR DEVICE,PHOTO. For items containing material such as selenium and copper oxide, see RECIFIER, METALLIC. View more Diode Semiconductor Device
September 2025
26
Marketplace 5961-00-069-6703
Request a Quotation from participating marketplace vendors
Related Documents 5961-00-069-6703 5+ Documents (More...)
Diode Semiconductor Device 5961000696703 Details... 1N2971B https//www.nsnlookup.com /fsg-59/fsc Diode
Diode Semiconductor Device 5961000696703 Supply Items to 9999-22-609-4520 5961-00-069-6703 https
Diode Semiconductor Device 5961000696703 Upgrade your Account Upgrade 5961-00-069-6703Diode https
Device 9999226080314 Sources Diode Semiconductor Device 9999226080314 https Semiconductor Device 5961000696703
Diode Semiconductor Device 5961000696703 fsg-59/fsc-5961/us 5961-00-069-6703 Diode Semiconductor
Device 5961000696703 Supply Items to 9999-22-609-4520 Supply Items to 9999-22-608-0314 5961-00-069-6703
Diode Semiconductor Device 5961000696703 Details... 1N2971B https//www.nsnlookup.com /fsg-59/fsc
Diode Semiconductor Device 5961000696703 day Upgrade your Account Upgrade 5961-00-069-6703Diode
417-5903 5961-14-470-1554 5961-12-702-7688 5961-14-415-9511 5961-01-023-3449 5961-00-063-8518 5961-00-069-6703
Restrictions 5961-00-069-6703
5961-00-069-6703 is a Diode Semiconductor Device that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5961-00-069-6703
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5961-00-069-6703
- Brazil (YA01)
- Effective Date:
- 1 Jan 2011
- Malaysia (YW01)
- Effective Date:
- 1 Jul 1993
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Feb 1997
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 2005
- Turkey (ZW01)
- Effective Date:
- 1 Dec 1995
Approved Sources 5961-00-069-6703
- Part Number
- Manufacturer
- Status
- 2470458
- Manufacturer
- 10001 - Navair And Navsea Managed Original (Active)
- Primary Buy
- Primary Buy
- 1N2971B
- 04713 - Freescale Semiconductor, Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 1N2971B
- 81483 - Infineon Technologies Americas Corp (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 1N2971B
- 51182 - Diodes Inc (Obsolete)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 1N2971B
- 12954 - Microsemi Corp.-Scottsdale (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 1N2971B
- 24444 - General Semiconductor Industries Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5961-00-069-6703
- Characteristic
- Specifications
- FIIG
- Specifications
- A110A0
- Current Rating Per Characteristic [CTQX]
- 335.00 Milliamperes Maximum Maximum Reverse Surge Current
- Features Provided [CBBL]
- Mounting Hardware
- Maximum Operating Temp Per Measurement Point [CTSG]
- 175.0 Deg Celsius Ambient Air
- Mounting Facility Quantity [AKPV]
- 1
- Mounting Method [AXGY]
- Terminal And Threaded Stud
- Nominal Thread Size [CQJX]
- 0.190 Inches
- Inclosure Material [ABBH]
- Glass And Metal
- Power Rating Per Characteristic [CTRD]
- 10.0 Watts Small-Signal Input Power, Common-Collector Preset
- Semiconductor Material [CTMZ]
- Silicon
- Overall Length [ABHP]
- 0.800 Inches Maximum
- Overall Width Across Flats [CCDG]
- 0.424 Inches Minimum And 0.437 Inches Maximum
- Voltage Rating In Volts Per Characteristic [CTQN]
- 7.5 Maximum Nominal Regulator Voltage
- Terminal Length [ABJT]
- 0.375 Inches Minimum
- Terminal Type And Quantity [TTQY]
- 1 Threaded Stud And 1 Tab, Solder Lug
- Thread Series Designator [THSD]
- Unf
Similar Supply Items to 5961-00-069-6703
Freight Information 5961-00-069-6703
5961-00-069-6703 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063025. A Sub NMFC of Z. It has a NMFC Description of SEMICONDUCTORS/DEVICES NOI ETC. 5961-00-069-6703 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34525 which rates the freight between FCL and LCL. 5961-00-069-6703 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5961-00-069-6703 is not classified as a special type of cargo when transported by water. 5961-00-069-6703 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5961-00-069-6703
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
