5960-01-487-4790
Electron Tube Shield
5960014874790 014874790 MIL-DTL-24251/6 MS24251-6-2
An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified). View more Electron Tube Shield
January 2023
3
Marketplace 5960-01-487-4790
Request a Quotation from participating marketplace vendors
Related Documents 5960-01-487-4790 5+ Documents (More...)
5960-01-487-4790 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5960/us 5960-01-487-4790
RQST Updated Every Day 5960-01-487-4790 RQST NE Related Documents 5960-01-487-4790 5+ Documents
Electron Tube Shield 5960014874790 014874790 01-487-4790 5+ Documents ( More... ) https//www.nsnlookup.com
/fsg-59/fsc-5960/us 5960-01-487-4790 890385 014874791 Definitive Standard RNCC 2 RNVC 2 DAC 3 https/
fsc-5960/us 5960-01-487-4791014874791 Definitive https//www.nsnlookup.com /fsg-59/fsc-5960/us 5960-01-487-4790
Electron Tube Shield 5960014874790 014874790 day Upgrade your Account Upgrade 5960-01-487-4790Electron
Electron Tube Shield 5960014874790 014874790 5960-01-487-4790Electron Tube Shield5960014874790
308-1001P2 7S3 930 9701 587C35-72 1737574-41 S18CL 522-0442-003 1501128153 7423334P2 MS24233-2 MS24251-6-2
Electron Tube Shield 5960014874790 014874790 day Upgrade your Account Upgrade 5960-01-487-4790Electron
Restrictions 5960-01-487-4790
5960-01-487-4790 is a Electron Tube Shield that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5960-01-487-4790
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5960-01-487-4790
- Turkey (ZW01)
- Effective Date:
- 1 Aug 2001
Approved Sources 5960-01-487-4790
- Part Number
- Manufacturer
- Status
- MS24251-6-2
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-24251/6
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5960-01-487-4790
- Characteristic
- Specifications
- FIIG
- Specifications
- A062A0
- Eia Electron Tube Envelope Accommodated [AGTS]
- T5 1/2
- Accommodated Item Securing Device Type [AGTM]
- Spring Mounted Plug
- Features Provided [CBBL]
- Liner
- Material [MATT]
- Aluminum Alloy And Beryllium
- Mounting Facility Type And Quantity [AXHR]
- 7 Plug-In Single Mounting Facility
- Material Document And Classification [MDCL]
- Astmb196 Assn Std 1St Material Response And Astmb197 Assn Std 1St Material Response And Astmb194 Assn Std 1St Material Response And Astmb194 Assn Std 2Nd Material Response

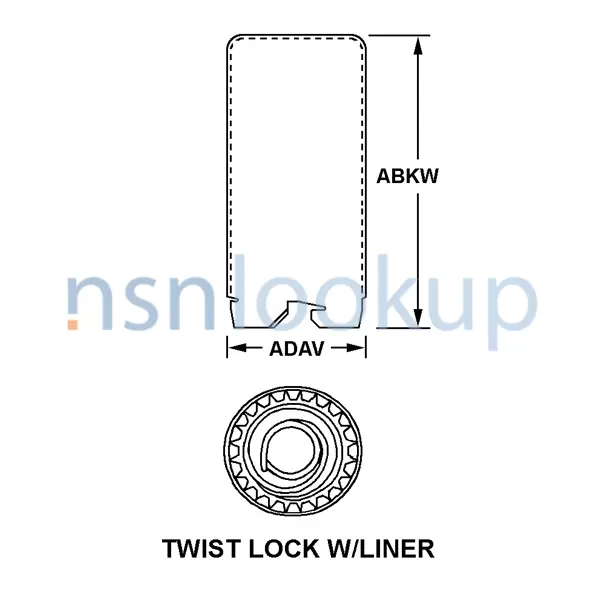

- Overall Diameter [ADAV]
- 22.23 Millimeters Nominal
- Overall Height [ABKW]
- 50.80 Millimeters Nominal
- Tube Envelope Accommodated Maximum Diameter [AGTU]
- 38.10 Millimeters
- Style Designator [STYL]
- Twist Lock W/Liner
- Surface Treatment Document And Classification [STDC]
- Qq-P-416, Class 1, Type Ii Fed Spec 1St Treatment Response
- Surface Treatment [SFTT]
- Cadmium And Anodize
Similar Supply Items to 5960-01-487-4790
Freight Information 5960-01-487-4790
5960-01-487-4790 has freight characteristics managed by Turkey.. 5960-01-487-4790 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
