5960-00-686-8119
Electron Tube Shield
5960006868119 006868119 MILS9372 MS24233-1 M7472349P5 B3445-1-1 HTS7 5M4331-220-44 5800334-5552-000
An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified). View more Electron Tube Shield
January 2023
39
Marketplace 5960-00-686-8119
Request a Quotation from participating marketplace vendors
Related Documents 5960-00-686-8119 5+ Documents (More...)
MS24233-1 SHIELD,ELECTRON TUBE 38 EA NS Request Quotation Updated Every Day 5960-00-686-8119 RQST NE
Updated Every Day 5960-00-686-8119 RQST Updated Every Day 5960-00-686-8119 RQST NE Related Documents
MS24233-1 SHIELD,ELECTRON TUBE 1 EA NS Request Quotation Subscribe to View Vendor Details...
MS24233-1 SHIELD,ELECTRON TUBE 83 EA NS Request Quotation Subscribe to View Vendor Details...
MS24233-1 SHIELD,ELECTRON TUBE 1 EA NS Request Quotation Subscribe to View Vendor Details...
MS24233-1 SHIELD,ELECTRON TUBE 83 EA NS Request Quotation Subscribe to View Vendor Details...
MS24233-1 SHIELD,ELECTRON TUBE 1 EA NS Request Quotation Subscribe to View Vendor Details...
MS24233-1 SHIELD,ELECTRON TUBE 83 EA NS Request Quotation Subscribe to View Vendor Details...
MS24233-1 SHIELD,ELECTRON TUBE 1 EA NS Request Quotation Subscribe to View Vendor Details...
MS24233-1 SHIELD,ELECTRON TUBE 83 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5960-00-686-8119
5960-00-686-8119 is a Electron Tube Shield that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5960-00-686-8119
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5960-00-686-8119
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5960-00-686-8119
- Part Number
- Manufacturer
- Status
- HTS7
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MILS9372
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MS24233-1
- 96906 - Military Standards (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 5M4331-220-44
- D1901 - Hensoldt Sensors Gmbh (Active)
- Secondary Buy
- Secondary Buy
- 5800334-5552-000
- D8385 - Thales Deutschland Gmbh (Active)
- Secondary Buy
- Secondary Buy
- M7472349P5
- 24446 - General Electric Company (Active)
- Advisory Reference
- Advisory Reference
- B3445-1-1
- 55631 - Scomill Inc (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 5960-00-686-8119
- Characteristic
- Specifications
- FIIG
- Specifications
- A062A0
- Eia Electron Tube Envelope Accommodated [AGTS]
- T5-1/2
- Accommodated Item Securing Device Type [AGTM]
- Twist Lock
- Features Provided [CBBL]
- W/Electrode Lead Insertion
- Material Document And Classification [MDCL]
- Qq-C-533 Fed Spec Single Material Response
- Material [MATT]
- Copper Alloy 172
- Mounting Facility Type And Quantity [AXHR]
- 1 Twist Lock Single Mounting Facility
- Overall Diameter [ADAV]
- 0.875 Inches Nominal
- Overall Height [ABKW]
- 1.500 Inches Nominal

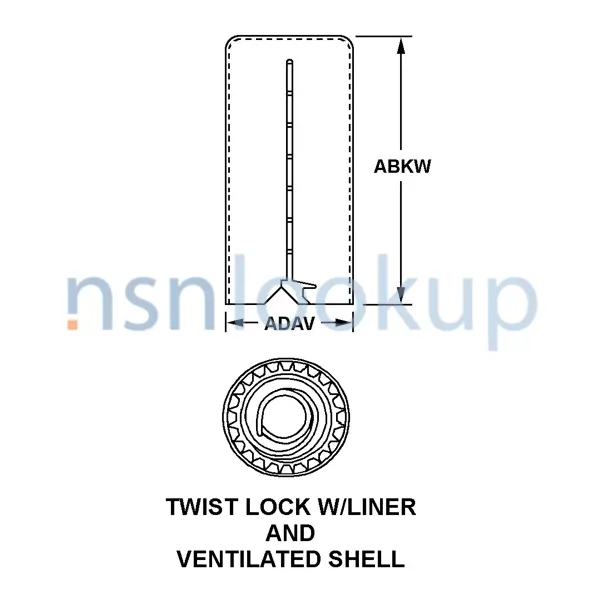

- Style Designator [STYL]
- Twist Lock W/Liner And Ventilated Shell
- Surface Treatment Document And Classification [STDC]
- Mil-A-8625 Mil Spec Single Treatment Response
- Surface Treatment [SFTT]
- Anodize
Similar Supply Items to 5960-00-686-8119
Freight Information 5960-00-686-8119
5960-00-686-8119 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 030160. A Sub NMFC of Z. It has a NMFC Description of BRASS,BRONZE/COPPER ARTICLES. 5960-00-686-8119 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 14720 which rates the freight between FCL and LCL. 5960-00-686-8119 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5960-00-686-8119 is not classified as a special type of cargo when transported by water. 5960-00-686-8119 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
