5955-00-767-7941

Electrical-Electronic Components Oven

5955007677941 007677941 881-430340 PSA101-22 666068-074 195-0006-500 20-6842 881-410634 5070766 A881-402538 881-412796 13-5696 ER0X160BMS 1016707

An electrically heated compartment designed to accommodate and maintain at an essentially constant temperature, one or more components, such as, CRYSTAL UNIT(S), QUARTZ; tuned circuits; integrated circuit devices; and semiconductors. It prevents frequency drift and changes in teperature. View more Electrical-Electronic Components Oven

Managed by United States

NSN Created on 1 Jan 1960

Data Last Changed
November 2023

NATO Update Count
22

NATO Data Quality

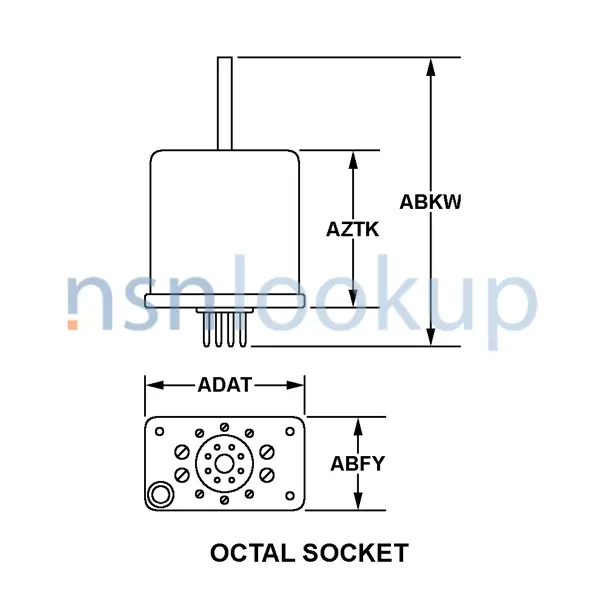

STYL Style 6A for 5955-00-767-7941 1/1 — NSN 5955-00-767-7941 (Identification) 1/1

Marketplace 5955-00-767-7941

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

PSA101-22 OVEN,ELECTRICAL-ELECTRONIC COMPONENTS 12 EA NS

Subscribe to View Vendor Details...

PSA101-22 OVEN,ELECTRICAL-ELECTRONIC COMPONENTS 21 EA NS

Updated Every Day

5955-00-767-7941 RQST NE

Updated Every Day

5955-00-767-7941 RQST

Updated Every Day

5955-00-767-7941 RQST NE

Related Documents 5955-00-767-7941 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-59/fsc-5955/us

5955-00-767-7941 Electrical-Electronic Components Oven

881-430340 PSA101-22 666068-074 195-0006-500 20-6842 881-410634 5070766 A881-402538 881-412796 13-5696
ER0X160BMS 1016707 An electrically heated compartment designed to accommodate and maintain at an essentially
PSA101-22 OVEN,ELECTRICAL-ELECTRONIC COMPONENTS 21 EA NS Request Quotation Updated Every Day 5955-00-

https//www.nsnlookup.com
/fsg-59/fsc-5955/us

5955-00-841-8282 Electrical-Electronic Compo Oven 008418282

PSA101-22 OVEN,ELECTRICAL-ELECTRONIC COMPO 21 EA NS Request Quotation Updated Every Day 5955-00-841-8282
Electrical-Electronic Components https//www.nsnlookup.com /fsg-59/fsc-5955/us 5955-00-767-7941
www.nsnlookup.com /fsg-59/fsc-5955/us 5955-00-841-8282 Electrical-Electronic Compo Oven 008418282 PSA101-22

https//www.nsnlookup.com
/fsg-59/fsc-5955/us

5955-00-776-9052 Electrical-Electronic Compo Oven 007769052

PSA101-22 OVEN,ELECTRICAL-ELECTRONIC COMPO 21 EA NS Request Quotation Related Documents 5955-00-776-9052
007769052 United States (US) 4. 5955-00-776-9052 https//www.nsnlookup.com /fsg-59/fsc-5955/us 5955-00-767-7941
Electrical-Electronic Components Oven -5955/us 5955-00-767-7941 Electrical-Electronic Components

https//www.nsnlookup.com
/fsg-30/fsc-3020/us

3020-00-333-1705 Spur Gear 3020003331705 003331705,412796

Electromagnetic Relay 5945008798219008798219 412796 https//www.nsnlookup.com /fsg-59/fsc-5955/us 5955-00-767-7941
Electrical-Electronic Components Oven 007677941 881-430340 PSA101-22 666068-074 195-0006-500 20
-6842 881-410634 5070766 A881-402538 881-412796 NS Request Quotation Updated Every Day 5955-00- https

https//www.nsnlookup.com
/fsg-48/fsc-4820/us

4820-01-164-0003 Valve Seat 4820011640003 011640003

Upgrade 4820-01-164-0003Valve Seat4820011640003 https//www.nsnlookup.com /fsg-59/fsc-5955/us 5955-00-767-7941
Electrical-Electronic Components Oven 7941Electrical-Electronic Components Oven5955007677941 007677941
881-430340 PSA101-22 666068-074 195-0006-500 20-6842 881-410634 Electrical-Electronic Compo Oven 008418282

Restrictions 5955-00-767-7941

5955-00-767-7941 is a Electrical-Electronic Components Oven that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 5955-00-767-7941

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5955-00-767-7941

US Army (A918)
Effective Date:: 1 Jun 2006
Former MOE Rule:: A196; AMC 1 AMSC C IMC Z IMCACTY CD

Canada (ZC01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 2005

Approved Sources 5955-00-767-7941

Part Number
Manufacturer
Status
881-430340: 53110 - Viasys Respiratory Care Inc. (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
PSA101-22: 53110 - Viasys Respiratory Care Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
666068-074: 12436 - Bae Systems Information And (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
195-0006-500: 13571 - Electronic Research Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
20-6842: 53110 - Viasys Respiratory Care Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
881-410634: 53110 - Viasys Respiratory Care Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5070766: 74306 - Piezo Crystal Co (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
A881-402538: 53110 - Viasys Respiratory Care Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
881-412796: 53110 - Viasys Respiratory Care Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
13-5696: 53110 - Viasys Respiratory Care Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
ER0X160BMS: 96762 - Electronic Research Associates Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
195-0006-500: 51774 - Q-Tech Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
PSA101-22: 12020 - Oak Crystal Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
1016707: 56232 - Lockheed Martin Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1

Datasheet 5955-00-767-7941

Characteristic
Specifications
FIIG: A144A0
Body Overall Height [AZTK]: 4.062 Inches Nominal
Body Width [ADAT]: 1.875 Inches Nominal
Component Type And Quantity Accommodated [CZEH]: 1 Crystal
Crystal Holder Designator [AYNE]: Hc-6/U
Furnished Crystal Unit Specified Frequency [CKSC]: 1.000 Megahertz
Heater Element Operating Voltage Rating In Volts And Type [AYNJ]: 115.0 Ac Nominal
Style Designator [STYL]: Octal Socket
Inclosure Type [AKNA]: Inclosed
Maintained Temp Tolerance Rating [AYNG]: -2.0/+2.0 Deg Celsius
Maintained Oven Cavity Temp Rating [AYNF]: 75.0 Deg Celsius
Overall Depth [ABFY]: 1.500 Inches Nominal
Overall Height [ABKW]: 4.500 Inches Maximum
Terminal Type And Quantity [TTQY]: 8 Standard Tube Base

Subscribe
View Data

DLA Procurement Analysis 5955-00-767-7941

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5955-00-767-7941

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2019: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

Q: Electronics Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Similar Supply Items to 5955-00-767-7941

Freight Information 5955-00-767-7941

5955-00-767-7941 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062200. A Sub NMFC of X. It has a NMFC Description of HEAT REGULATING APPARATUS AUTOMATIC. 5955-00-767-7941 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34810 which rates the freight between FCL and LCL. 5955-00-767-7941 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5955-00-767-7941 is not classified as a special type of cargo when transported by water. 5955-00-767-7941 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5955-00-767-7941

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"; 85 to 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
