5945-01-481-9061
Electrical Solenoid
5945014819061 014819061 MAR-8RH-8
An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR. View more Electrical Solenoid
May 2023
4
Marketplace 5945-01-481-9061
Request a Quotation from participating marketplace vendors
Related Documents 5945-01-481-9061 1+ Documents (More...)
United States (US) 4. 5945-01-481-9061 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Updated Every Day 5945-01-481-9061
Restrictions 5945-01-481-9061
5945-01-481-9061 is a Electrical Solenoid that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5945-01-481-9061
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5945-01-481-9061
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTHXHD
Approved Sources 5945-01-481-9061
- Part Number
- Manufacturer
- Status
- MAR-8RH-8
- Manufacturer
- 1MEG0 - Natural Gas Solutions North America (Active)
- Primary Buy
- Primary Buy
- MAR-8RH-8
- 17950 - Texsteam Inc Dba Txt Or Rcs Or (Replaced)
- Original Design
- Original Design
Datasheet 5945-01-481-9061
- Characteristic
- Specifications
- FIIG
- Specifications
- A134A0
- Duty Type [APNP]
- Continuous
- End Item Identification [AGAV]
- Nimitz Class Cvn
- Actuator Length [AFGK]
- 0.500 Inches Nominal
- Actuator Stroke Type [CNXT]
- Rotary
- Case Material [ADTV]
- Any Acceptable
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 1.500 Inches Nominal
- Environmental Protection [ADZC]
- Corrosion Proof And Watertight

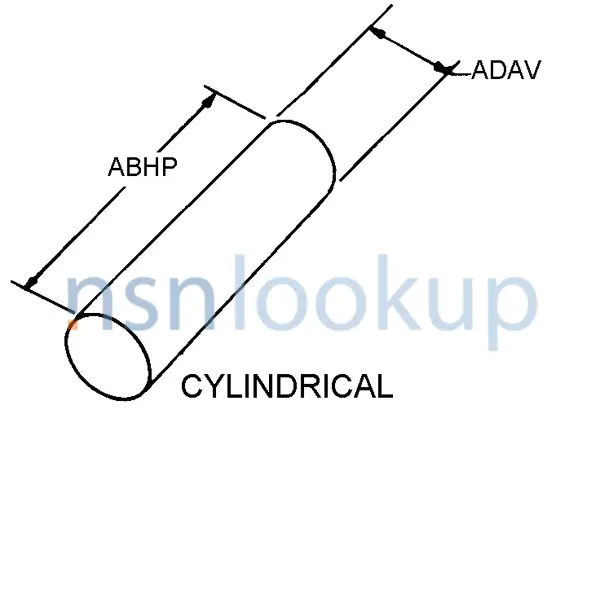

- Body Style [AAQL]
- Cylindrical
- Mounting Facility Type And Quantity [AXHR]
- 4 Threaded Hole
- Mounting Facility Pattern [CQYJ]
- Four Position Circular
- Nominal Thread Size [CQJX]
- 0.190 Inches Mounting Facility All Locations
- Inclosure Type [AKNA]
- Fully Inclosed
- Magnetic Coil Quantity [APAF]
- 3
- Power Takeoff Connection Type [CNXX]
- Flatted Both Sides
- Rotation Direction And Energizing Stroke In Angular Deg [CSQY]
- 90.0 Clockwise Or 90.0 Counterclockwise
- Overall Diameter [ADAV]
- 6.120 Inches Nominal
- Overall Length [ABHP]
- 7.470 Inches Nominal
- Special Features [FEAT]
- Built-In Motor Overload Protection
- Thread Series Designator [THSD]
- Unc Mounting Facility All Locations
- Torque Rating And Type [BKPH]
- 300.00 Inch-Pounds Starting
- Voltage Rating In Volts [ASXH]
- 120.0 Ac Minimum And 220.0 Ac Maximum
- Terminal Location [APXH]
- Both Sides On Actuator End
- Terminal Type And Quantity [TTQY]
- 5 Wire Lead
