5945-01-442-8896
Electrical Solenoid
5945014428896 014428896 73132 00-270380
An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR. View more Electrical Solenoid
January 2023
3
Marketplace 5945-01-442-8896
Request a Quotation from participating marketplace vendors
Related Documents 5945-01-442-8896 5+ Documents (More...)
RQST NE Updated Every Day 5945-01-442-8896 RQST Updated Every Day 5945-01-442-8896 RQST NE Related Documents
5945-01-442-8896 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5945/us 5945-01-442-8896
Electrical Solenoid 5945014428896 014428896 Upgrade your Account Upgrade 5945-01-442-8896Electrical
Solenoid5945014428896 014428896 73132 00-270380 www.nsnlookup.com /fsg-59/fsc-5945/us 5945-01-442-8896
/fsg-61/fsc-6110/us
-6110/us 6110-00-152-0271 Power Distribution Panel 6110001520271 9000S6201-73132ALT2TYPEA9000S6201-73132
Electrical Solenoid 5945014428896 014428896 Power Distribution Panel 6110001520271 6110-00-152-
/fsg-31/fsc-3120/us
https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120-00-541-9749 Sleeve Bushing 3120005419749005419749 33-73132
Electrical Solenoid 5945014428896 014428896 6110001520271 9000S6201-73132ALT2TYPEA9000S6201-73132
A panel designed for connecting, disconnecting and protecting -73132 -6110/us 6110-00-152 6110-00-152
Electrical Solenoid 5945014428896 014428896 for $1 a day Upgrade your Account Upgrade 5945-01-442
Restrictions 5945-01-442-8896
5945-01-442-8896 is a Electrical Solenoid that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5945-01-442-8896
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5945-01-442-8896
- Canada (ZC01)
- Effective Date:
- 1 Mar 1997
- Turkey (ZW01)
- Effective Date:
- 1 Feb 2015
Approved Sources 5945-01-442-8896
- Part Number
- Manufacturer
- Status
- 73132
- Manufacturer
- 81978 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
- 73132
- 93781 - Parker-Hannifin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 00-270380
- 28873 - Itw Food Equipment Group Llc (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5945-01-442-8896
- Characteristic
- Specifications
- FIIG
- Specifications
- A134A0
- Duty Type [APNP]
- Continuous
- Electric Power Rating [ARQE]
- 9.0 Watts Nominal
- Actuator Stroke Type [CNXT]
- Pull

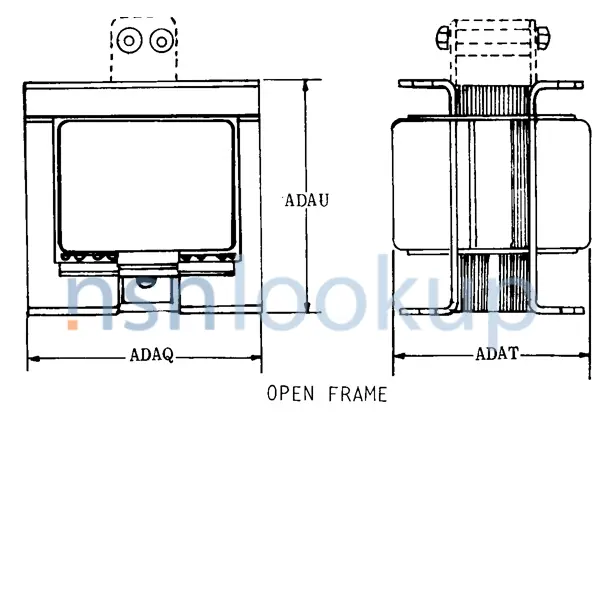

- Body Height [ADAU]
- 1.931 Inches Nominal
- Body Length [ADAQ]
- 1.813 Inches Nominal
- Body Width [ADAT]
- 1.391 Inches Nominal
- Body Style [AAQL]
- Open Frame
- Inclosure Type [AKNA]
- Fully Inclosed
- Magnetic Coil Quantity [APAF]
- 1
- Power Takeoff Connection Type [CNXX]
- Plain-Drilled
- Voltage Rating In Volts [ASXH]
- 110.0 Ac Minimum And 120.0 Ac Maximum
- Terminal Location [APXH]
- Base
- Terminal Type And Quantity [TTQY]
- 2 Tab, Solder Lug
Similar Supply Items to 5945-01-442-8896
Freight Information 5945-01-442-8896
5945-01-442-8896 has freight characteristics managed by Canada.It has a National Motor Freight Classification (NMFC) of 063100. A Sub NMFC of X. It has a NMFC Description of SOLENOIDS/PARTS W/WO ARMATURES. 5945-01-442-8896 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35185 which rates the freight between FCL and LCL. 5945-01-442-8896 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5945-01-442-8896 is not classified as a special type of cargo when transported by water. 5945-01-442-8896 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
