5945-01-291-0734

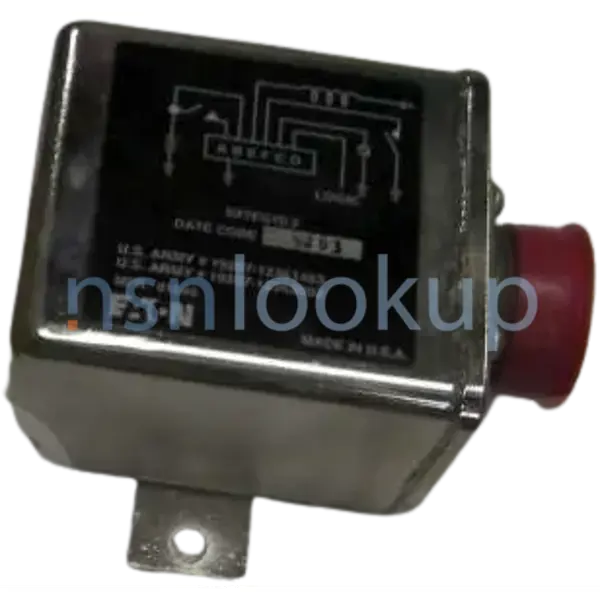

Electromagnetic Relay
5945012910734 012910734 12363092 SX7EG10-3 SX7EG10-2 12361483
A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING. View more Electromagnetic Relay
March 2025
26
Marketplace 5945-01-291-0734
Request a Quotation from participating marketplace vendors
Related Documents 5945-01-291-0734 5+ Documents (More...)
United States (US) 4. 5945-01-291-0734 Marketplace Restrictions Approved Sources Datasheet Management
5945-01-291-0734 RQST Updated Every Day 5945-01-291-0734 RQST NE Related Documents 5945-01-291-0734
Related Documents 5945-01-311-6857 2+ Documents RQST https//www.nsnlookup.com /fsg-59/fsc-5945/us 5945-01-291-0734
Electromagnetic Relay 5945012910734 012910734 Subscribe to View Vendor Details... 12363092 RELAY
Restrictions 5945-01-291-0734
5945-01-291-0734 is a Electromagnetic Relay that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5945-01-291-0734
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5945-01-291-0734
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZBF
- US Navy (N9BN)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1998
- Belgium (ZB01)
- Effective Date:
- 11 May 2001
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Nov 1996
- Netherlands (ZN01)
- Effective Date:
- 1 Jun 1994
- Greece (ZU01)
- Effective Date:
- 1 Apr 2006
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Mar 2015
Approved Sources 5945-01-291-0734
- Part Number
- Manufacturer
- Status
- 12363092
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 12363092
- 045F6 - Rem Products Inc (Active)
- Secondary Buy
- Secondary Buy
- SX7EG10-3
- 81640 - Safran Power Usa, Llc (Active)
- Secondary Buy
- Secondary Buy
- SX7EG10-2
- 81640 - Safran Power Usa, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 12361483
- 19207 - U S Army Tank Automotive Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5945012910734
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5945-01-291-0734
- Characteristic
- Specifications
- FIIG
- Specifications
- A03300
- Duty Type [APNP]
- Continuous
- End Item Identification [AGAV]
- 2350-01-277-5770 Howitzer, Medium, M-109 Series; Field Artillery Ammunition Support Vehicle (Faagv) (M992)
- Arc Quenching Method [APNQ]
- Air
- Case Material [ADTV]
- Metal
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 3.990 Inches Minimum Single Mounting Facility And 4.010 Inches Maximum Single Mounting Facility
- Coil Quantity [APCN]
- 1
- Criticality Code Justification [CRTL]
- Feat
- Fragility Factor [AFJN]
- Moderately Rugged
- Mounting Facility Pattern [CQYJ]
- In-Line Single Mounting Facility
- Mounting Facility Type And Quantity [AXHR]
- 2 Unthreaded Hole Single Mounting Facility
- Operating Voltage Rating And Type At Specified Temp [CSXF]
- 24.0 Volts Dc 25 Deg Celsius Single Winding
- Main Contact Load Current Rating At Maximum Rated Voltage [CTDL]
- 100.0 Amperes Dc Resistive Load
- Main Contact Maximum Voltage Rating In Volts [CWAB]
- 28.0 Dc
- Purpose For Which Designed [AKSL]
- General
- Overall Height [ABKW]
- 4.585 Inches Minimum And 4.625 Inches Maximum
- Overall Length [ABHP]
- 4.510 Inches Minimum And 4.530 Inches Maximum
- Overall Width [ABMK]
- 2.730 Inches Minimum And 2.750 Inches Maximum
- Special Features [FEAT]
- Weapon System Essential
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.281 Inches Minimum Single Mounting Facility And 0.312 Inches Maximum Single Mounting Facility
- Winding Quantity [AKDX]
- 1
- Storage Type [BBRG]
- General Purpose Warehouse
- Terminal Type And Quantity [TTQY]
- 1 Connector, Receptacle All Functions
DLA Procurement Analysis 5945-01-291-0734
Management Data 5945-01-291-0734
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5945-01-291-0734
Freight Information 5945-01-291-0734
5945-01-291-0734 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5945-01-291-0734 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5945-01-291-0734 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5945-01-291-0734 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5945-01-291-0734 is not classified as a special type of cargo when transported by water. 5945-01-291-0734 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5945-01-291-0734
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.5" H x 2.0" W x 4.6" L
- --
- --
- --
- Any Suitable Process
- 4.5" H x 2.0" W x 4.6" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 5945-01-291-0734 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
