5945-01-243-6196

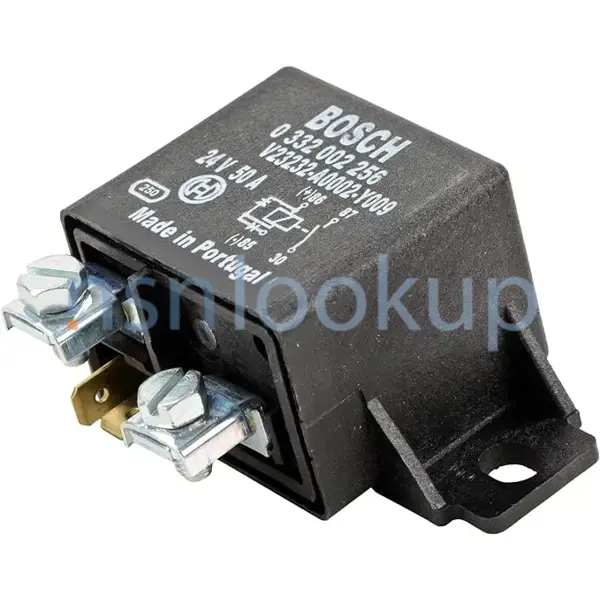

Electromagnetic Relay
5945012436196 012436196 791 0071 0083 12422235 0 332 002 256 0-332-002-256 A 332 034 124 001 542 64 19
A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING. View more Electromagnetic Relay
Managed by United States
NSN Created on 30 Oct 1986
Data Last Changed
November 2023
November 2023
NATO Update Count
14
14
NATO Data Quality
Marketplace 5945-01-243-6196
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5945-01-243-6196 5+ Documents (More...)
791 0071 0083 12422235 0 332 002 256 0-332-002-256 A 332 034 124 001 542 64 19 A relay which is actuated
RQST NE Updated Every Day 5945-01-243-6196 RQST NE Updated Every Day 5945-01-243-6196 RQST Updated
Every Day 5945-01-243-6196 RQST NE Related Documents 5945-01-243-6196 5+ Documents ( More... ) https
RQST NE Updated Every Day 5945-01-243-6196 RQST NE Updated Every Day 5945-01-243-6196 RQST Updated
Every Day 5945-01-243-6196 RQST NE Related Documents 5945-01-243-6196 5+ Documents ( More... ) https
Upgrade 5945-99-312-4186Electromagnetic Relay5945993124186 993124186 128/0332002256 G406/8606/100 0 332 002 256
123041535 0001536834 0332002256 1056202 630120177 390 02 0011 6301201 390 23 0022 5633 4122-024 0 332 002 256
Upgrade 5945-99-312-4186Electromagnetic Relay5945993124186 993124186128/0332002256G406/8606/100 0 332 002 256
123041535 0001536834 0332002256 1056202 630120177 390 02 0011 6301201 390 23 0022 5633 4122-024 0 332 002 256
Upgrade 5945-99-312-4186Electromagnetic Relay5945993124186 993124186128/0332002256G406/8606/100 0 332 002 256
day Upgrade your Account Upgrade 5945-01-548-7363Electromagnetic Relay5945015487363 015487363 0 332 002 256
Upgrade 5945-99-312-4186Electromagnetic Relay5945993124186 993124186 128/0332002256 G406/8606/100 0 332 002 256
123041535 0001536834 0332002256 1056202 630120177 390 02 0011 6301201 390 23 0022 5633 4122-024 0 332 002 256
Upgrade 5945-99-312-4186Electromagnetic Relay5945993124186 993124186 128/0332002256 G406/8606/100 0 332 002 256
123041535 0001536834 0332002256 1056202 630120177 390 02 0011 6301201 390 23 0022 5633 4122-024 0 332 002 256
for $1 a day Upgrade your Account Upgrade 5945-01-503-4128Hybrid Relay5945015034128 015034128 0 332 002 256
day Upgrade your Account Upgrade 5945-01-548-7363Electromagnetic Relay5945015487363 015487363 0 332 002 256
day Upgrade your Account Upgrade 5945-01-548-7363Electromagnetic Relay5945015487363 015487363 0 332 002 256
day Upgrade your Account Upgrade 5945-01-548-7363Electromagnetic Relay5945015487363 015487363 0 332 002 256
day Upgrade your Account Upgrade 5945-01-548-7363Electromagnetic Relay5945015487363 015487363 0 332 002 256
123041535 0001536834 0332002256 1056202 630120177 390 02 0011 6301201 390 23 0022 5633 4122-024 0 332 002 256
Upgrade 5945-99-312-4186Electromagnetic Relay5945993124186 993124186 128/0332002256 G406/8606/100 0 332 002 256
day Upgrade your Account Upgrade 5945-01-548-7363Electromagnetic Relay5945015487363 015487363 0 332 002 256
Upgrade 5945-99-312-4186Electromagnetic Relay5945993124186 993124186 128/0332002256 G406/8606/100 0 332 002 256
day Upgrade your Account Upgrade 5945-01-548-7363Electromagnetic Relay5945015487363 015487363 0 332 002 256
Restrictions 5945-01-243-6196
5945-01-243-6196 is a Electromagnetic Relay that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5945-01-243-6196
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5945-01-243-6196
- US Army (A918)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZ
- US Air Force (FXGX)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Canada (ZC01)
- Effective Date:
- 1 May 2004
Approved Sources 5945-01-243-6196
- Part Number
- Manufacturer
- Status
- 0-332-002-256
- Manufacturer
- 79SS9 - Robert Bosch North America (Obsolete)
- Original Design
- Original Design
- 12422235
- 076M6 - Bae Systems Land & Armaments L.P. (Active)
- Secondary Buy
- Secondary Buy
- 0 332 002 256
- 55683 - Wheeler Fleet Solutions, Co. (Active)
- Secondary Buy
- Secondary Buy
- 12422235
- 0FW39 - Bae Systems Tactical Vehicle Systems (Active)
- Secondary Buy
- Secondary Buy
- A 332 034 124
- D8046 - Daimler Ag (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 791 0071 0083
- S7622 - Steyr Nutzfahrzeuge Ag (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 001 542 64 19
- 64678 - Daimler Truck North America Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 12422235
- 19207 - U S Army Tank Automotive Command (Active)
- Vendor Drawing
- Vendor Drawing
- 791 0071 0083
- 2172N - Man Truck & Bus Oesterreich Gesmbh (Active)
- Advisory Reference
- Advisory Reference
- A 332 034 124
- CN7Z7 - Mercedes-Benz Ag (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5945-01-243-6196
- Characteristic
- Specifications
- FIIG
- Specifications
- A03300
- Nonpile-Up Main Contact Arrangement [CRNG]
- 1 Pole, Single Throw, Normally Open, Momentary Action
- Auxiliary Contact Maximum Voltage Rating In Volts [CSQC]
- 30.0 Dc
- Main Contact Load Current Rating At Maximum Rated Voltage [CTDL]
- 50.0 Amperes Dc Resistive Load
- Main Contact Load Current Rating At Maximum Rated Voltage [CTDL]
- 40.0 Amperes Dc Motor Load
- Coil Quantity [APCN]
- 1
- Winding Quantity [AKDX]
- 1
- Winding Dc Resistance Rating [APNA]
- 130.0 Ohms Nominal Single Winding
- Operating Voltage Rating And Type At Specified Temp [CSXF]
- 24.0 Volts Dc 25 Deg Celsius Single Winding
- Terminal Type And Quantity [TTQY]
- 4 Screw All Functions
- Duty Type [APNP]
- Continuous
- Overall Length [ABHP]
- 75.0 Millimeters Nominal
- Overall Width [ABMK]
- 52.0 Millimeters Nominal
- Overall Height [ABKW]
- 36.0 Millimeters Nominal
- Mounting Facility Type And Quantity [AXHR]
- 2 Threaded Bushing Single Mounting Facility
- Features Provided [CBBL]
- Coil Voltage Suppression
Weapon Systems (WSDC) 5945-01-243-6196
DLA Procurement Analysis 5945-01-243-6196
- Last Stock Position:
- 9 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5945-01-243-6196
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 2920
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 2920
- X
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5945-01-243-6196
Freight Information 5945-01-243-6196
5945-01-243-6196 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061360. A Sub NMFC of X. It has a NMFC Description of COILS/YOKES FOCUS/DEFLECTION TV. 5945-01-243-6196 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 5945-01-243-6196 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34430 which rates the freight between FCL and LCL. 5945-01-243-6196 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5945-01-243-6196 is not classified as a special type of cargo when transported by water. 5945-01-243-6196 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5945-01-243-6196
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 5945-01-243-6196 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M119V1423
- 07 Nov 2018
- Subscribe
- 248
- Subscribe
- Subscribe
- Subscribe
- SPE7M116V4145
- 15 Dec 2015
- Subscribe
- 358
- Subscribe
- Subscribe
- Subscribe
- SPE7M115VG056
- 11 Aug 2015
- Subscribe
- 105
- Subscribe
- Subscribe
- Subscribe
- SPE7M515M8491
- 21 May 2015
- Subscribe
- 102
- Subscribe
- Subscribe
- Subscribe
- SPE7M515M0496
- 09 Oct 2014
- Subscribe
- 85
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5945-01-243-6196 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
