5945-01-225-8873

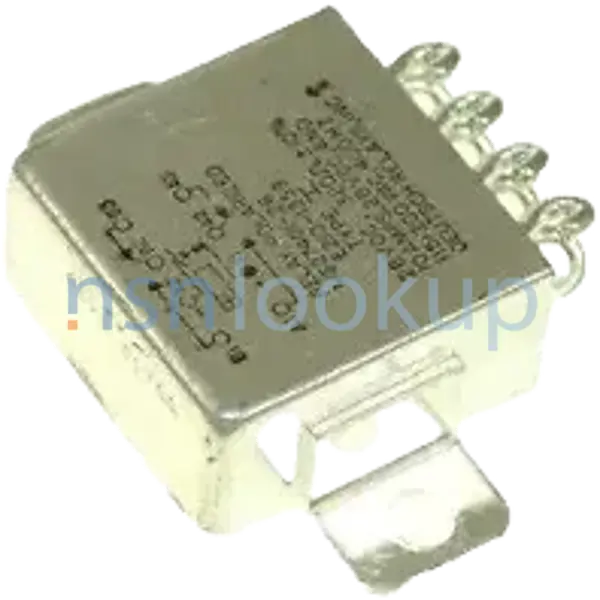

Electromagnetic Relay
5945012258873 012258873 MIL-PRF-83536/6 Q531541312 M6106/28-020M M83536/6-021M M6106/28-020X MIL-R-83536/6 M6106/28-020 10132675
A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING. View more Electromagnetic Relay
Managed by United States
NSN Created on 8 Feb 1986
Data Last Changed
February 2024
February 2024
NATO Update Count
34
34
NATO Data Quality
Marketplace 5945-01-225-8873
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
M6106/28-020 RELAY,ELECTROMAGNETIC 39 EA NS
MIL-PRF-83536/6 RELAY,ELECTROMAGNETIC 138 EA NS
M6106/28-020X RELAY,ELECTROMAGNETIC 48 EA NS
M6106/28-020M RELAY,ELECTROMAGNETIC 40 EA NS
M83536/6-021M RELAY,ELECTROMAGNETIC 39 EA NS
Updated Every Day 5945-01-225-8873 RQST NE
Updated Every Day 5945-01-225-8873 RQST
Updated Every Day 5945-01-225-8873 RQST NE
Related Documents 5945-01-225-8873 5+ Documents (More...)
MIL-PRF-83536/6 Q531541312 M6106/28-020M M83536/6-021M M6106/28-020X MIL-R-83536/6 M6106/28-020 10132675
EA NS Request Quotation M6106/28-020X RELAY,ELECTROMAGNETIC 48 EA NS Request Quotation M6106/28-020M
M6106/28-020X RELAY,ELECTROMAGNETIC 1 EA NS Request Quotation M83536/6-021M RELAY,ELECTROMAGNETIC 6 EA
EA NS Request Quotation M6106/28-020X RELAY,ELECTROMAGNETIC 48 EA NS Request Quotation M6106/28-020M
M6106/28-020X RELAY,ELECTROMAGNETIC 1 EA NS Request Quotation M83536/6-021M RELAY,ELECTROMAGNETIC 6 EA
M6106/28-020M RELAY,ELECTROMAGNETIC 40 EA NS Request Quotation M83536/6-021M RELAY,ELECTROMAGNETIC 39
EA NS Request Quotation M6106/28-020 RELAY,ELECTROMAGNETIC 39 EA NS Request Quotation M6106/28-020X
M6106/28-020X RELAY,ELECTROMAGNETIC 1 EA NS Request Quotation M83536/6-021M RELAY,ELECTROMAGNETIC 6 EA
EA NS Request Quotation M6106/28-020 RELAY,ELECTROMAGNETIC 39 EA NS Request Quotation M6106/28-020X
M6106/28-020X RELAY,ELECTROMAGNETIC 1 EA NS Request Quotation M83536/6-021M RELAY,ELECTROMAGNETIC 6 EA
M83536/6-021L MIL-R-83536/6 10132695 A relay which is actuated by the effect of a magnetic field
/fsg-59/fsc-5945/us 5945-01-225-8873 Electromagnetic Relay 5945012258873 012258873 day Upgrade your
Account Upgrade 5945-01-225-8873Electromagnetic Relay5945012258873 012258873 MIL-PRF-83536/6 Q531541312
/fsg-59/fsc-5945/us 5945-01-225-8873 Electromagnetic Relay 5945012258873 012258873 day Upgrade your
Account Upgrade 5945-01-225-8873Electromagnetic Relay5945012258873 012258873 MIL-PRF-83536/6 Q531541312
180-2827 5945-00-060-0691 5945-01-158-3720 5945-00-259-6570 5945-00-438-0519 5945-01-352-5851 5945-01-225-8873
180-2827 5945-00-060-0691 5945-01-158-3720 5945-00-259-6570 5945-00-438-0519 5945-01-352-5851 5945-01-225-8873
Restrictions 5945-01-225-8873
5945-01-225-8873 is a Electromagnetic Relay that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5945-01-225-8873
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5945-01-225-8873
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZCTCL
- US Coast Guard (C911)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C007
- Supplementary Receivers:
- XH
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKEHD
- Finland (WF01)
- Effective Date:
- 1 Apr 2011
- Brazil (YA01)
- Effective Date:
- 1 Mar 2010
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Oct 2015
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Mar 2000
- Germany (ZG01)
- Effective Date:
- 1 May 2011
- Republic of Korea (ZH01)
- Effective Date:
- 1 Oct 2010
- United Kingdom (ZK01)
- Effective Date:
- 1 Jul 1997
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
- Denmark (ZS01)
- Effective Date:
- 3 Apr 1998
- Norway (ZT01)
- Effective Date:
- 1 Apr 2008
- Greece (ZU01)
- Effective Date:
- 1 May 2005
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5945-01-225-8873
- Part Number
- Manufacturer
- Status
- M83536/6-021M
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-PRF-83536/6
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- Q531541312
- S3092 - Rheinmetall Air Defence Ag (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- M6106/28-020X
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-R-83536/6
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- M6106/28-020
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10132675
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- M6106/28-020M
- 81349 - Military Specifications (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5945-01-225-8873
- Characteristic
- Specifications
- FIIG
- Specifications
- A03300
- Duty Type [APNP]
- Continuous
- End Item Identification [AGAV]
- Mrap - Rg-33
- Arc Quenching Method [APNQ]
- Air
- Case Material [ADTV]
- Metal
- Center To Center Distance Between Mounting Facilities Parallel To The Altitude Of An Isosceles Triangle [CSQJ]
- 1.078 Inches Nominal Single Mounting Facility
- Center To Center Distance Between Mounting Facilities Parallel To Width [ABKR]
- 0.500 Inches Nominal Single Mounting Facility
- Coil Quantity [APCN]
- 1
- Criticality Code Justification [CRTL]
- Feat
- Environmental Protection [ADZC]
- Hermetic
- Features Provided [CBBL]
- Coil Voltage Suppression And Polarized
- Fragility Factor [AFJN]
- Moderately Rugged
- Cubic Measure [CBME]
- 0.839 Cubic Inches
- Mounting Facility Pattern [CQYJ]
- Triangle Single Mounting Facility
- Mounting Facility Type And Quantity [AXHR]
- 3 Slotted Hole Single Mounting Facility
- Mounting Slot Width [ABTD]
- 0.133 Inches Nominal Single Mounting Facility
- Nonpile-Up Main Contact Arrangement [CRNG]
- 4 Pole, Double Throw, One Position Momentary
- Operating Voltage Rating And Type At Specified Temp [CSXF]
- 28.0 Volts Dc 25 Deg Celsius Single Winding
- Main Contact Load Current Rating At Maximum Rated Voltage [CTDL]
- 1.0 Amperes Ac And 1.0 Amperes Dc Lamp Load
- Main Contact Load Current Rating At Maximum Rated Voltage [CTDL]
- 2.0 Amperes Ac And 2.0 Amperes Dc Motor Load
- Main Contact Load Current Rating At Maximum Rated Voltage [CTDL]
- 3.0 Amperes Ac And 3.0 Amperes Dc Inductive Load
- Main Contact Load Current Rating At Maximum Rated Voltage [CTDL]
- 5.0 Amperes Ac And 5.0 Amperes Dc Resistive Load
- Main Contact Maximum Voltage Rating In Volts [CWAB]
- 115.0 Ac And 28.0 Dc
- Purpose For Which Designed [AKSL]
- General
- Overall Height [ABKW]
- 0.810 Inches Maximum
- Overall Length [ABHP]
- 1.280 Inches Maximum
- Overall Width [ABMK]
- 0.810 Inches Maximum
- Special Features [FEAT]
- Failure Rate Level 0.3 Percent
- Time Delay [CRXH]
- 0.006 Seconds Maximum Fixed Operate And Release Time
- Winding Dc Resistance Rating [APNA]
- 400.0 Ohms Nominal Single Winding
- Winding Quantity [AKDX]
- 1
- Specification/Standard Data [ZZZK]
- 81349-Mil-R-6106/28 Government Specification
- Storage Type [BBRG]
- General Purpose Warehouse
- Terminal Type And Quantity [TTQY]
- 14 Wire Hook All Functions
- Test Data Document [TEST]
- 81349-Mil-R-6106 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
