5945-01-222-9847
Electrical Solenoid
5945012229847 012229847 EB710-92102 EB700-60212
An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR. View more Electrical Solenoid
May 2023
6
Marketplace 5945-01-222-9847
Request a Quotation from participating marketplace vendors
Related Documents 5945-01-222-9847 4+ Documents (More...)
BUY NE FedMall Updated Every Day 5945-01-222-9847 RQST NE Updated Every Day 5945-01-222-9847 RQST
Updated Every Day 5945-01-222-9847 RQST NE Related Documents 5945-01-222-9847 4+ Documents ( More...
Electrical Solenoid 5945012229847 012229847 Upgrade your Account Upgrade 5945-01-222-9847Electrical
Solenoid5945012229847 012229847 EB710-92102 EB700 Documents 5945-01-222-9847 4+ Documents ( More...
Electrical Solenoid 5945012229847 012229847 NE Updated Every Day 5945-01-222-9847 RQST https https
Electrical Solenoid 5945012229847 012229847 Updated Every Day 5945-01-222-9847 RQST https https
Restrictions 5945-01-222-9847
5945-01-222-9847 is a Electrical Solenoid that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5945-01-222-9847
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5945-01-222-9847
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5945-01-222-9847
- Part Number
- Manufacturer
- Status
- EB710-92102
- Manufacturer
- 1R4E4 - Devlieg Bullard Ii Inc. (Active)
- Primary Buy
- Primary Buy
- EB710-92102
- 42337 - Acme-Cleveland Corp National Acme (Replaced)
- Original Design
- Original Design
- EB700-60212
- 42337 - Acme-Cleveland Corp National Acme (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5945-01-222-9847
- Characteristic
- Specifications
- FIIG
- Specifications
- A134A0

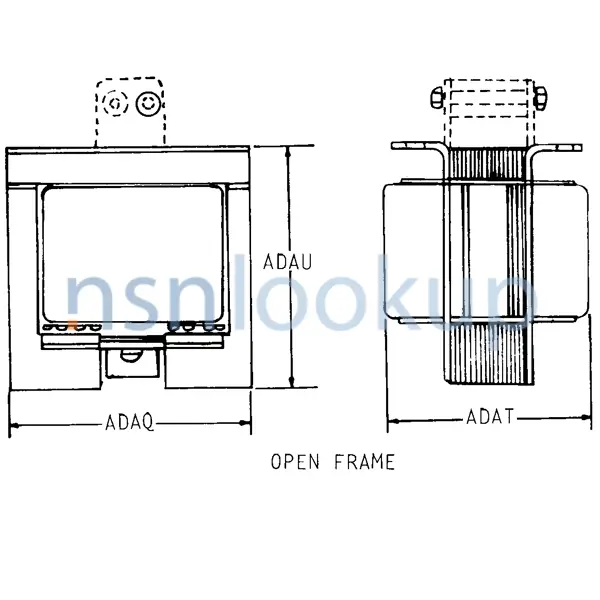

- Body Style [AAQL]
