5945-01-197-5376
Electrical Solenoid
5945011975376 011975376 407457 1502-24C2U1-B2 1500-24C2U1-B 1502-24C2U1-B
An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR. View more Electrical Solenoid
June 2023
7
Marketplace 5945-01-197-5376
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5945-01-197-5376 4+ Documents (More...)
Subscribe to View Vendor Details... 1500-24C2U1-B SOLENOID,ELECTRICAL 2 EA NS Request Quotation 407457
Subscribe to View Vendor Details... 1500-24C2U1-B SOLENOID 2 EA NS Request Quotation 1502-24C2U1-B2
$1 a day Upgrade your Account Upgrade 5945-01-197-5376Electrical Solenoid5945011975376 011975376 407457
https//www.nsnlookup.com /fsg-59/fsc-5945/us 5945-01-197-5376 Electrical Solenoid 5945011975376 011975376
JavaScript in your web browser . 5975-14-470-4050Electrical Equipment Rack5975144704050 144704050 407457
Electrical Solenoid 5945011975376 011975376 $1 a day Upgrade your Account Upgrade 5945-01-197-5376Electrical
407457-001 An open or inclosed frame structure designed to accommodate (but does not include) electrical
Electrical Solenoid 5945011975376 011975376 $1 a day Upgrade your Account Upgrade 5945-01-197-5376Electrical
Restrictions 5945-01-197-5376
5945-01-197-5376 is a Electrical Solenoid that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5945-01-197-5376
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5945-01-197-5376
- US Marine Corps (MC49)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 5945-01-197-5376
- Part Number
- Manufacturer
- Status
- 407457
- Manufacturer
- 28835 - Hobart Bros Co (Active)
- Primary Buy
- Primary Buy
- 1502-24C2U1-B2
- 78388 - Woodward Controls Inc. (Active)
- Secondary Buy
- Secondary Buy
- 1500-24C2U1-B
- 78388 - Woodward Controls Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1502-24C2U1-B
- 78388 - Woodward Controls Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5945-01-197-5376
- Characteristic
- Specifications
- FIIG
- Specifications
- A134A0
- Duty Type [APNP]
- Continuous
- Actuator Stroke Type [CNXT]
- Pull
- Body Height [ADAU]
- 1.800 Inches Nominal
- Body Length [ADAQ]
- 3.400 Inches Nominal
- Body Width [ADAT]
- 2.500 Inches Nominal
- Center To Center Distance Between Mounting Facilities Parallel To Width [ABKR]
- 2.000 Inches Nominal And 2.000 Inches Nominal
- Current Rating [AXNP]
- 12.0 Amperes Nominal
- Energizing Stroke Maximum Length [CNYD]
- 1.000 Inches

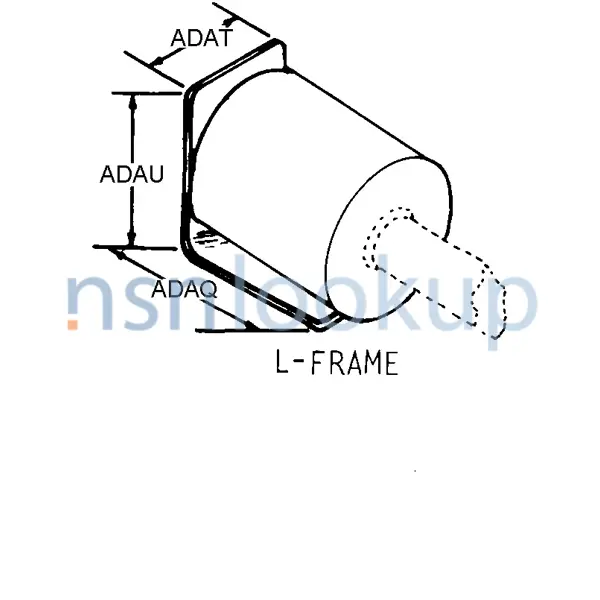

- Body Style [AAQL]
- L-Frame
- Mounting Facility Pattern [CQYJ]
- Two Position In-Line And Two Position In-Line
- Mounting Facility Type And Quantity [AXHR]
- 4 Unthreaded Hole
- Nominal Thread Size [CQJX]
- 0.250 Inches Power Takeoff Facility Stud
- Inclosure Type [AKNA]
- Fully Inclosed
- Linear Force Delivered [CNXW]
- 6.00 Pounds
- Magnetic Coil Quantity [APAF]
- 1
- Power Takeoff Connection Type [CNXX]
- External Threads
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.270 Inches Nominal
- Voltage Rating In Volts [ASXH]
- 24.0 Dc Nominal
- Terminal Location [APXH]
- End Opposite Actuator
- Terminal Type And Quantity [TTQY]
- 2 Screw
- Thread Class [AAJD]
- 2A Power Takeoff Facility Stud
- Thread Series Designator [THSD]
- Unf Power Takeoff Facility Stud
- Thread Quantity Per Inch [CMLP]
- 28 Power Takeoff Facility Stud
DLA Procurement Analysis 5945-01-197-5376
Management Data 5945-01-197-5376
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5945-01-197-5376
Freight Information 5945-01-197-5376
5945-01-197-5376 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063100. A Sub NMFC of X. It has a NMFC Description of SOLENOIDS/PARTS W/WO ARMATURES. 5945-01-197-5376 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35185 which rates the freight between FCL and LCL. 5945-01-197-5376 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5945-01-197-5376 is not classified as a special type of cargo when transported by water. 5945-01-197-5376 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
