5945-01-158-3720

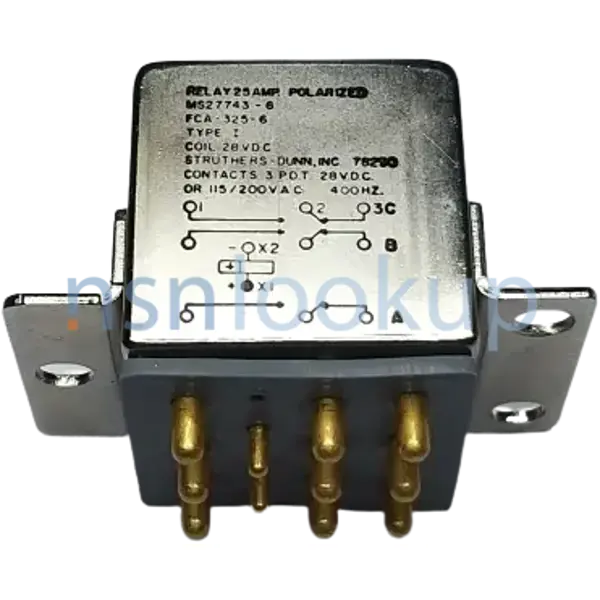

Electromagnetic Relay
5945011583720 011583720 MIL-PRF-6106 MS27743-12 MS27743-6 MIL-R-6106 10132658
A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING. View more Electromagnetic Relay
September 2023
31
Marketplace 5945-01-158-3720
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5945-01-158-3720 5+ Documents (More...)
MIL-R-6106 RELAY,ELECTROMAGNETIC 11 EA NS Request Quotation MIL-PRF-6106 RELAY,ELECTROMAGNETIC 11 EA
-6106 RELAY 11 EA MIL-R https/ MIL-R -6106 RELAY MIL-PRF-6106 https// MIL-PRF-6106 RELAY RELAY,ELECTROMAGNETIC
MS27743-6 RELAY,ELECTROMAGNETIC RQST NS Request Quotation Subscribe to View Vendor Details... 5945-01
/fsg-59/fsc-5945/us 5945-01-158-3720 Electromagnetic Relay 5945011583720 011583720 MS27743-12 MS27743
Restrictions 5945-01-158-3720
5945-01-158-3720 is a Electromagnetic Relay that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5945-01-158-3720
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5945-01-158-3720
- Finland (WF01)
- Effective Date:
- 1 Apr 2011
- Spain (YB01)
- Effective Date:
- 1 Jun 1999
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Australia (ZA01)
- Effective Date:
- 1 Sep 2001
- Belgium (ZB01)
- Effective Date:
- 1 Dec 2006
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Nov 2003
- Germany (ZG01)
- Effective Date:
- 1 Jan 1999
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jun 2000
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Oct 2010
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 May 2006
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5945-01-158-3720
- Part Number
- Manufacturer
- Status
- MS27743-12
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-PRF-6106
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MS27743-6
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-R-6106
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10132658
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 5945-01-158-3720
- Characteristic
- Specifications
- FIIG
- Specifications
- A03300
- Duty Type [APNP]
- Continuous
- Center To Center Distance Between Mounting Facilities Parallel To The Altitude Of An Isosceles Triangle [CSQJ]
- 1.396 Inches Minimum Single Mounting Facility And 1.446 Inches Maximum Single Mounting Facility
- Center To Center Distance Between Mounting Facilities Parallel To Width [ABKR]
- 0.625 Inches Nominal Single Mounting Facility
- Coil Quantity [APCN]
- 1
- Environmental Protection [ADZC]
- Hermetic
- Features Provided [CBBL]
- Polarized
- Mounting Facility Pattern [CQYJ]
- Triangle Single Mounting Facility
- Mounting Facility Type And Quantity [AXHR]
- 3 Slotted Hole Single Mounting Facility
- Mounting Slot Width [ABTD]
- 0.150 Inches Nominal Single Mounting Facility
- Nonpile-Up Main Contact Arrangement [CRNG]
- 3 Pole, Double Throw, One Position Momentary
- Operating Voltage Rating And Type At Specified Temp [CSXF]
- 28.0 Volts Dc 25 Deg Celsius Single Winding
- Main Contact Load Current Rating At Maximum Rated Voltage [CTDL]
- 10.0 Amperes Ac Motor Load And 10.0 Amperes Dc Motor Load
- Main Contact Load Current Rating At Maximum Rated Voltage [CTDL]
- 25.0 Amperes Ac Resistive Load And 25.0 Amperes Dc Resistive Load
- Main Contact Load Current Rating At Maximum Rated Voltage [CTDL]
- 5.0 Amperes Ac Lamp Load And 5.0 Amperes Dc Lamp Load
- Main Contact Maximum Voltage Rating In Volts [CWAB]
- 115.0 Ac And 28.0 Dc
- Overall Height [ABKW]
- 1.280 Inches Nominal
- Overall Length [ABHP]
- 1.718 Inches Maximum
- Overall Width [ABMK]
- 1.025 Inches Maximum
- Time Delay [CRXH]
- 0.015 Seconds Maximum Fixed Operate And Release Time
- Winding Dc Resistance Rating [APNA]
- 290.0 Ohms Nominal Single Winding
- Winding Quantity [AKDX]
- 1
- Specification/Standard Data [ZZZK]
- 96906-Ms27743-12 Government Standard
- Terminal Type And Quantity [TTQY]
- 11 Pin All Functions
- Test Data Document [TEST]
- 81349-Mil-R-6106 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
Similar Supply Items to 5945-01-158-3720
Freight Information 5945-01-158-3720
5945-01-158-3720 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5945-01-158-3720 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5945-01-158-3720 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5945-01-158-3720 is not classified as a special type of cargo when transported by water. 5945-01-158-3720 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5945-01-158-3720
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- ASTM-D4727, Fiberboard used as Pads, Cells, Die-cuts or Sleeves
- --
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
- --
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
